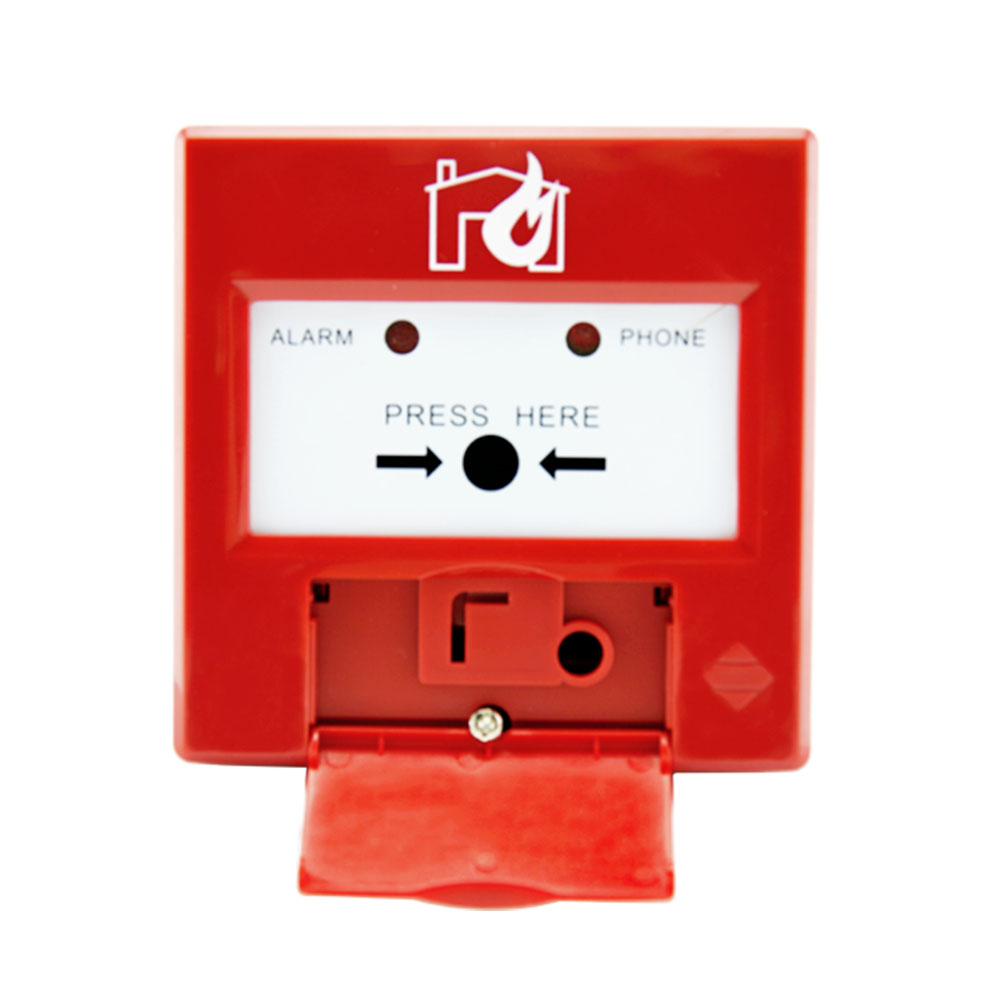

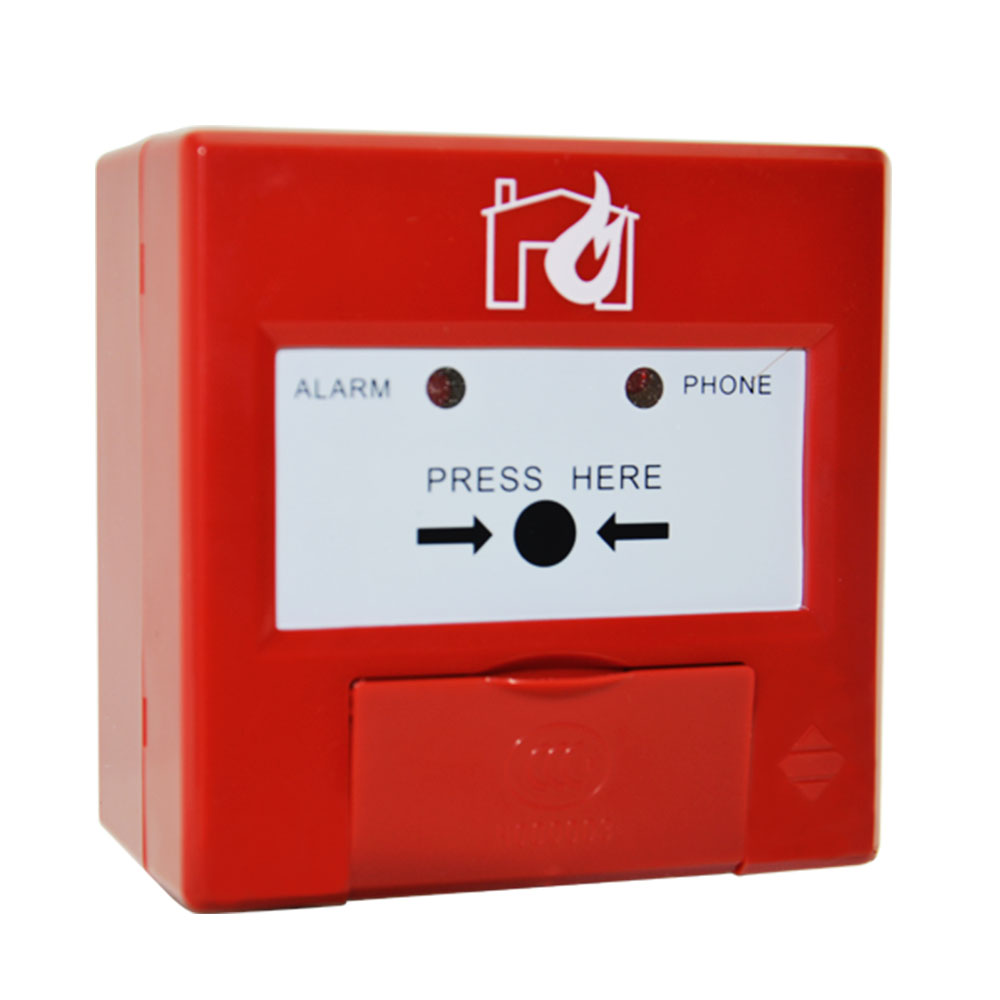

best performance manual release station with an intelligent two-bus control panel
Product features
1:It can realize complete electronic coding and in situ rewriting with help of a coder.
2:Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
3: It is designed with a two-wire fire telephone jack and is therefore more applicable to engineering application
4:Designed with passive output contacts, it can control other external equipment directly through an intermediate relay.
5:The pressing sheet on the manual call point will not get crushed after it is pressed, but can be reset by a special tool, so it can be used repeatedly
Technical parameters
| 1. Executive standard: GB19880-2005 |
| 2. Operating voltage: 24V (pulse modulation) |
3. Operating current: <300uA (in the monitoring status); <2mA (in the action status) |
| 4. Output contact: Normally open contact; capacity: 0.1A/30VDC |
| 5. Weight: About 120g |
| 6. Wiring method: nonpolar two-bus system (L1, L2) |
7. Operating environment: Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃±2℃, without condensation) |
8. Coding method: It can realize online coding with the help of a coder and without the necessity of disassembling the bus Address codes 1 to 324 are available for selection. |
9. Telephone jack: Two-wire fire telephone jack (equipped with a standard 6.3 single-track audio connector). |
10. Starting part: A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special tool after being pressed. |
| 11. Starting mode: Press the pressing sheet manually. |
12. Indicator: The red ALARM indicator will blink in the inspection status or remain lit in the alarm status; the PHONE indicator will blink when a fire ,telephone loop is connected, otherwise it will be out. |
| 13. Matched host machine: fire alarm control panel (such as AW-AFP2188) |
