Product Summary![]()

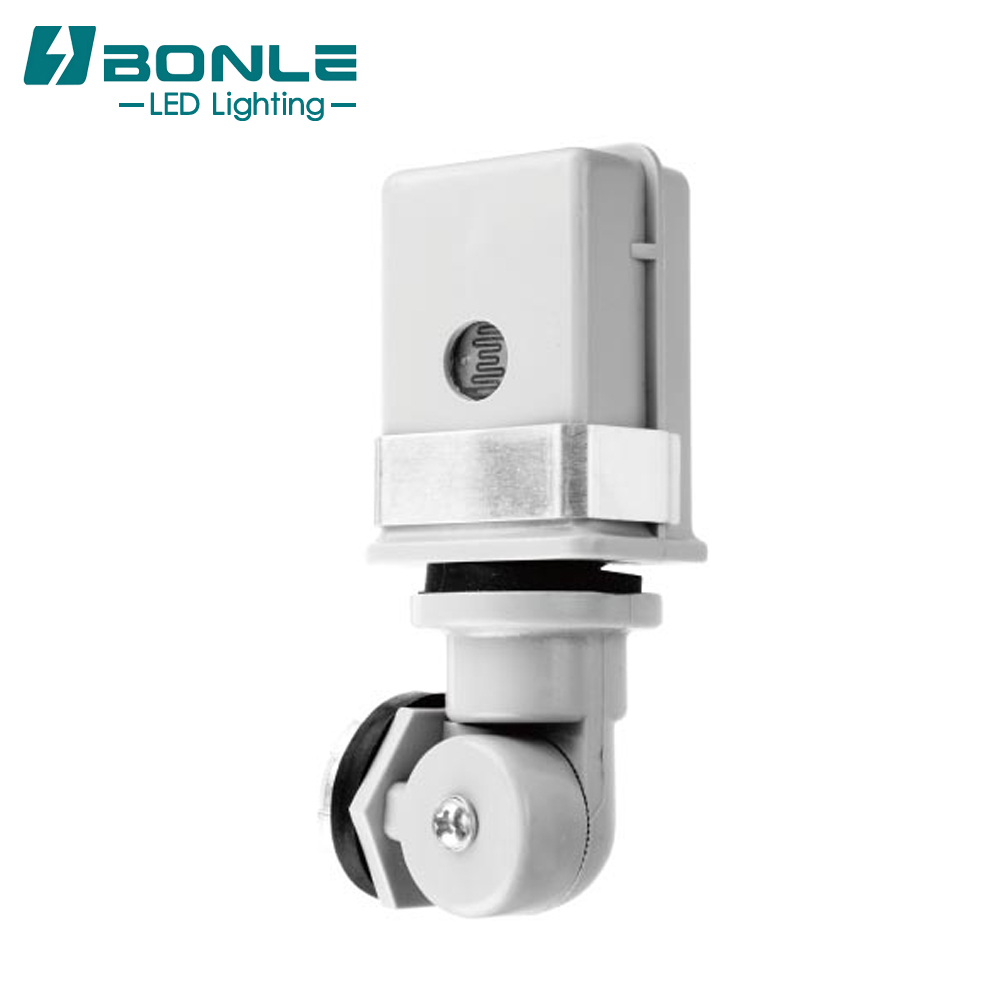

The photoelectric switch BN-PC118A series is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.
This product is designed on the basis of electrical heating structure that provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning during the night time. A temperature compensator system provides consistent performance regardless of the ambient temperature.
BN-PC118A series is convenient direction adjustment after installation once an additional swivel is applied..
Installation & Operational Instructions
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.
Wire according to the diagram in right hand.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night..
Initial Testing
It is normal for the SWITCH to take several minutes to turn off when first installed.
To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes..
Initial Testing
| Model | BN-PC118A | BN-PC118B |
| Rated Voltage | 120VAC, 50/60Hz | 200-240VAC, 50/60Hz |
| Rated Loading | 1800W Tungsten 1100VA Ballast | |
| Power Consumption | 1.5VA | |
| On/Off Levels | 10~20Lx On (Dusk) 30~60Lx Off (Dawn) | |
| Ambient Temperature | _40℃ ~ +70℃ | |
| Related Humidity | 0.95 | |
| Body Meas. | 41(wide) x 32(depth) x 72(height)mm | |
| Swivel Meas. | 65(L) x 35(Dia. Max.)mm; 180 o | |
| Lead Specs. | AWM3321, AWG#16 L | |
| ead Length | 150mm or Customer request | |
| Approx. | Weight 55g (Body); 20g (Swivel | |
