Application
Widely used in various fields of the air force,civilian airports and obstacle free airspace,helipads,iron tower,chimney,ports,wind power plants,bridge and city high-rise building where require aviation Warning lights.

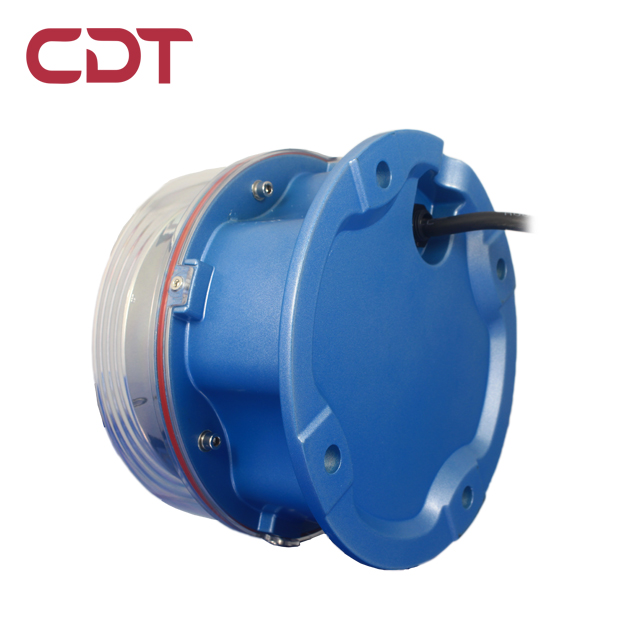

Key Feature of CK-13 AC
- Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 95%, quite high impact resistance and fits the bad environment very well.
- House of the light is made of urther; aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion;
Using parabolic reflector optical design, range further; - Light source adopts high quality LED, low power consumption,long lifespan, high brightness;
- Based on the single chip computer control, automatic identification sync signal, do not distinguish
the main light and auxiliary light, and also could be controlled by the controller; - Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the
damage by error installation caused; - Used the photosensitive probe fit for the natural light spectrum curve, automatic control light
intensity level; - The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times, Imax
15KA so that the light is suitable for a harsh environment; - Integral structure, protection level of Ip65;
- Ignitability rate UL-94V0, fit for all kinds of industrial situation;
Ref standard | ICAO Appendix 14 Type C Medium intensity obstruction light | ||
Light source | LED | Emitting color | RED |
Light intensity | 2000cd | Vertical beam spread | ≥3° |
Horizontal beam angle | 360° | Power consumption | ≤10W |
Operation voltage | AC90~AC260V | Voltage frequency | 50HZ/60HZ |
Lifespan | ≥100,000h | Working mode | / |
Light controlled sensitivity | 50~100 lux | Flashing frequency | Steady-on |
Operation temperature | -40℃~+55℃ | Operation Humidity
| 0%~90% |
IP Grade | IP65 | Net Weight | 3.5Kg |
| CK-16 C Structure |
|
