2meter 3meter 4meter 5meter 6meter Illumination Orange airport windsock wind vane

Click on the image to view the original image

Product：	views：52meter 3meter 4meter 5meter 6meter Illumination Orange airport windsock wind vane
Branch：	CM
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:39

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC90-AC260V

Lamp Power(W):: 30

Lamp Luminous Flux(lm):: 1

Lamp Luminous Efficiency(lm/w):: 1

CRI (Ra):: 1

Color Temperature(CCT):: Red

Beam Angle(°):: 360

IP Rating:: IP65

Certification:: BV, CCC, CE, SASO

Emitting Color:: Red and White

Lamp Body Material:: Stainless teel

Base Type:: LED

Light Source:: LED, LED

Place of Origin:: China

Brand Name:: CM

Height:: 2,3,4,5,6,7 meters

Light Lifespan:: ≥100,000hours

Top Obstruction lights:: Red

Top OBL Consumption:: 20w

Interior Windsock Frame:: White

Ingress Protect:: IP65

Surge Prevention:: 10kA(Interior of the lamp)

Environment Humidity:: 0%~95%

Environment Temperature:: -40℃ to +55℃

Supply Ability

Supply Ability:: 100 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden Case

Port: Shanghai

Lead Time:

Quantity(Sets)	1 - 50	>50
Est. Time(days)	15	To be negotiated

Product Description

Overview

a)Product Feature：Low power consumption, easy installation.

b)Application：The heliport windsock can indicate the wind direction of the final approach and takeoff, while the wind speed can be generally indicated. According to ICAO regulations, at least one wind vane must be set at each airport. Its installation position is guaranteed to be free from interference from nearby objects or the airflow blown by the rotor. It must be clearly visible on helicopters at least 200 meters away.

Safety Precautions

All connections must be wired in strict accordance with the wiring diagram, otherwise the fixture may be damaged. Please check the logo and instructions carefully.The power supply for this model controller is AC230V

When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.This product will have a temperature rise during operation, which is normalThis product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.

Product Paramenters

Key Feature

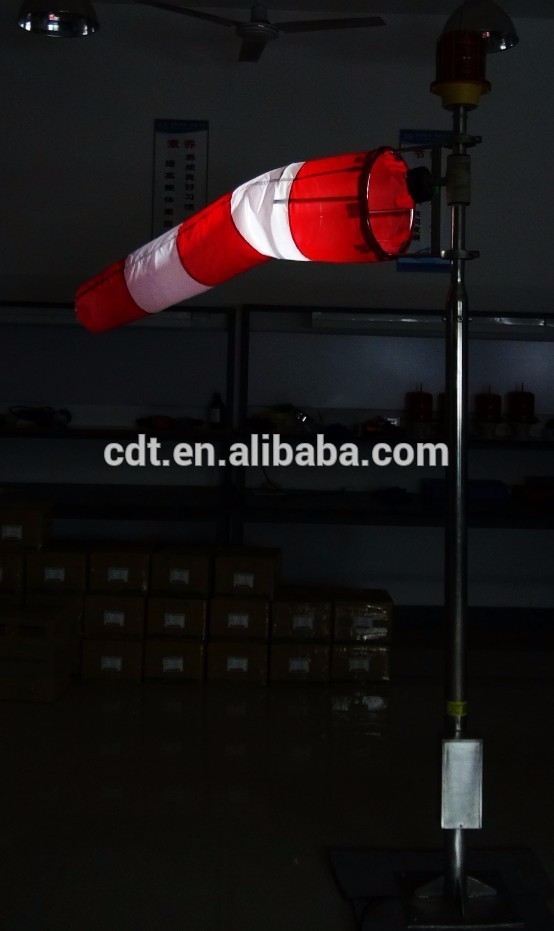

1.The windsock is an illuminated windsock that is a marker of wind and wind direction observed at various airports and can be used during the day and night.2.A red obstacle light was installed at the top to serve as a warning.3.A windsock light is installed to illuminate the windsock at night.4.A lightweight stainless steel windsock frame and a 360-degree rotating mechanism are mounted on the top of the wind vane.5.A windsock is installed on the windsock frame. The windsock is made of nylon and rainproof material with corrosion resistance and high temperature resistance. It has good UV resistance and long service life. The color is orange and white, divided into five sections, the initial section is orange, the diameter of the big end of the wind bag is 0.3 m, the diameter of the small end is 0.15 m, and the length is 1.2 m.6.The wind vane base rods are made of SUS304 stainless steel.7.The wind vane chassis is divided into fixed sides and can be placed on the side for easy installation and maintenance.

Overall	2meter,3meter,4meter,5meter,6meter
Light Source	LED
Light Lifespan	≥100,000hours
Top Obstruction lights	Red
Top Obstruction lights	32cd,Steady-on,FAA L810
Top OBL Consumption	≤20W
Interior Windsock Frame	White LED Spotlight
Ingress Protect	IP65
Surge Prevention	10kA（Interior of the lamp）
Installation Size	Checking the drawing sheet
Environment Humidity	0％～95％
Environment Temperature	-40℃ to +55℃
Wind Resistance	240km/h

Certifications

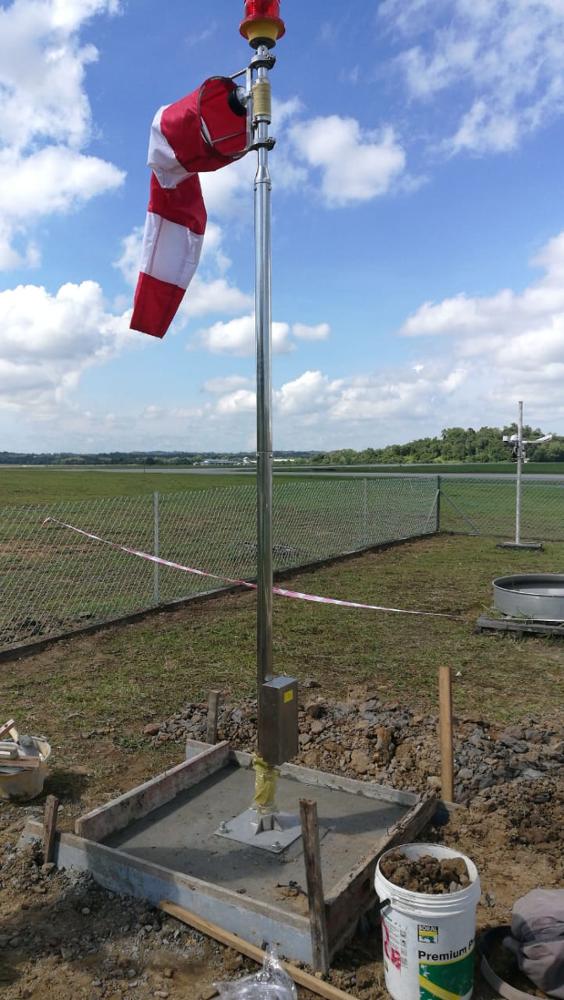

Project Samples

FAQ

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
