b)Application：The heliport windsock can indicate the wind direction of the final approach and takeoff, while the wind speed can be generally indicated. According to ICAO regulations, at least one wind vane must be set at each airport. Its installation position is guaranteed to be free from interference from nearby objects or the airflow blown by the rotor. It must be clearly visible on helicopters at least 200 meters away.
Product Description
Overview
Safety Precautions
All connections must be wired in strict accordance with the wiring diagram, otherwise the fixture may be damaged. Please check the logo and instructions carefully.The power supply for this model controller is AC230V
When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.This product will have a temperature rise during operation, which is normalThis product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the company will not guarantee it.
Product Paramenters
Key Feature

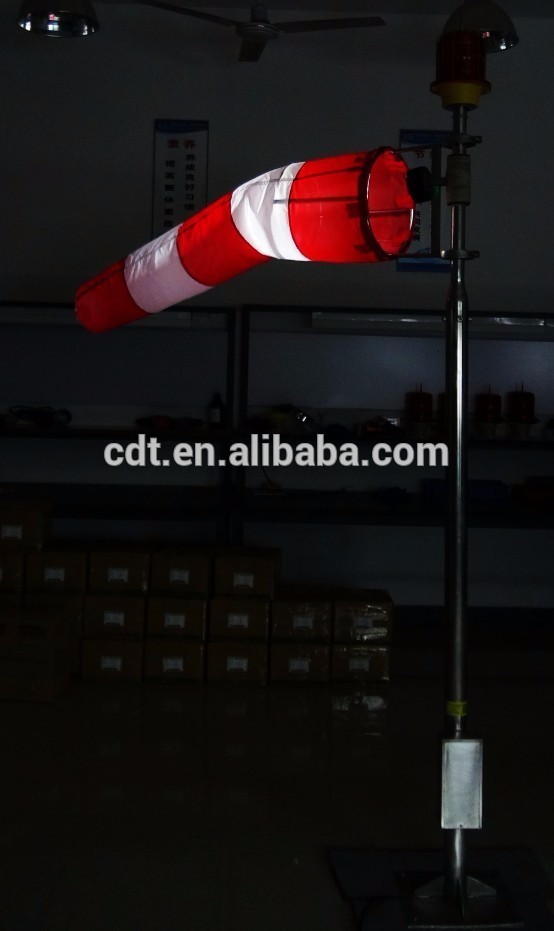

1.The windsock is an illuminated windsock that is a marker of wind and wind direction observed at various airports and can be used during the day and night.2.A red obstacle light was installed at the top to serve as a warning.3.A windsock light is installed to illuminate the windsock at night.4.A lightweight stainless steel windsock frame and a 360-degree rotating mechanism are mounted on the top of the wind vane.5.A windsock is installed on the windsock frame. The windsock is made of nylon and rainproof material with corrosion resistance and high temperature resistance. It has good UV resistance and long service life. The color is orange and white, divided into five sections, the initial section is orange, the diameter of the big end of the wind bag is 0.3 m, the diameter of the small end is 0.15 m, and the length is 1.2 m.6.The wind vane base rods are made of SUS304 stainless steel.7.The wind vane chassis is divided into fixed sides and can be placed on the side for easy installation and maintenance.
Overall | 2meter,3meter,4meter,5meter,6meter |
Light Source | LED |
Light Lifespan | ≥100,000hours |
Top Obstruction lights | Red |
Top Obstruction lights | 32cd,Steady-on,FAA L810 |
Top OBL Consumption | ≤20W |
Interior Windsock Frame | White LED Spotlight |
Ingress Protect | IP65 |
Surge Prevention | 10kA（Interior of the lamp） |
Installation Size | Checking the drawing sheet |
Environment Humidity | 0％～95％ |
Environment Temperature | -40℃ to +55℃ |
Wind Resistance | 240km/h |
Certifications
Project Samples
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
