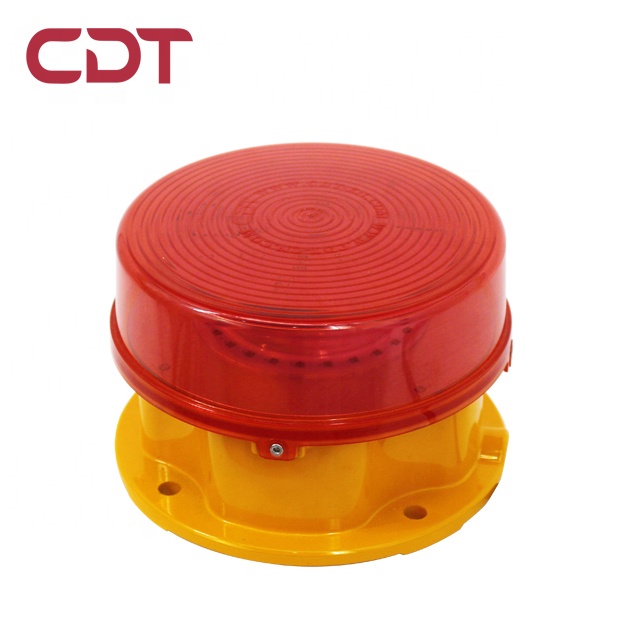

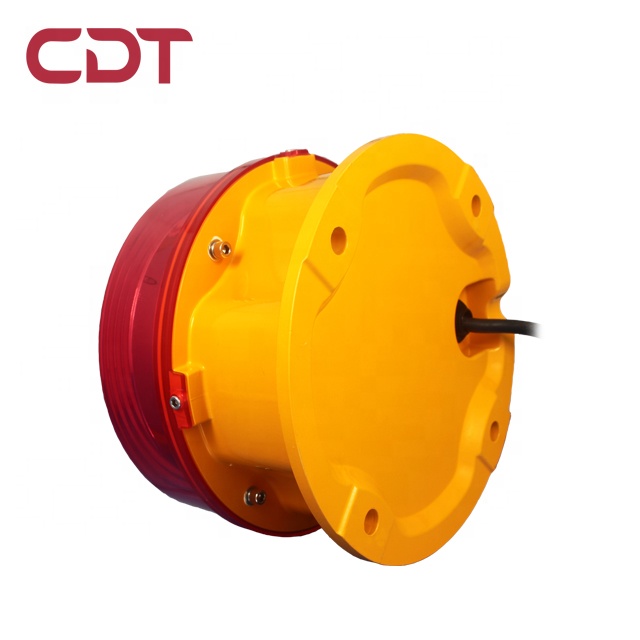

ICAO Certified L864 Red medium intensity 2000 cd aviation light on building

Click on the image to view the original image

Product：	views：4ICAO Certified L864 Red medium intensity 2000 cd aviation light on building
Branch：	CM
Type：	Aviation Obstruction Lights
Size：	24X24X18 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:39

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC90-AC260V

Lamp Power(W):: 10

Lamp Luminous Flux(lm):: 1

Lamp Luminous Efficiency(lm/w):: 1

CRI (Ra):: 1

Color Temperature(CCT):: Red

Beam Angle(°):: 360

IP Rating:: IP65

Certification:: BV, CCC, SASO

Emitting Color:: Red

Lamp Body Material:: Aluminum Alloy

Base Type:: Others

Light Source:: LED

Place of Origin:: China

Brand Name:: CM

Standard:: FAA,ICAO Standard

Operating voltage:: AC220V (Other available)

Power consumption:: ≤10W

Flashing frequency:: 20~60times/min

Light source:: Red LED

Light intensity:: 2000cd (±25%)

Lifespan:: >100,000hours

Beam angle:: 360

Method of synchronization:: GPS

Ingress protection:: IP65

Packaging & Delivery

Selling Units:: Single item

Single package size:: 24X24X18 cm

Single gross weight:: 3.5 kg

Package Type:: Carton

Lead Time:

Quantity(Piece)	1 - 50	>50
Est. Time(days)	15	To be negotiated

Application

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.Usually used above 45m or below 150m, could use with Medium intensity type B together.

Products Description

Key Feature

● Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.

● House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.

● Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.

● Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environmental protection.

● Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.

● Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.

● Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

● The circuit of the light has surge protection, so that the light is suitable for a harsh environment.

● Integral structure, protection level of Ip65.

● GPS synchronizing function is available.

Product Paramenters

Standard	FAA，ICAO Standard	Light source	Red LED
Operating voltage	AC220V (Other available)	Light intensity	At day: No working
Power consumption	≤30W	Light intensity		At night:2000cd Red Color
Flashing frequency	20～60times/min	Lifespan	＞100,000hours
Emitting color	Red	Method of synchronization	Same power supply voltage signal mode
Beam angle	360° horizontal beam angle	Method of synchronization		GPS
Beam angle		3° vertical beam spread	Ingress protection	IP65
Overall size(mm)	Ф210mm×140mm	Lightning protection level	10KA
Installation size(mm)	126mm×126 mm -4×M10	10Light controlled sensitivity	100Lux
Operating temperature	-40℃～55℃	Net weight	2.5 kg

Company Profile

Why Choose Us

Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
