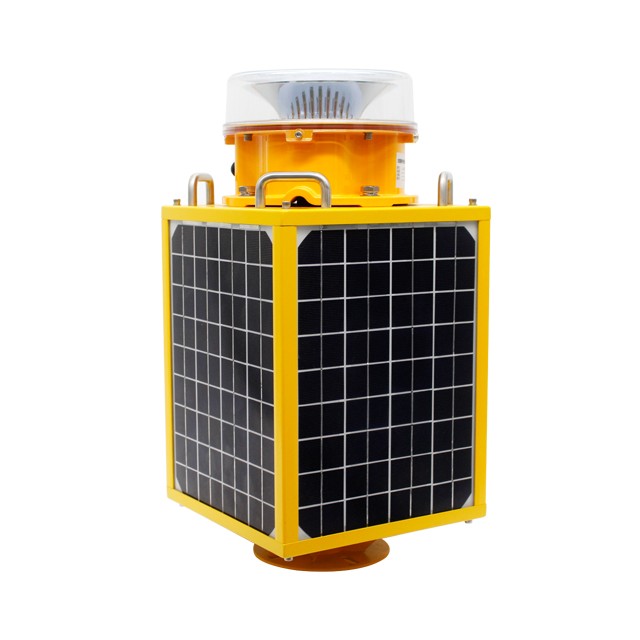

Mast Plant High Voltage Power Tower ICAO L864 FAA Red LED Medium Intensity Solar Power aircraft warning light china
Click on the image to view the original image
Product： views：5Mast Plant High Voltage Power Tower ICAO L864 FAA Red LED Medium Intensity Solar Power aircraft warning light china
Branch： CK
Type： Aviation Obstruction Lights, Type B,Obstruction beacon
Size： 31X31X58 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:39
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights, Type B,Obstruction beacon
Input Voltage(V):
DC12V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
1
Lamp Luminous Efficiency(lm/w):
1
CRI (Ra):
1
Color Temperature(CCT):
Red
Beam Angle(°):
360
IP Rating:
IP65
Certification:
BV, CCC, CE, SASO
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Others
Light Source:
LED
Place of Origin:
China
Brand Name:
CK
Color:
Red
Light Intensity:
2000cd
Application:
Electrical Power towers,Building,Telecom,mast etc
Standard:
ICAO,FAA
Lifespan:
100,000hours
Method of synchronization:
GPS
Flashing frequency:
20-60times/min
Lens material:
PC
Battery:
12V 24Ah

Packaging & Delivery

Selling Units:
Single item
Single package size:
31X31X58 cm
Single gross weight:
35.0 kg
Package Type:
Carton& Wooden Case
Lead Time:
Quantity(Piece)1 - 50>50
Est. Time(days)15To be negotiated
ICAO Certificate
Products Description
Application

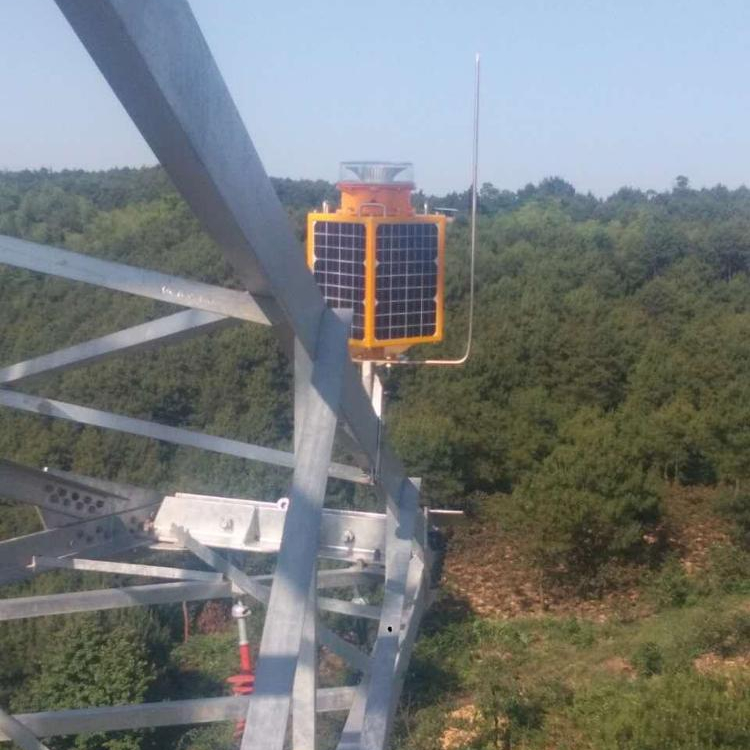

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.Usually used above 45m or below 150m buildings, could use alone, also could use with Low intensity OBL type B together.

Key Feature

●Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.●The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.●Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.●Based on the single chip computer micro power control, could control the charge and discharge precisely.●Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more than 20 years.●Using Fresnel lens optical design, range further.●Further use reflector optical design, visual distance, angle more accurately, thoroughly eliminate the light pollution.●Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.●Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.●The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times, Imax 15KA so that the light is suitable to harsh environment.●Integral structure, protection lever of Ip65.●Synchronizing GPS function is available.

Option Feature

●Infrared Lighting - NVG and NVIS compatibility using 850nm infrared (IR) LEDs.●Overvoltage Protection●Adjustable Mounting Pedestal - For mounting in variable mounting positions.
Product Paramenters
Operating voltage
DC12V
Power consumption
10W
Flashing frequency
20fpm,40fpm,60fpm
Light source
LED Red
Light intensity
2000cd
Lifespan
＞100,000hours
Beam angle
360° horizontal beam angle
3° vertical beam spread
Method of synchronization
GPS
Overall size(mm)
255mm×255mm×515mm
Installation size(mm)
Φ105mm-4×M10
Ingress protection
IP65
Operating temperature
-40℃～55℃
Net Weight
17kg
