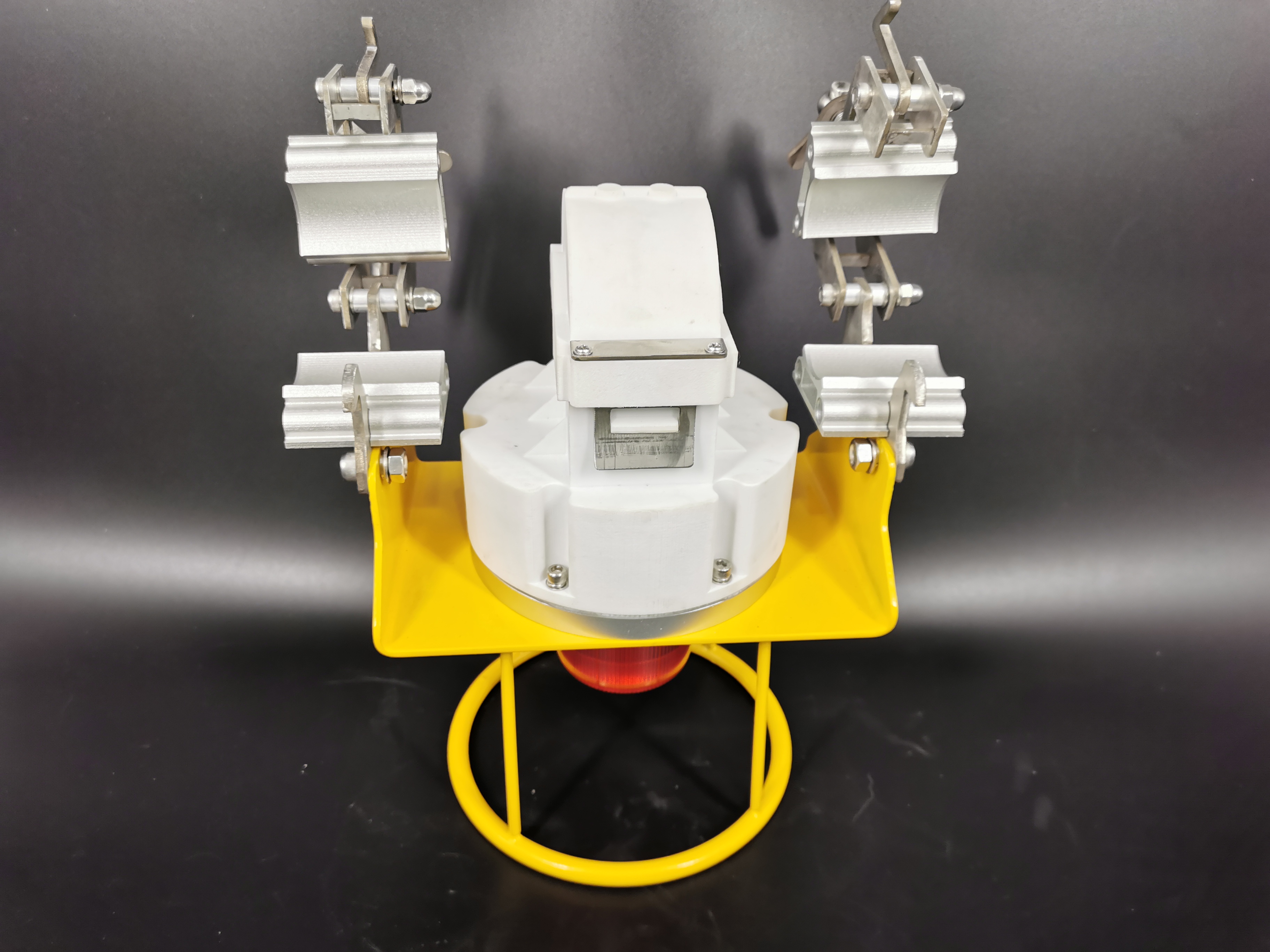

*Conductor marking lights are a particular type of aircraft warning lights designed for overhead power lines. They are visible at night, unlike overhead wire markers which rely on daylight.*Conductor marking lights increase night conspicuity of transmission line catenary wires near airports, heliports, across rivers. Lamps mark and light overhead power lines support structures (towers) as well as high voltage transmission line catenary wires.It is one assembly light with multi-LEDS technology. Dedicated to the beaconing of high voltage lines,it is a long life system (100,000 hours). Its compact design and light weight allow the quickest and easiest installation on the market.
Product Description
Description
WORKING PRINCIPLE
Farady's Law of induction involving Magnetic Flux flowing through a circuit which powers the warning light.
INDUCTIVE MAGNETIC DEVICE
The Warning light is powered by the magnetic field surrounding the power distribution wire and uses an electronic circuit integrated in a compact clamp-on warning light. The operating principle is that of a Rogowski coil, similar to a current transformer. This solution is usually intended for medium and high voltage lines up to 500 kV. However inductive coupling devices are able to work on any AC at 50 Hz or 60 Hz, from 50A up to 2000A.
ADVANTAGES
*Multi-LEDs
*Compact design
*Corona Extinction
*Internal Photosensor
*Easy way for mounting
*Natural stability based on specific nut
*Easy way for bulb replacement
*Light weight
*No maintenance
*3 years warranty
*Product completely filled with high voltage resin to avoid vibration effects Only 1 reference for all line voltage
FEATURES
1.LED light source adopts CREE LED beads, which has high luminous efficiency, long life and low energy consumption. The lampshade adopts imported anti-UV PC material, which is resistant to high temperature, impact and environmental applicability.
2.The frame of the clamp is made of 304 stainless steel(Inland outdoor use).If use it near to sea,It need change to 316 stainless steel.The Clamp is made of aluminum alloy.
3.The lamp body is designed separately from the mounting bracket, and the installation operation is simple and convenient. Maintenance free.
4.Suitable for high-voltage wire diameter range, from 15mm-40mm in diameter.
Application
1.Transmission Line
2.Overhead Power Line
3.Low,medium and high voltage lines

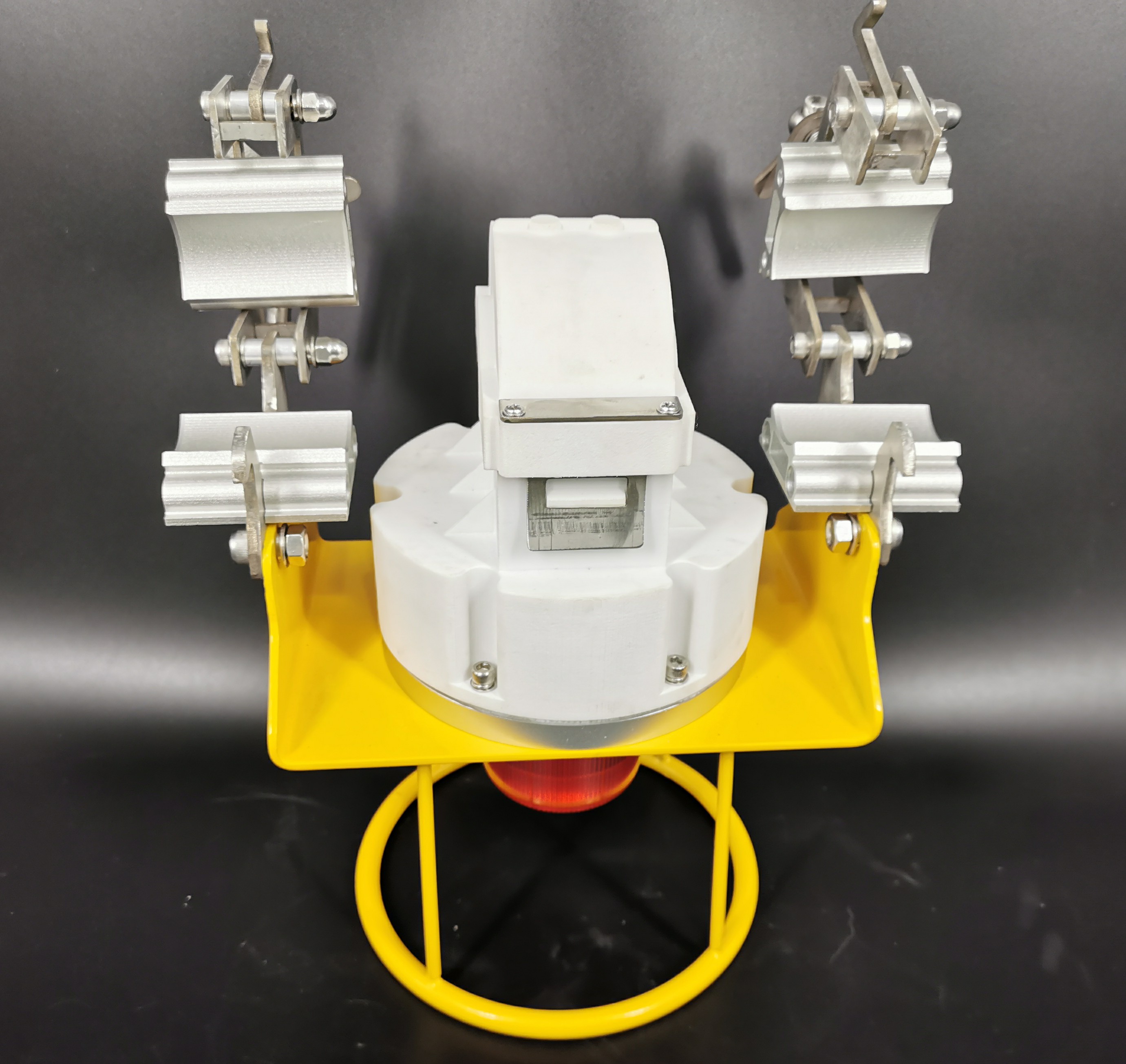

Details Images
Product Paramenters
LUMINOUS | MECHANICAL | ||||
Luminous Source | LED | Body Material | Stainless steel + aluminum alloy + PC+Rubber | ||
Type of Obstruction Light | Low Intensity,Type B | Lens Material | Polycarbonate | ||
Color | Red | Mounting | Anti-rotation nut | ||
Horizontal Beam | 360° | Height | 348mm | ||
Vertical Beam | 10° | Width | 145mm | ||
Luminous Intensity | 32cd | Length | 275mm | ||
Lifespan | 100,000 hours | PHOTOMETRIC STANDARD COMPLIANCE | |||
ELECTRICAL | ICAO | ANNEX 14, Volume I, Chap. 6 | |||
Voltage Lines | 1V to 500kV | ICAO TYPE B | Low intensity obstacle light | ||
Compatible Conductor Diameter | 15mm to 40mm | FAA | AC 150/5345-43 | ||
Functioning Temperature | -55℃ to + 55℃ | FAA Type L-810 | Low intensity obstacle light | ||
HV Current | 50A-2000A | Quality | ISO9001;2015 | ||
Operating Line Frequency | 50Hz/60Hz | ENVIRONMENTAL | |||
Photocell Activation | 50lux | Humidity | 100% | ||
Power Consumption | ＜5W | Frost | -60℃ | ||
Net Weight | 5.6kg | Wind Speed | 240Km/h | ||
