Application
Widely used in various fields of the air force,civilian airports and obstacle free airspace,helipads,iron tower,chimney,ports,wind power plants,bridge and city high-rise building where require aviation warning.
Products Description
Key Feature
● Using multiple optical design of parabolic curve, point of view, the more accurate visual range further.● Built-in LED constant current protection circuit, stable work.● UV - resistant PC material lamp shade, more than 95% transparency, adapt to different environment.● Flammability level of UL94V0, applicable to various industrial situations.● Using Fresnel lens optical design, range further.● Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and high efficiency.● The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.● 304 Stainless Steel Brackets● Integral structure, protection lever of IP65.
Compliance
● FAA L-810 Obstruction Light, FAA AC150/5345-43G Specification for Obstruction Lighting Equipment(photometrics only)● FAA L-810(F) Obstruction Light, FAA AC70/7460-1L Specification for Obstruction Lighting Equipment● ICAO Annex 14, Volume 1, Sixth Edition, July 2013, ‘Aerodrome Design and Operations’
Product Paramenters
Refer | ICAO ANNEX 14 Low Intensity Obstruction lights |
Light Source | LED |
Available Colors | Red as standard.Other Colors available on request, including IR complies with ICAO |
Horizontal Output(degrees) | 360 degree |
Vertical Divergence(degrees) | 10 degree |
Relfector Type | Signle LED Optic |
Light Intensity(cd) | 32cd |
Flash | Steady Light |
LED life Expectancy(hours) | >100,000 |
Operating Voltage | DC12V DC24V DC48V AC110V AC220V AC230V AC240 (Other Available) |
Power(W) | 3W |
Circuit Protection | Integrated |
Temperature Range | -40 to 80°C |
Body Material | ABS-UV Stabilized |
Lens Material | Bayer|Polycarbonate-UV Stabilized |
LED Beads | Cree Brand |
Lens Diameter(mm) | 173mm |

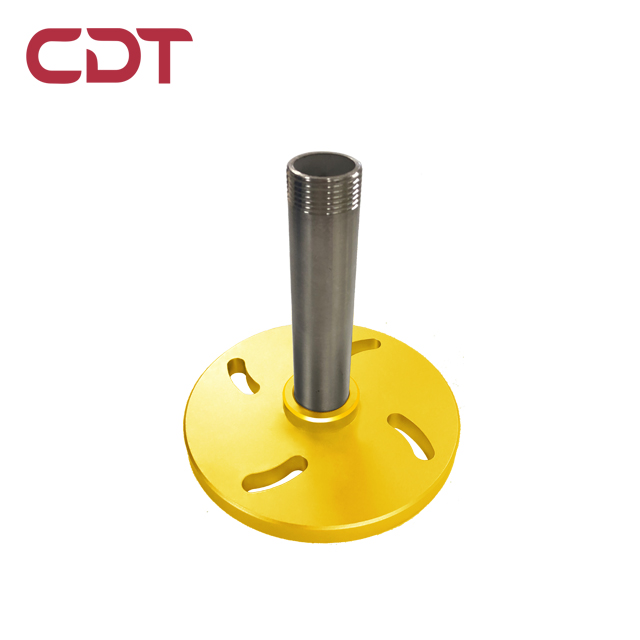

Mounting(inch) | G1" |
Height(mm) | 75mm |
Wind Speed | Up to 240Kph |
