ICAO Annex 14 Low Intensity Aviation Steady Burning Red Obstruction Lights LED Obstacle Lamp
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks

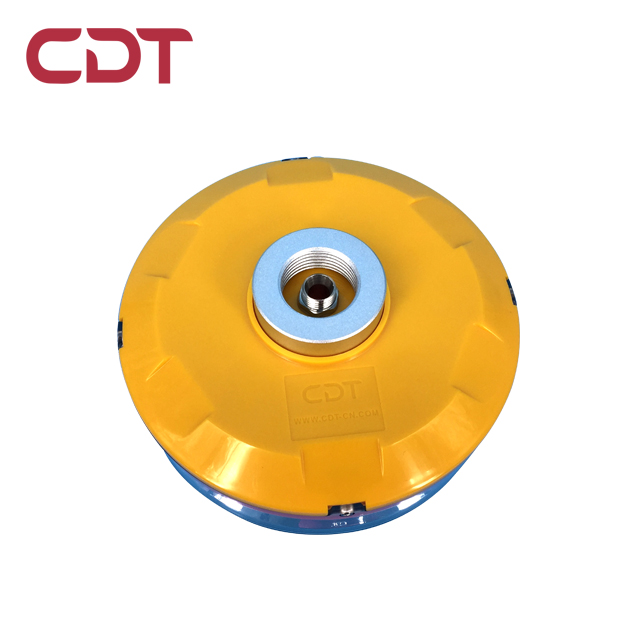

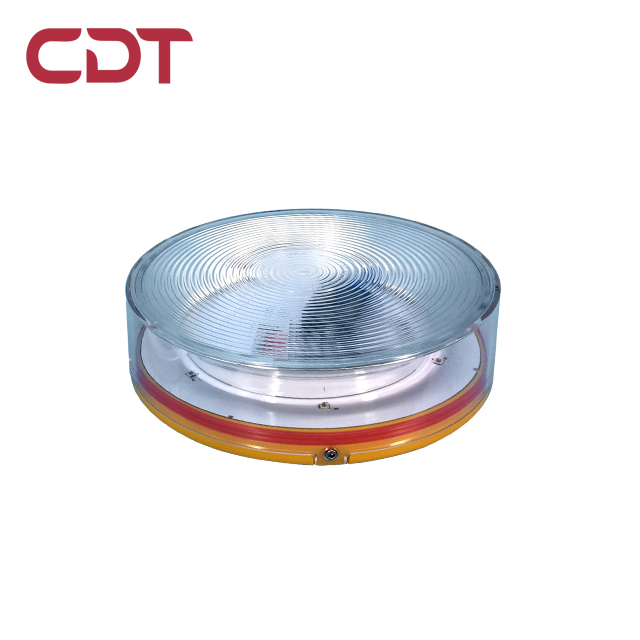

- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CM-11-B 32cd low intensity obstruction lamp | |
| Light Source | Bright LED | |
| Light Intensity | ≥32.5cd | |
| Life span | >100,000 hours | |
| Emitting color | Red | |
| Beam angle | 360° horizontal | |
| ≥3° vertical beam spread | ||
| Method of synchronization | Steady burning | |
| Overall size(mm) | 175mm×220mm | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 1.5KG | |
| Wind load | 80m/sec. |
- Specification
- Using multiple optical design of parabolic curve, point of view, the more
accurate visual range further. - Built-in LED constant current protection circuit, stable work.
Optical lens: PMMA materials with a transmittance of 93%. - UV - resistant PC material lamp shade, more than 95% transparency, adapt
to different environment. - Flammability level of UL94V0, applicable to various industrial situations.
| | | |
| CK-15 | CM-15 | CM-18 | CK-15-T |
| Red Flashing,2000cd,Medium Intensity Obstruction Light | White Flashing, 2000- 20000cd,midium intesntiy OB light | White Flahsing,2000-200000cd, High Intensity Obstruction Light | Solar-Powered Medium Intensity Obstruction Light |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
