Aviation Obstruction Light Box Controller
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks

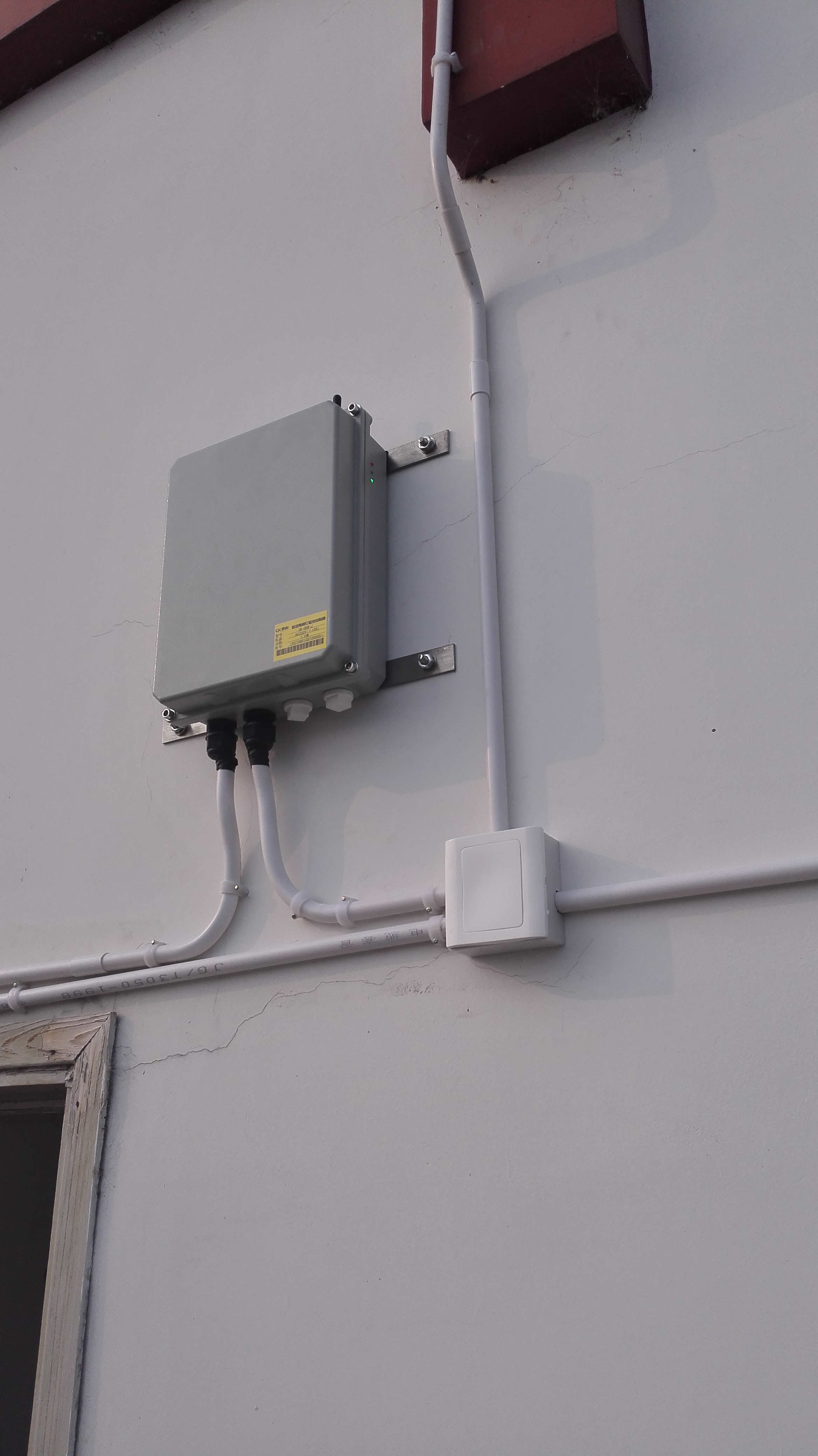

- Product Picture
 | |
|
- Parameter & Diagram
Item | Parameter |
Model | CM-DKW |
Operating voltage | AC220V/DC48V |
Power consumption | ≤10W |
Load capacity | ≤2000W |
Flashing frequency | 20~60 times |
100 units | |
Ingress protection | IP65 |
Controlled environment brightness | 50~500Lux |
Operating temperature | -55℃~55℃ |
Altitude | ≤4500m |
Wind load | 80m/sec. |
Net weight | 2.5kg |
Overall size(mm) | 280mm×250mm×85mm |
Installation size(mm) | 250mm×130mm×M4 |
- Specification
- Use the steel shell and spray coating techniques, resistance to corrosion, anti-UV
- The voltage of the power circuit and signal control line is same, so the connection of the wires are simple and reliable, it will not cause damage to the lightings and controller when connect the error line shortly.
- Control circuit use the MCU control, can simultaneously control 2000W load power / within 100 units aviation obstruction lights synchronized flashing or steady.
- Controller have 3 kinds operating modes: automatic, manual, close
Automatic mode: automatically shutdown during the day, turn off the aviation light control output;
automatically turn on at night an open aviation light control output. Work in manual mode: work status is forced open
Work close mode: work status is forced closed, three operating modes can be switched by the user . - The controller can also customize the fault alarm function, when one of the light it controlled failed, the indicator on the controller can be shown, also could use the dry contacts to alarm the external enviroment.
- The function of this aviation obstruction light controller is very powerful, performance is reliable and safe. Use and maintenance are simple and convenient; and with anti-surge device (anti-lightning In15KA /5 times, Imax 40KA), can be applied to a poor working environment.
| | | |
| CM-11 | CK-15 | CM-15 | CK-15-T |
| Red-Steady,32cd,Low Intensity Obstruction Light | Red Flashing,2000cd,Medium Intensity Obstruction Light | White Flashing, 2000- 20000cd,midium intesntiy OB light | Solar-Powered Medium Intensity Obstruction Light |
