Red LED Medium Intensity Type B Obstacle Light FAA L864 Aviation Obstruction Light
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks

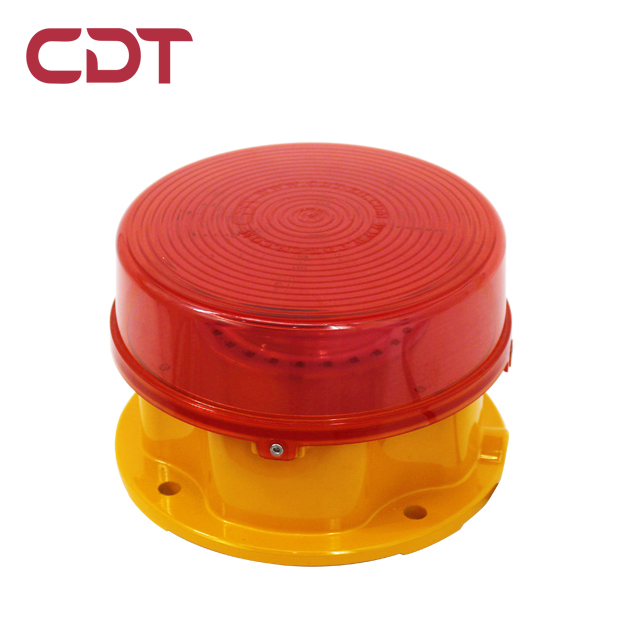

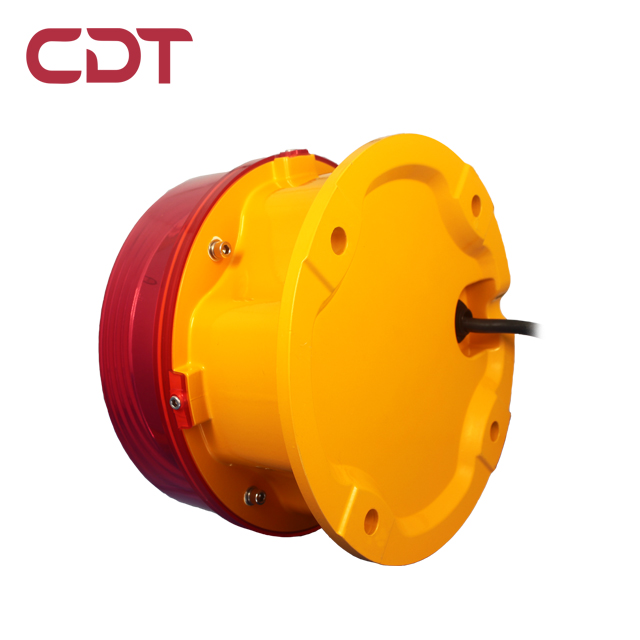

- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CM-13-B | |
| Operating Voltage | AC220V(other available) | |
| Power consumption | ≤10W | |
| Flashing frequency | 20~60times/min | |
| Light Source | Red LED | |
| Light Intensity | 2000cd | |
| Life span | >100,000 hours | |
| Emitting color | Red | |
| Beam angle | 360° horizontal beam angle | |
| ≥3° vertical beam spread | ||
| Method of synchronization | Same power supply voltage signal mode | |
| Overall size(mm) | 210mm×140mm | |
| Installation size(mm) | 126mm×126mm×-4xM10 | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Light Controlled Sensitivity | 100Lux | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 2.5KG | |
| Wind load | 80m/sec. |
- Specification
- Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 95%,quite high impact resistance and fits the bad environment very well. - House of the light is made of aluminum alloy, painted by spraying plastics, the structure is
high strength, resistance to corrosion; - Using parabolic reflector optical design, range further;
- Light source adopts LED with long lifespan, lower power consumption and high efficiency.
- Based on the single chip computer control, automatic identification sync signal, do not
distinguish the main light and auxiliary light, and also could be controlled by the controller; - Same power supply voltage with synchronous signal, integrate in power supply cable,
eliminate the damage by error installation caused; - Used the photosensitive probe fit for the natural light spectrum curve, automatic control
light intensity level; - The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5times,
Imax 15KA so that the light is suitable for a harsh environment; - Integral structure, protection level of Ip65;
- Ignitability rate UL-94V0, fit for all kinds of industrial situation;
- GPS synchronizing function is available.
| | | |
| CM-11 | CK-15 | CM-15 | CK-15-T |
| Red-Steady,32cd,Low Intensity Obstruction Light | Red Flashing,2000cd,Medium Intensity Obstruction Light | White Flashing, 2000- 20000cd,midium intesntiy OB light | Solar-Powered Medium Intensity Obstruction Light |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
