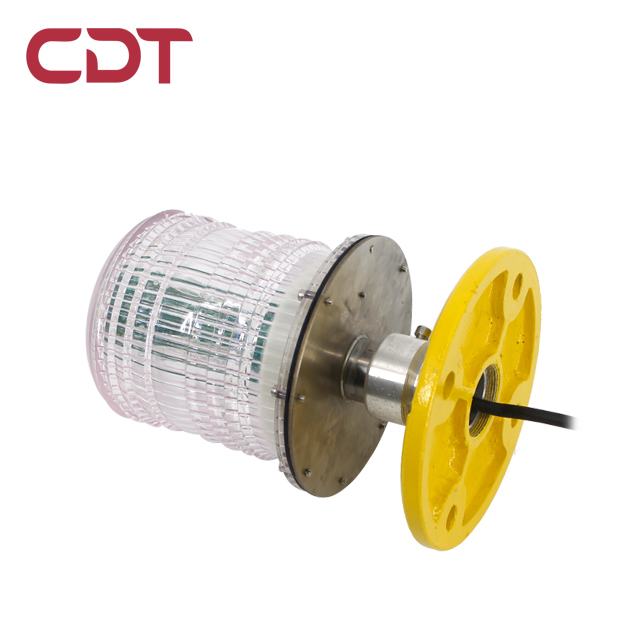

Helipad Light / Apron Light/Green LED elevated heliport FATO perimeter light

Click on the image to view the original image

Product：	views：4Helipad Light / Apron Light/Green LED elevated heliport FATO perimeter light
Branch：	CM
Type：	Aviation Obstruction Lights
Size：	17X17X27 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:40

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC90-AC240V

Lamp Power(W):: 5

Lamp Luminous Flux(lm):: /

Lamp Luminous Efficiency(lm/w):: 1

CRI (Ra):: 1

Color Temperature(CCT):: Green

Beam Angle(°):: 360

IP Rating:: IP65

Certification:: BV, CCC, CE, SASO

Emitting Color:: Green

Lamp Body Material:: Aluminum Alloy

Base Type:: Others

Light Source:: LED, Green LED

Place of Origin:: China

Brand Name:: CM

Operating voltage:: AC110-240V/DC48V (Other Voltage

Power consumption:: 5W

Light Intensity:: 30cd

Light Source Lifespan:: 100,000 Hours

Ingress Protection:: IP65

Altitude:: ≤2500m

Operating temperature:: -40℃~55℃

Packaging & Delivery

Selling Units:: Single item

Single package size:: 17X17X27 cm

Single gross weight:: 2.5 kg

Package Type:: Carton

Lead Time:

Quantity(Piece)	1 - 50	>50
Est. Time(days)	10	To be negotiated

Product Description

Application

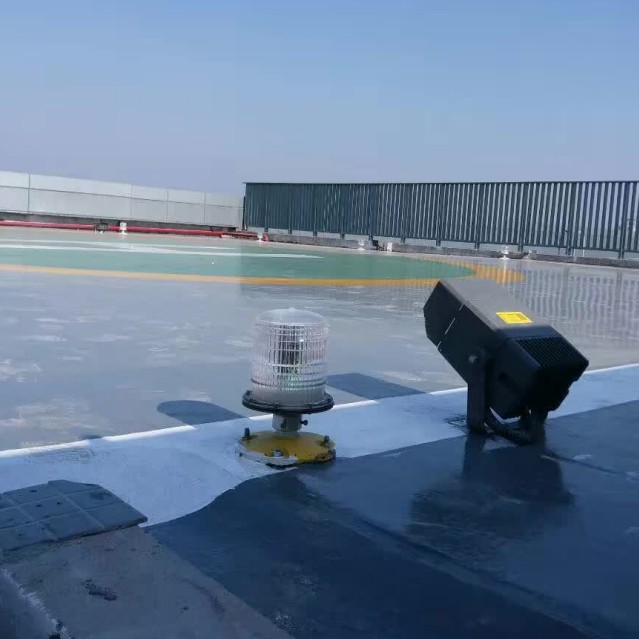

CM-HT12/CU heliport perimeter light is a constant green upright installing light. Emitting omnidirectional green light at night or in the daytime with low visibility to indicate the perimeter of heliport take off and land area, to indicate the safe landing area for the helicopter pilot. It is controlled by a switch in the heliport control cabinet.

Key Feature

1. The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact strength: 90), thermal stability (service temperature can be 130℃), great transparency (available with a light transmission of up to 90%), auto-UV resistance, aging resistance and flammability rating in UL94V0.

2. The house of the light adopts aluminum alloy, the product features are light weight, water tightness, seismic and corrosion resistance.3. Light source adopts the international advanced LED featuring low power consumption, high efficiency and light source lifespan reaching 100,000 hr.

Product Paramenters

Model	CM-HT12/CU
Operating voltage	AC220V
Power consumption	5W
Light Intensity	30cd
Light Source	Green LED
Light Source Lifespan	100,000hours
Ingress Protection	IP65
Altitude	≤2500m
Operating temperature	-40℃～55℃
Wind Load	80m/s
Net weight	2.1kg
