Widely used in various fields of the navigation area, such as tower ,buoy, and gas& oil platform where require aviation warning.
Product Description
Applicantion
Key Features
●Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fits the harsh environment very well.●House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.●Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.●Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environment protection.●Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller. ●Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.●Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.●The circuit of the light has surge protection, so that the light is suitable for a harsh environment.●Integral structure, protection level of Ip65.
Product Paramenters

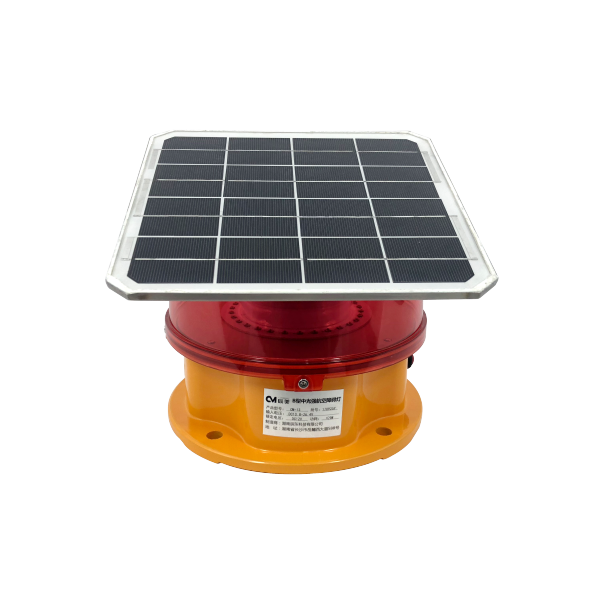

Name | LED Solar power obstruction lights | Beam angle | 360° horizontal，≥3° vertical |
Standard | FAA,ICAO Standard | Overall size(mm) | 195mm×195mm×393mm |
Input voltage | DC12V, others can be customized | Installation size(mm) | Φ127mm-4×M10 |
Power | ≤10W | Ingress protection | Ip65 |
Flashing frequency | 20-60 times/min | Lightning protection | 10KA |
Light intensity | 2000cd | Light controlled sensitivity | 100Lux |
Light source | LED | Operating temperature | -40℃-55℃ |
Light source lifespan | ＞100,000 hours | Wind load | 80 m/sec |
Emitting color | Red | Net weight | 4kg |
