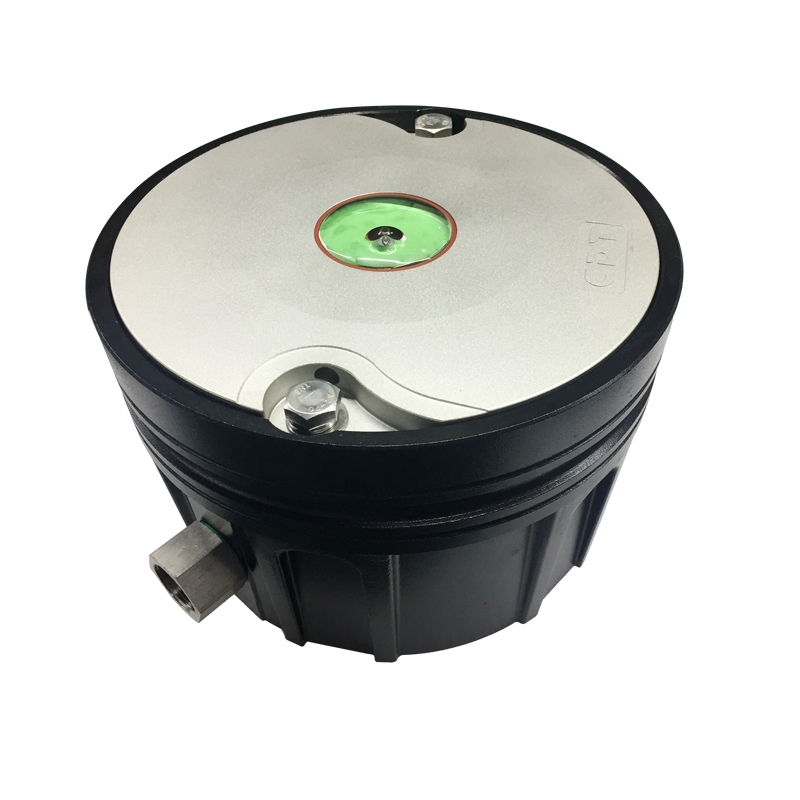

LED In-pavement Utility and Heliport Insert Perimeter Light
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CM-HT12/CQ | |
| Operating Voltage | AC220V/6.6V(other available) | |
| Power consumption | ≤15W | |
| Light Intensity | 30cd | |
| Life span | >100,000 hours | |
| Light Source | Yellow/Green LED | |
| Emitting color | Yellow/Green | |
| Ingress Protection | IP68 | |
| Enviroment Humidity | 0-100% | |
| Altitude | ≤2500m | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 3.5KG | |
| Wind load | 80m/sec. | |
| Net Weight | 6.5KG | |
| Light Barrel Size | 220mmx160mm |
- Specification
- The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact
strength: 90), thermal stability (service temperature can be 130℃), great transparency
(available with a light transmission of up to 90%), auto-UV resistance, aging resistance
and flammability rating in UL94V0. - House of the light is made of aluminum liquid casting and oxidation treatment, the
product features are omniseal, water tightness and corrosion resistance. - Light source adopts the international advanced LED featuring low power consumption,
high efficiency and light source lifespan reaching 100,000 hr. - The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the
harsh environment.
- Exploded Drawing
- Embeded Connection Mode
| | | |
| CM-HT12/CQ | CM-HT12/N | CM-HT12/A | CM-HT12/F |
| 8 Inch Inset TLOF Light | Heliport Flood Light | Heliport Beacon | Heliport Windsock |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
