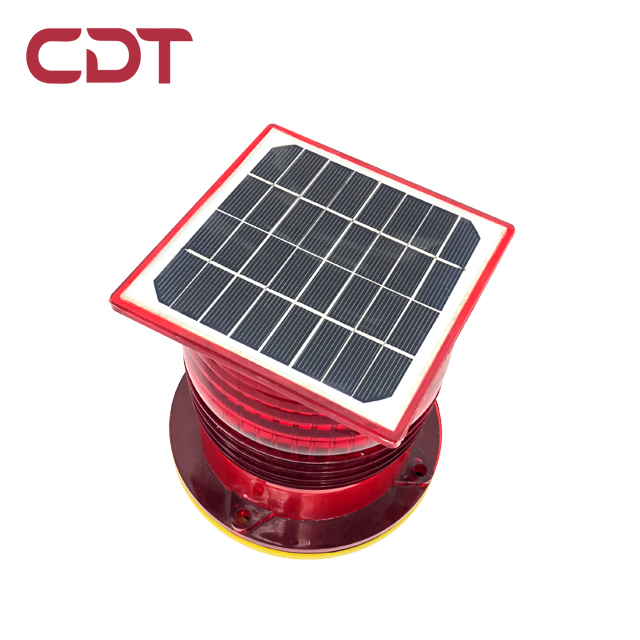

Solar Powered Led Tower Obstruction light GSM Telecom Aviation Obstacle Aircraft Warning Light
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CK-11L-TZ | |
| Operating Voltage | DC 6.5V(other available) | |
| Power consumption | ≤3W | |
| Flashing frequency | Steady burning | |
| Light Source | Red LED | |
| Light Intensity | ≥32cd | |
| Life span | >100,000 hours | |
| Emitting color | Red | |
| Beam angle | 360° horizontal beam angle | |
| ≥3° vertical beam spread | ||
| Method of synchronization | Steady burning | |
| Overall size(mm) | 167mm×167mmx162mm | |
| Installation size(mm) | 150mm×-4xM12 | |
| Ingress protection | IP65 | |
| Lightning protection level | 5KA | |
| Light Controlled Sensitivity | 100Lux | |
| Operating temperature | -30℃~60℃ | |
| Net weight | 1.2KG | |
| Wind load | 80m/sec. |
- Specification
- Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 90%, quite high impact resistance and fit the bad environment very well. - ABS+PC alloy with paiting by spraying plastics,the structure is high strengh,resistance to corrosion.
- Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
years. - Based on the single chip computer micro power control, could control the charge and
discharge precisely. - Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
lifetime more than 20 years. - Using Fresnel lens optical design, range further.
- Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
high efficiency. - Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
light intensity level. - The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment. - Integral structure, protection lever of Ip65.
| | | |
| CM-11 | CK-15 | CM-15 | CK-15-T |
| Red-Steady,32cd,Low Intensity Obstruction Light | Red Flashing,2000cd,Medium Intensity Obstruction Light | White Flashing, 2000- 20000cd,midium intesntiy OB light | Solar-Powered Medium Intensity Obstruction Light |
Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.
Usually used above 45m or below 150m buildings, could use alone,also could use with Low intensity OBL type B together.
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
