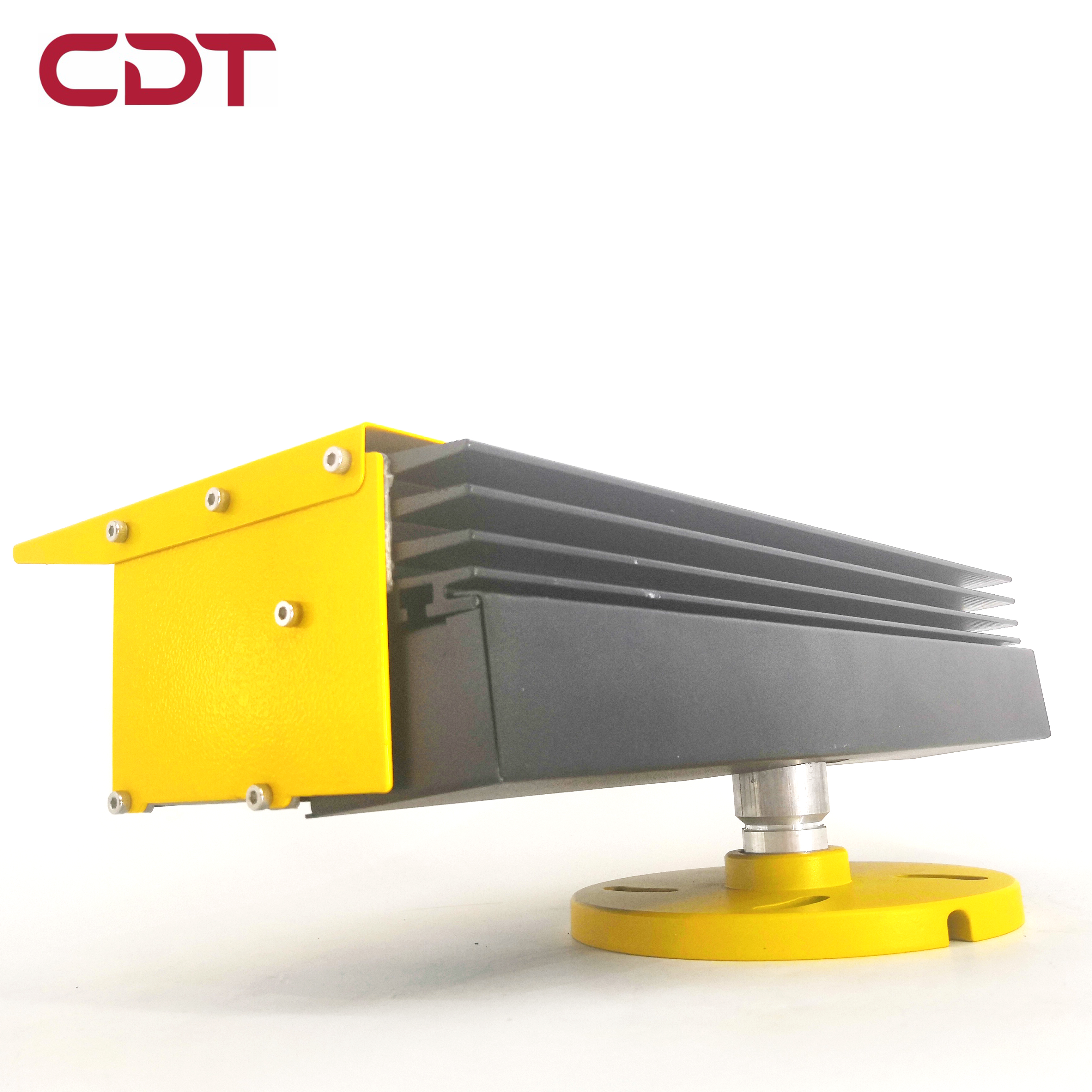

LED Heliport Helipad flood Light 60W Floodlights for the illumination of a helideck
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
- Product Picture
- Parameter & Diagram
| Item | Parameter |
| Model | CM-HT12/N |
| Operating Voltage | AC110V-AC240V/50,60Hz |
| Power consumption | ≤60W |
| Luminous flux | ≥10,000LM |
| Light Source | White LED |
Working Way | Steady On |
| Life span | >100,000 hours |
| Emitting color | White5000K |
| Ingress Protection | Ip65 |
| Environment humidity | 0~100% |
| Operating temperature | -55℃ ~55℃ |
| Altitude | ≤4500m |
| Overall Dimension (mm) | 400mm×260mm×142mm |
| Net weight | 5.6KG |
| Wind load | 80m/sec. |
- Specification
1. All-aluminum alloy case, light weight, high structural strength, corrosion resistance and excellent heat dissipation.
2. Imported LED light source, long life, low power consumption and high brightness.
3. The glazing surface is tempered glass, which has excellent impact resistance, good thermal stability (500 ° C temperature resistance), good light transmission (light transmittance up to 97%), UV resistance and aging resistance. The lamp holder is made of aluminum alloy liquid casting, and the surface is oxidized, which has the characteristics of full sealing, waterproof and corrosion resistance.
4. Reflector based on the principle of reflection, the light utilization rate is over 95%, and the light exit angle can be more accurate, the visible distance is farther, and the light pollution is completely eliminated.
5. The light source is a white LED, which adopts international advanced long-life, low-power, high-efficiency chip package (lifetime over 100,000 hours) and color temperature of 5000K.
6. The complete set of lamps and lanterns adopts full packaging technology, which is resistant to impact, vibration and corrosion, and can be used in harsh environments for a long time. The structure is light and firm, and the installation is simple.
- Installation
1. As shown in the figure below, the pipe anchor bolts should be made before installation (if the expansion bolts are not buried).
2. Place the light horizontally and the anchor bolts or expansion bolts should be secure and vertical. The end of the threading pipe on the ground should be made of a circular arc waterproof structure. A waterproof junction box, tee, is embedded in the ground near the tail of the lamp.
3. Line head resolution: This model has only one 3-core cable (2.5 square section), of which brown and black are power lines (AV220V), brown is power line (L), black is power line (N), yellow-green Is the ground wire.
| | | |
| CM-HT12/CQ | CM-HT12/A | CM-HT12/CUG | CM-HT12/F |
| Inset Heliport Perimeter Light | Heliport Beacon | Heliport Elevated Perimeter Light | Heliport Windsock |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
