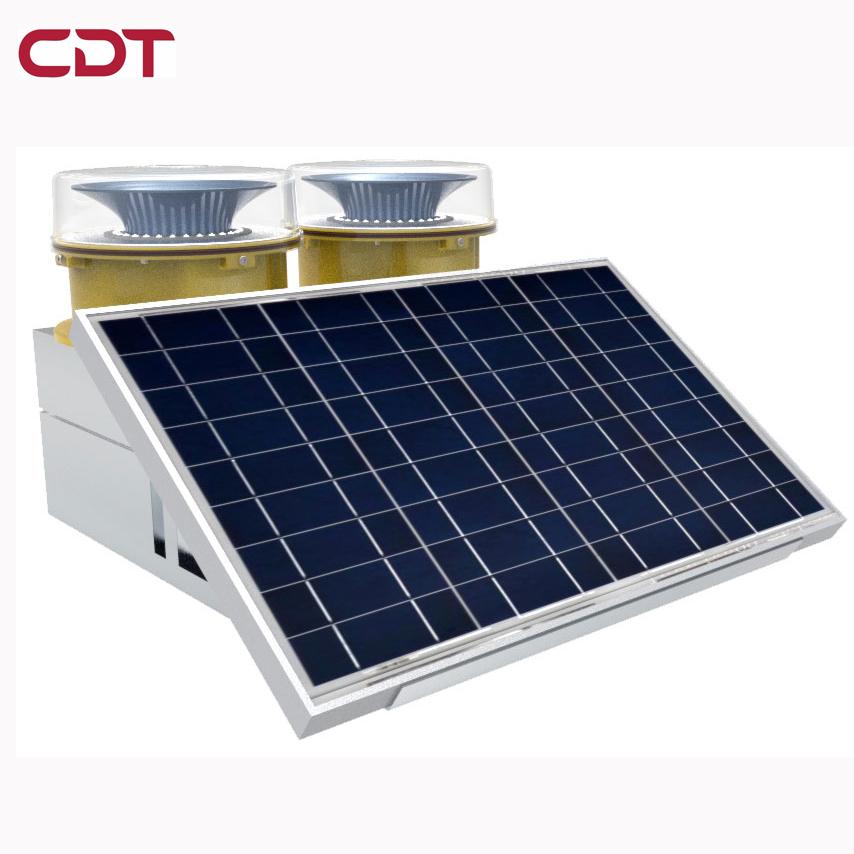

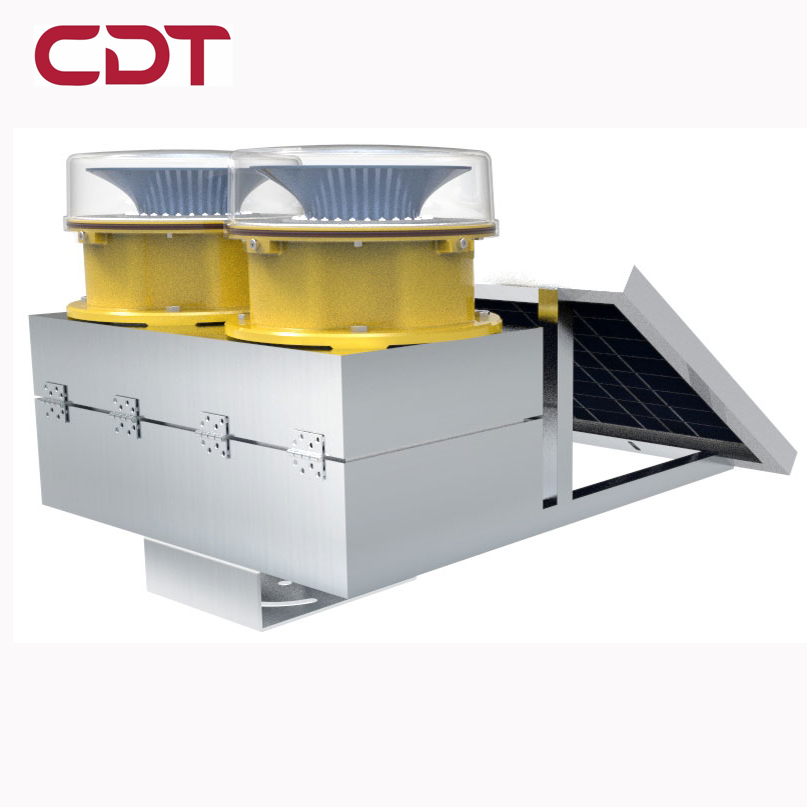

Solar Powered LED Dual Aviation obstruction tower Lights Manufacturer
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks!
- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Lights Name | Type B Medium Intensity Dual Obstruction lights | |
| Model | CK-15-TS | |
| Installation Size | 126mm*M4- 11 | |
| Refer.Weight | 25kg(without bracket) | |
| Flashing frequency | 40tims/minutes | |
| Light Source | LED | |
| Emitting color | Red | |
| Supply Power | Battery(Solar Power Charge) | |
| Synchronously | GPS | |
| Light Life Span | >100000000 times | |
| Lights Intensity | At day:No working | |
| Dusk, dawn and foggy time:2000cd±25%cd | ||
| At night:2000cd±25%cd | ||
| Ingress protection | IP65 | |
| Environment Humidity | ≤95% | |
| Operating temperature | -40℃~+70℃ | |
| Lightning protection level | 10KA | |
| Wind resistance | 240km/h | |
| The altitude | <6000m | |
| utomatic control environment | 50~500cd/m2 | |
| Net weight | 7KG | |
| Continuous working days on rainy days | 25 days 108 | |
| Solar panel structrue type | Glass package of aluminum alloy frame | |
| Solar panel lifespan | 30 years | |
| Lead-acid battery capacity | 24Ah | |
| Battery lifespan | 12 years | |
| Using Rainy day OR Cloudy Day | 25 days for working |
- Specification
- Anti-UV imports of high-quality PC lamp cap lamp, the transparency of more than 95%, high
temperature, heat drastic changes, anti-impact, excellent harsh environment adaptability. - SUS304 stainless steel steel structure of the bottom of the battery box acne, precision molding a
molded aluminum lamp holder, high structural strength, corrosion resistance, the surface of the shell
using high-pressure electrostatic powder coating, the product casing to achieve double corrosion,
lighting protection grade IP65. Light solid as a whole, anti-powerful impact and collision. - The use of advanced international, low-light, high efficiency solar panels, with the deep cycle of solar
energy for colloidal batteries as the power supply, charging and discharging the use of advanced power
management system, the battery under-voltage, over-voltage, floating charge, all aspects Protection,
greatly improve battery life. - Control circuit with micro-power dedicated flash controller, reducing the control circuit itself energy
consumption. - Low-carbon tempered glass aluminum frame, polycrystalline silicon solar panels, high energy
efficiency (> 18%), life expectancy more than 30 years. Four solar panels, multi-angle take full advantage of light energy. - With the optical design of the reflector, the visual distance farther, the angle is more accurate,
completely eliminate light pollution. - Light source using the international advanced long-life, low power consumption, high efficiency LED
cold light source, greatly improving the brightness of light, double the energy consumption. - Detected by solar panels to the light intensity, control the lights automatically switch.
- Built-in anti-surge devices, circuit work more reliable.
| | | |
| CK-11L | CM-11 | CM-15 | CK-15-T |
| Low Intensity Aviation Obstruction Light | Low Intensity Obstruction Light with Bracket | Medium Intensity Aviation Obstruction Light | Solar-Powered Medium Intensity Obstruction Light |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
