Product Description

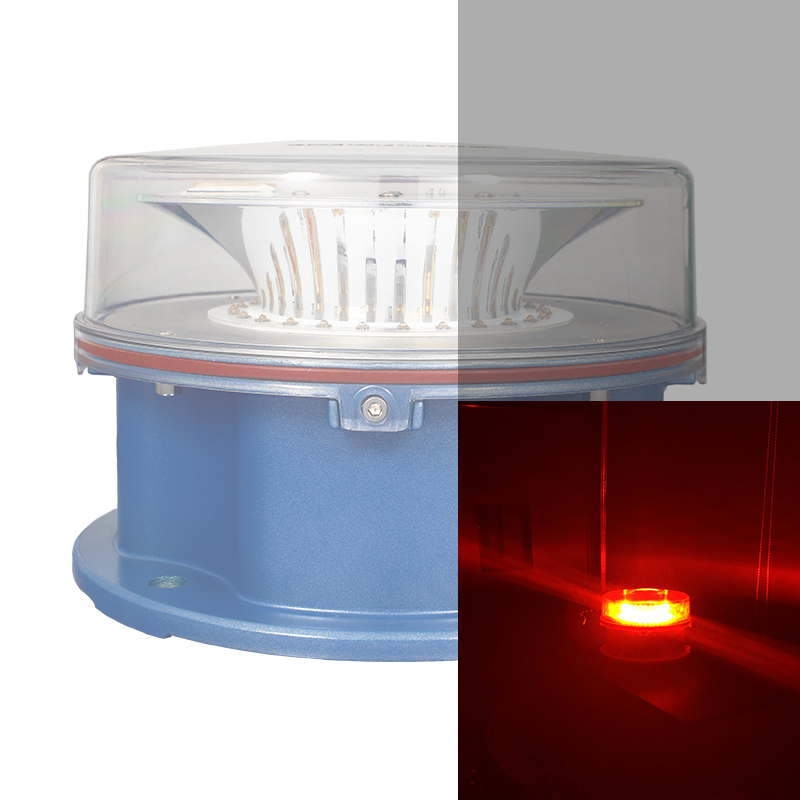

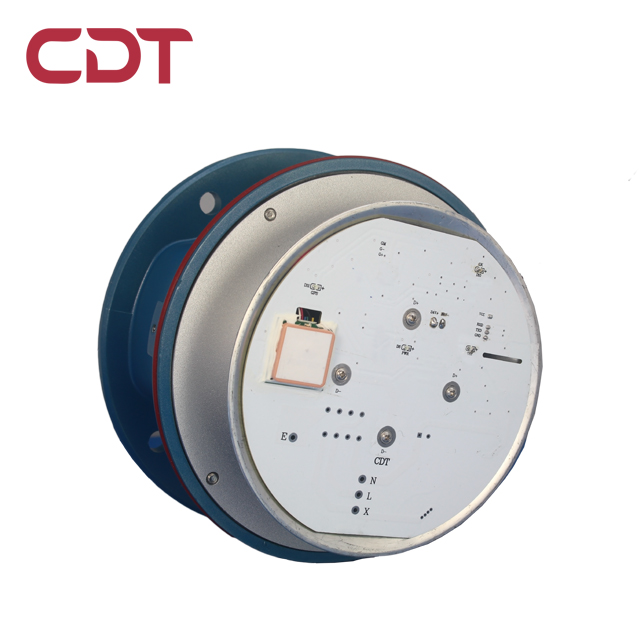

CK-16 Medium Intensity Aviation Obstruction Light Type B
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world. If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
Model | CK-16 |
Operating voltage | AC220V (Other available) |
Power consumption | ≤10W |
Flashing frequency | 20～60times/min |
Light source | Red LED |
Peak light intensity | >2000cd |
Lifespan | ＞100,000hours |
Emitting color | Red |
Beam angle | 360° horizontal beam angle |
≥3° vertical beam spread | |
Method of synchronization | Same power supply voltage signal mode |
Overall size(mm) | Ф210mm×140mm |
Installation size(mm) | 126mm×126mm -4×Ф11 |
Ingress protection | Ip65 |
Lightning protection level | 15KA |
Light controlled sensitivity | 50Lux |
Operating temperature | -40℃～55℃ |
Net weight | 3kg |
Wind load | 80m/sec. |
Specification
1.Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90% quite high impact resistance and fit the bad environment very well.2.House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure is highstrength ,resistance to corrosion3.Using Parabolic reflector optical design, range further4.Light source adopts LED with long lifespan ,lower power consumption and high efficiency5.Based on the single chip computer control , automatic identification syncsignal ,do not distinguish the mainlight and auxiliary light ,and also could be controlled by controller6.Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate the damageby error installation caused7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.8.The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment9.Integral structure, protection lever of IP65.10.Ignitability rate UL-94V0, fit for all kinds of industrial situation , GPS synchronizing function
