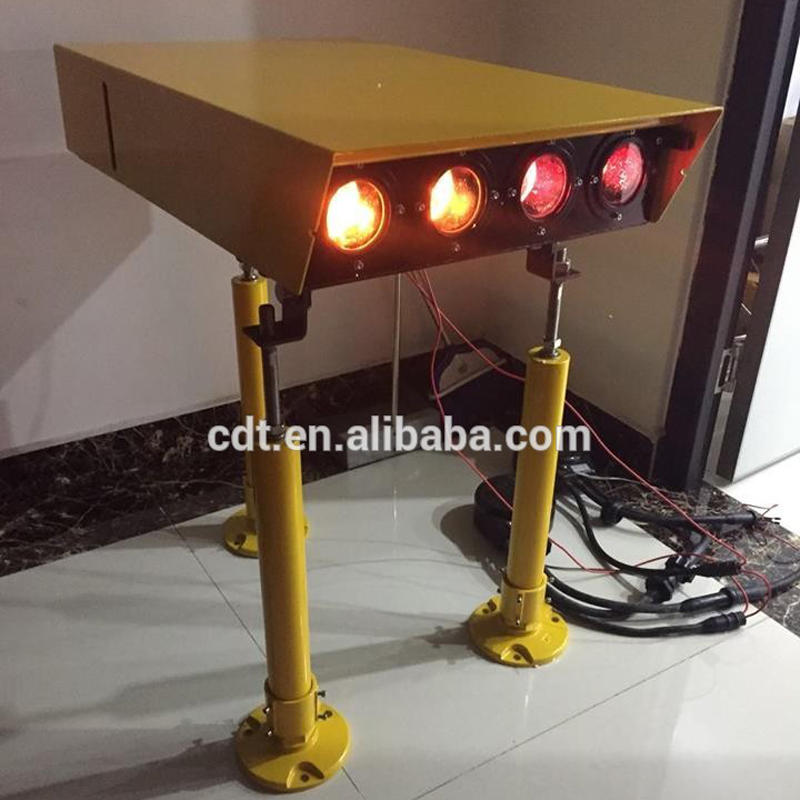

Heliport PAPI Approach Path Indicator Light for airport
Click on the image to view the original image
Product： views：3Heliport PAPI Approach Path Indicator Light for airport
Branch： CM
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:40
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
6.6A
Lamp Power(W):
105
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
1
CRI (Ra):
1
Color Temperature(CCT):
Other
Beam Angle(°):
90
IP Rating:
IP65
Certification:
BV, CE
Emitting Color:
White,Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
Halogen Bulbs, White|Red
Place of Origin:
Hunan, China
Brand Name:
CM
Power Consumption:
<15w
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Wooden Package
Port
Guangzhou,Shenzhen
Lead Time:
Quantity(Units)1 - 5 >5
Est. Time(days)20To be negotiated
Product Picture

Compliances:

FAA L-881 Photometrics per FAA Advisory Circular 150/5345-28G
FAA AC 150/5390-2B Heliport Design Guide
Registered ISO 9001:2008
ICAO Annex 14, Volume II


CHAPI is a modified PAPI system for use as visual slope guidance on heliports.
One CHAPI system is for one helicopter approach path.
It is installed on the side opposite the approach, facing across the landing area.

Each CHAPI system consists of two (2) CHAPI units

Type - Voltage/Frequency Required (one per site)
CHAPI-CM-HT12/P
120 volts, 60 Hz Clinometer
220-240 volts, 60 Hz (aiming device)
220-240 volts, 50 Hz

Need More Information,Pls contact with me.Thanks

Parameter & Diagram
Apply In

If interested,Pls contact with me.Thanks

Our Company
Certifications Show
FAQ

Synchronized Flashing Units Can't work Simultaneously

A.Monitor Function Type Requires Power Line seperate from signal line,the power circuit of each unit can be independently connected,pls check signal circuit was connected by corresponding color when ensure power supply works normally.

B.Check if there's short circuit or leakage phenomenon with the signal circuit after excluding the condition above.


Light-operated switch can't work normally
A.The Unit can't work at day: Pls check if the light-operated detector is closed over by dust;
B.The Unit can't work at night: Pls check if light-operated detector is influenced by direct light or strong reflective light;
C.Testing the unit at day: Most of customers test the unit by Closing over the light-operated detector using their hands.Since the strong Radiation of sunshine,the light-operated function can't work.The proper method is using 3 layers of black opacity adhesive tapes.
