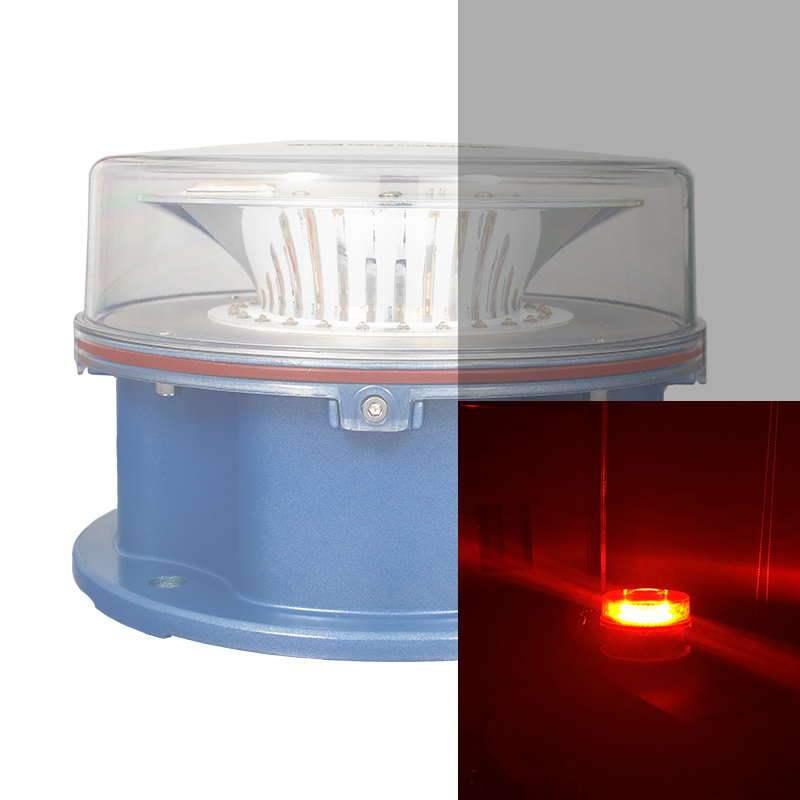

Red FAA Type L-864 Medium Intensity Strobe Beacon LED Obstruction Marking and Stack Lighting
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
Product Description

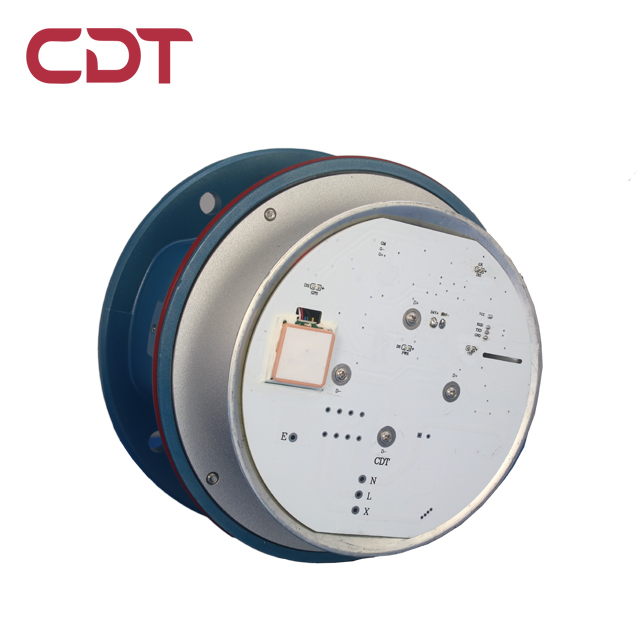

- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CK-16 | |
| Operating Voltage | AC220V(other available) | |
| Power consumption | ≤10W | |
| Flashing frequency | 20~60times/min | |
| Light Source | Red LED | |
| Light Intensity | >2000cd | |
| Life span | >100,000 hours | |
| Emitting color | Red | |
| Beam angle | 360° horizontal beam angle | |
| ≥3° vertical beam spread | ||
| Method of synchronization | Same power supply voltage signal mode | |
| Overall size(mm) | 210mm×140mm | |
| Installation size(mm) | 126mm×126mm×-4xM11 | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Light Controlled Sensitivity | 50Lux | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 3KG | |
| Wind load | 80m/sec. |
- Specification
- Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90% quite high impact resistance and fit the bad environment very well.
- House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure is highstrength ,resistance to corrosion
- Using Parabolic reflector optical design, range further
- Light source adopts LED with long lifespan ,lower power consumption and high efficiency
- Based on the single chip computer control , automatic identification syncsignal ,do not distinguish the mainlight and auxiliary light ,and also could be controlled by controller
- Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate the damageby error installation caused
- Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
- The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment
- Integral structure, protection lever of IP65.
- Ignitability rate UL-94V0, fit for all kinds of industrial situation , GPS synchronizing function
