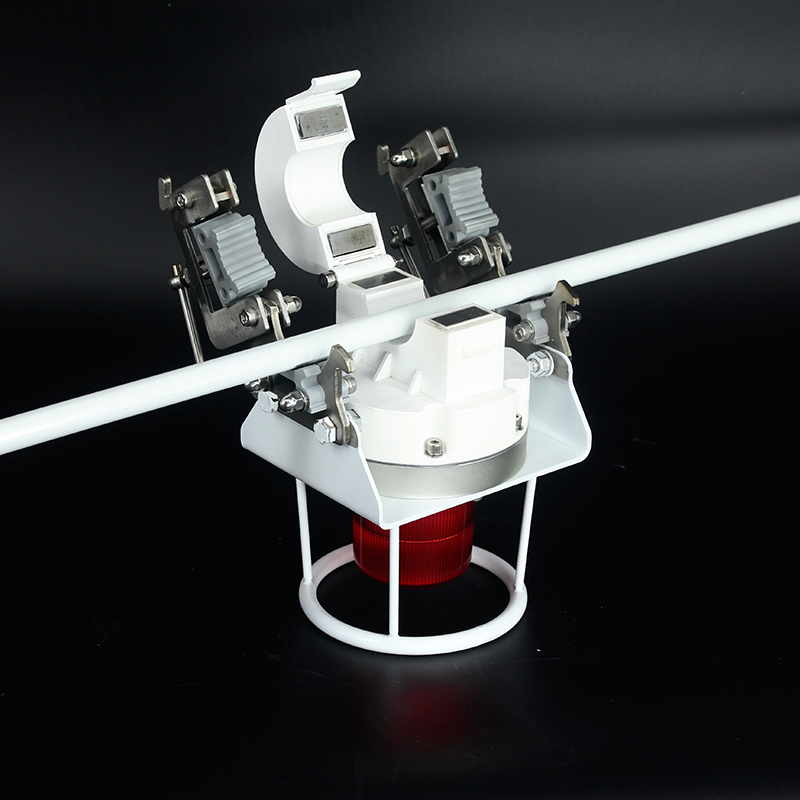

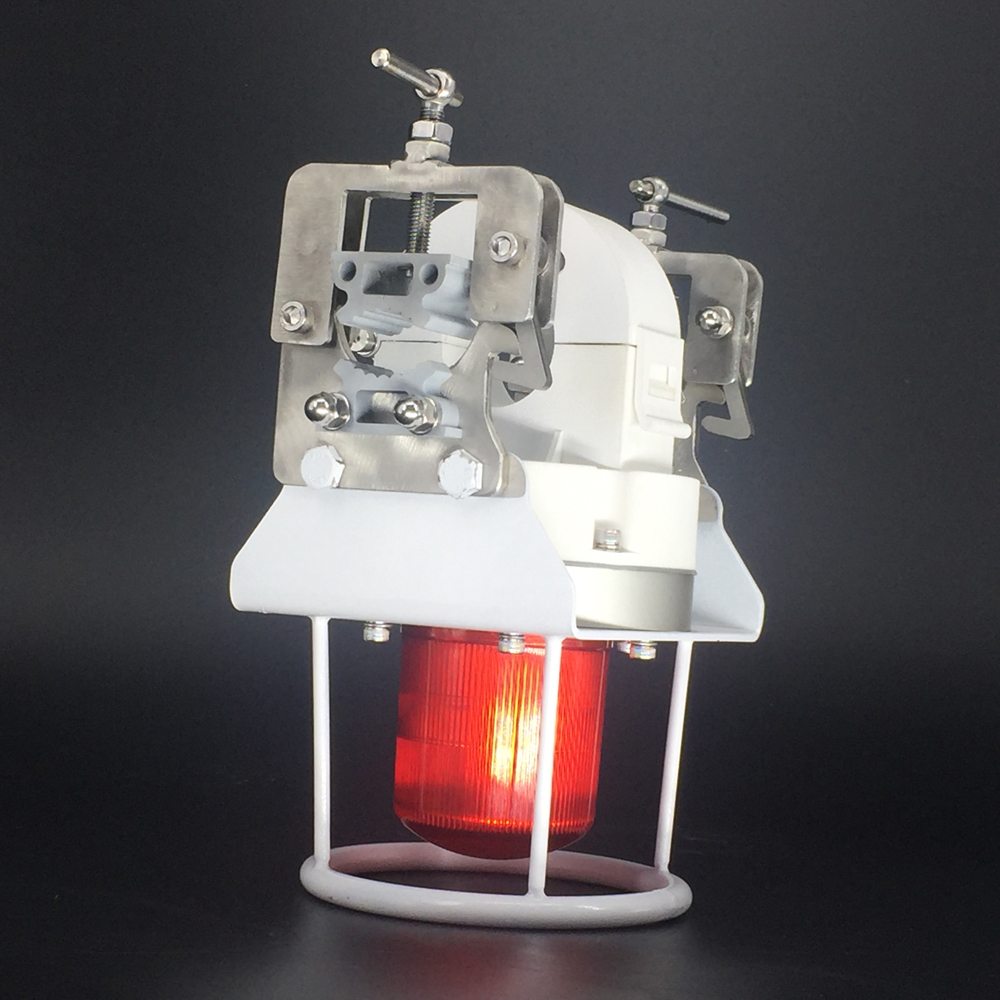

110KV 130KV 160KV 210KV 360KV Powerline Aircraft Warning Light Conductor Marking Light Beacon for High Voltage Line
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
- Product Picture
- Parameter & Diagram
| CK-11 Conductor Marking Lights for Overhead Power Lines | |
| LUMINOUS | |
| Luminous Source | LEDS |
| Type of Obstruction Light | Low Intensity,Type B |
| Color | Red |
Horizontal Beam | 360° |
Vertical Beam | 10° |
Luminous Intensity | 32cd |
Life Span | 100 000 hours |
ELECTRICAL | |
Operation Principal | AC Inductive Coupling |
Voltage Lines | 1V to 500kV |
Compatible Conductor Diameter | 15mm to 40mm |
Functioning Temperature | -55℃ to + 55℃ |
HV Current | 50A-2000A |
Operating Line Frequency | 50Hz/60Hz |
Photocell Activation | 50Lux |
| Power Consumption | <5W |
Waterproof Level | IP64 |
MECHANICAL | |
Body Material | Stainless steel + aluminum alloy + PC |
| Lens Material | Polycarbonate with bird spike |
| Height | 234.5mm |
| Width | 122.5mm |
| Length | 155MM |
| PHOTOMETRIC STANDARD COMPLIANCE | |
| ICAO | ANNEX 14, Volume I, Chap. 6 |
| ICAO TYPE B | Low intensity obstacle light |
| FAA | AC 150/5345-43 |
| FAA Type L-810 | Low intensity obstacle light |
| Quality | ISO9001;2015 |
| ENVIRONMENTAL | |
| Humidity | 100% |
| Frost | -60℃ |
| Wind Speed | 240Km/h |
| WARRANTY | |
| Warranty | 3 years |
- Features
- LED light source adopts CREE lamp beads, which has high luminous efficiency, long life and low energy consumption.
- The lampshade adopts imported anti-UV PC material, which is resistant to high temperature, impact and environmental applicability.
- The frame of the clamp is made of 304 stainless steel. The wire is made of aluminum alloy and the interface is corrugated to prevent pinching of the high voltage wire.
- The lamp body is designed separately from the mounting bracket, and the installation operation is simple and convenient. Maintenance free.
- Suitable for high-voltage wire diameter range, from 15mm-40mm in diameter.
- Installation
| | | |
| CM-012ZAQ | CM-11 | CM-15 | CK-15-T |
| Aircraft Warning Sphere | Low Intensity Obstruction Light with Bracket | Medium Intensity Aviation Obstruction Light | Solar-Powered Medium Intensity Obstruction Light |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
