ICAO ANNEX 14 OBSTACLE LIGHT HIGH POWER LED FLASH LIGHT WHITE AIRPORT
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks
Product Description

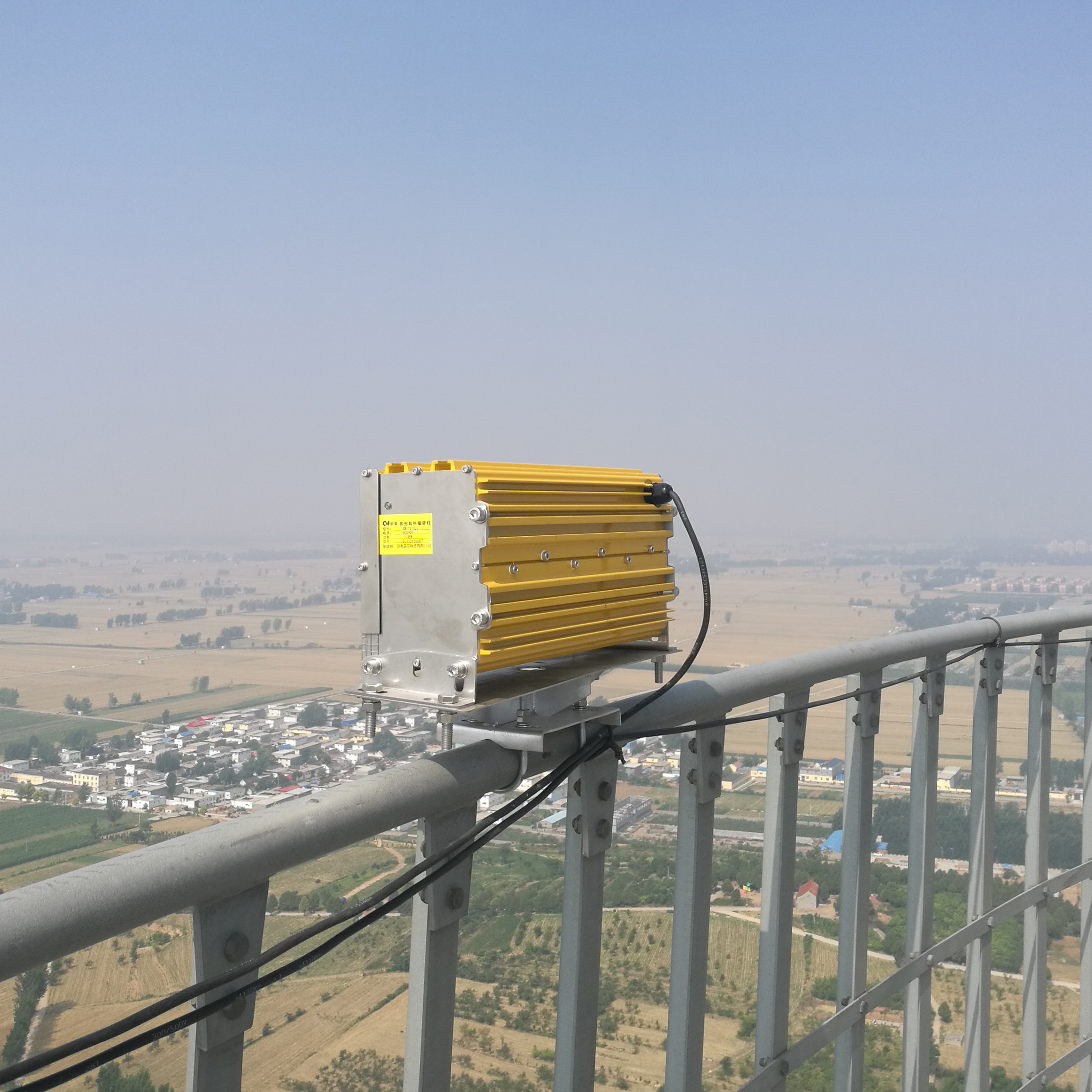

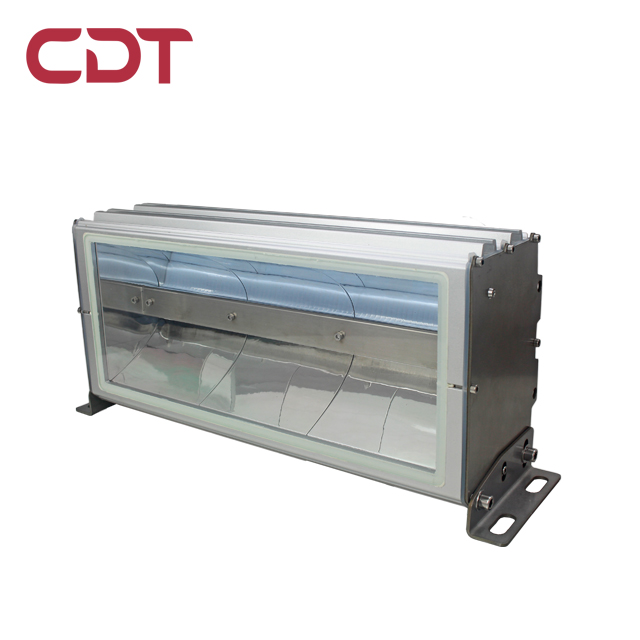

- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CM-17-B | |
| Operating Voltage | AC90-260V | |
| Power consumption | ≤100W | |
| Flashing frequency | 40~60times/min | |
| Light intensity | Background Luminance | |
| Light Intensity | ≤50Lux 2000cd(±25%) | |
| 50~500Lux 20000cd(±25%) | ||
| >500Lux 200000cd(±25%) | ||
| Life span | >100,000 hours | |
| Emitting color | White | |
| Beam angle | 90° horizontal | |
| 3-7° vertical beam spread | ||
| Method of synchronization | Same power supply voltage signal mode | |
| Overall size(mm) | 470mm×204mm×134mm | |
| Installation size(mm) | 445mm×70mm×4-M10 | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 8KG | |
| Wind load | 80m/sec. |
- Specification
- The house of the light adopts Aluminium alloy, Lens of Tempered glass; the structure is high strength, resistance to corrosion
- Use the optical design of parabolic reflector, the visual range further and angle more accurate.
- Light source adopts high quality LED which are light efficiency 100LM/W, low power consumption, long lifespan up to flash 100,000 Hrs
- Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by controller
- Same power supply voltage with synchronous signal, integrate in power supply cable, emliminate the damage by error installation caused.
- Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
- The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
- Integral structure, protection lever of IP65.
- Ignitability rate UL-94V0, fit for all kinds of industrial situation .
- GPS synchronizing function is available.
