Application Area

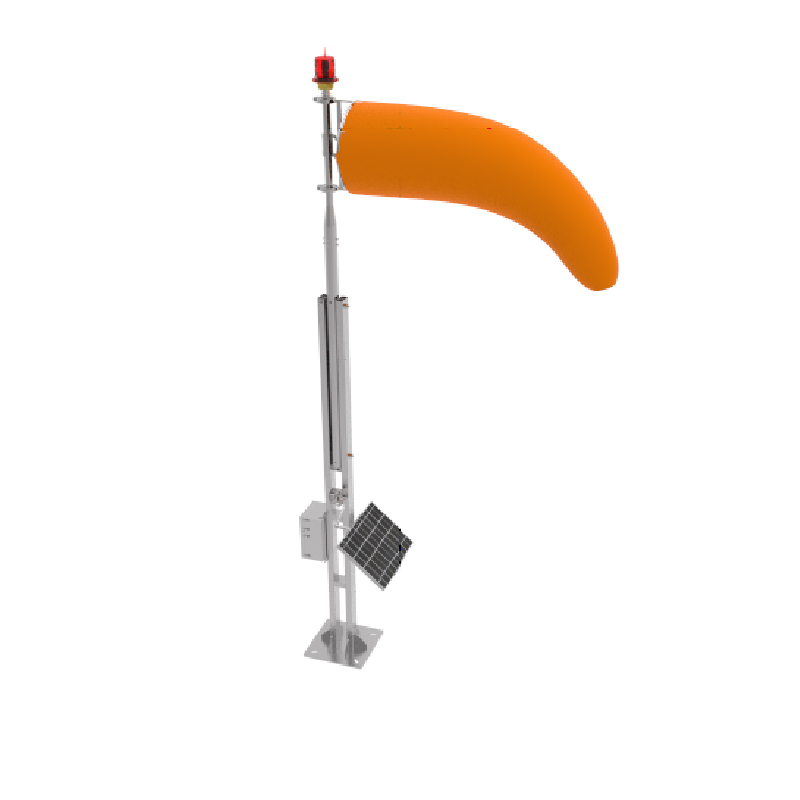

CH-HT12/F The windsock can indicate the wind direction of the final approach and takeoff, while general instructions can be given for the wind speed. According to the ICAO regulations, each airport must have at least one windsock. Its installation position is chosen to ensure that it is not blown away by nearby objects or rotors and must be clearly identified at least 200 meters above the sky.

Main Function & Feature

• CM-HT12/F The windsock is an illuminating windsock. It is a marker for observing wind force and wind direction at various airports and can be used during night.
• Installed a red light LED light obstruction light to notice the pilot at night to provide obstacles.
• A lightweight stainless steel frame and a 360 degree horizontal bearing rotation mechanism are mounted on the top of the pole.
• A waterproof LED spotlight is installed on the inner side of the wind frame, and the wind rotates to directly illuminate the wind sleeve. It is no longer an old-style external floodlight, which effectively reduces power consumption and eliminates glare.
•  A wind sleeve is installed on the frame. The Wind sleeve is made of nylon and UV-resistant material that is resistant to corrosion and high temperature. Its service life is long and the color is orange.
• 3# Diameter diameter is 900mm, small end is 450mm, length is 3.6m
• A control box is provided at the bottom of the wind direction bar, and the power cable is directly introduced into the control box.
• Raw materials: SUS304 stainless steel. The total height is 6.78m. The extension rod is fitted on the main rod, and the extension rod can be rotated and turned in one direction. The degree of fall is controlled by the wire rope of the hand winch. The control circuit board is designed with an anti-surge device (which can withstand lightning strikes of In7.5KA/5 times, Imax15KA) and can be used in harsh environments.

Parameter

Structure
