LED Low intensity Dual Solar Aviation Obstruction Light for aircraft warning
Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks

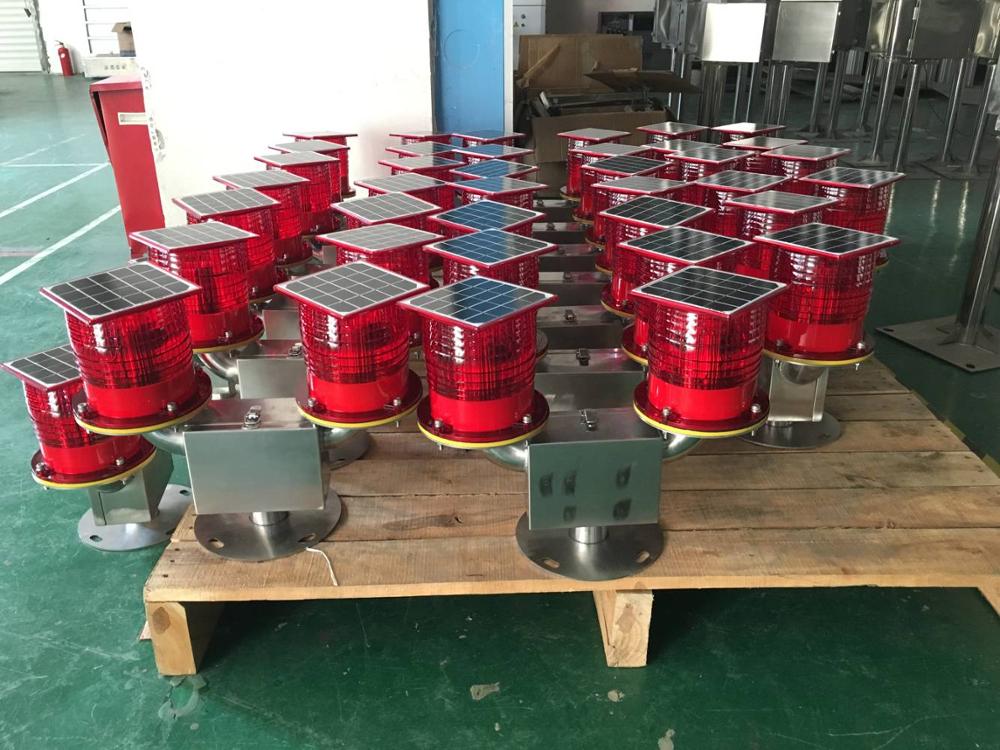

- Product Picture
- Parameter & Diagram
| Item | Parameter | |
| Model | CK-11L-TZ-S | |
| Operating Voltage | DC 6.5V(other available) | |
| Power consumption | ≤3W | |
| Flashing frequency | Steady burning | |
| Light Source | Red LED | |
| Light Intensity | ≥32cd | |
| Life span | >100,000 hours | |
| Emitting color | Red | |
| Beam angle | 360° horizontal beam angle | |
| ≥3° vertical beam spread | ||
| Method of synchronization | Steady burning | |
| Installation size(mm) | 120.2mm×120.2mm-4×M10 | |
| Ingress protection | IP65 | |
| Lightning protection level | 10KA | |
| Light Controlled Sensitivity | 100Lux | |
| Operating temperature | -40℃~55℃ | |
| Net weight | 12KG | |
| Wind load | 80m/sec. |
- Specification
- UV-resistant PC material lampshade, with a transparency of over 90%, strong impact resistance, excellent harsh environment adaptability.
- SUS304 stainless steel case and base, high structural strength, UV resistance, corrosion resistance.
- The lithium battery is used for energy storage, and the electric conversion efficiency is high.
- The micro-power intelligent control system ensures precise power management and low power consumption.
- Low carbon tempered glass monocrystalline silicon solar panels with high energy efficiency (>18%) and a lifetime of more than 20 years.
- High-efficiency LED light source with long life (more than 100,000 hours), low power consumption and high brightness.
- A light-sensitive probe that conforms to the natural light spectrum curve is used to precisely control the automatic switch of the lamp.
- The internal self-contained anti-surge device makes the circuit work more reliable.

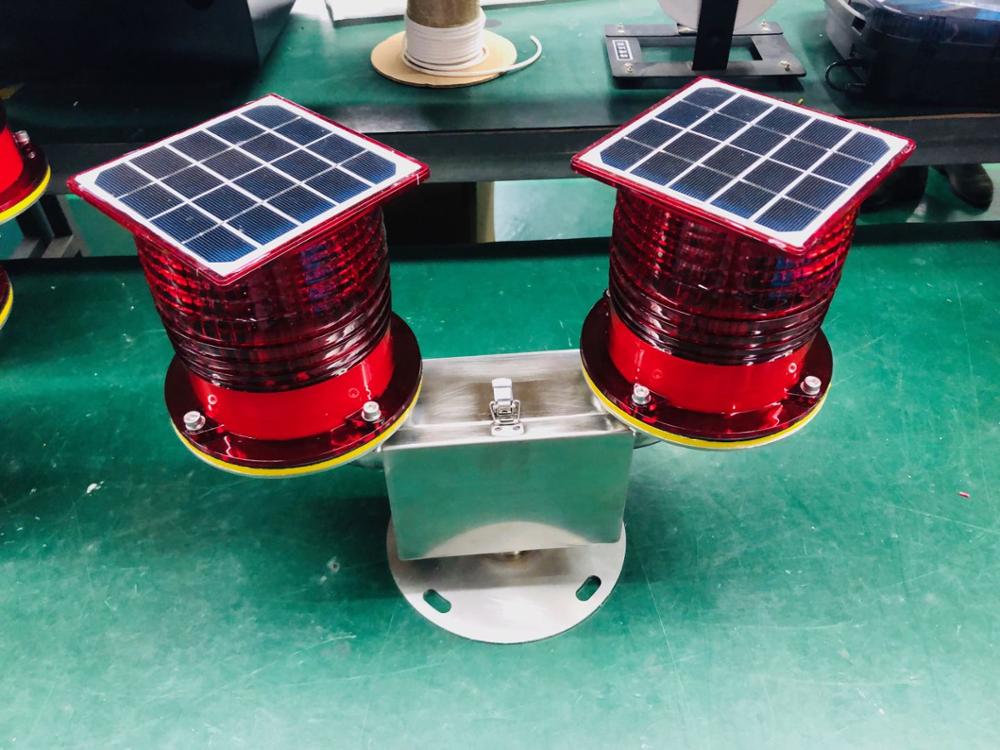

- The lights consists of two lamps, one main lamp and one standby lamp. The standby lamp is normally used as a backup and is automatically put into operation when the main lamp fails.
- Installation
| | | |
| CK-11L-TZ | CK-11L-T | CK-15-T | CK-15T |
| Solar-Powered Low Intensity Obstruction Light | Solar-Powered Low Intensity Obstruction Light | Solar-Powered Medium Intensity Obstruction Light | Solar-Powered Medium Intensity Obstruction Light |
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
