ignal aircraft warning lights control monitor,Dry connect,Photocell ,GPS aviation obstruction lights controller

Hunan Chendong Technology Co.,LTD (shorted as CDT)is a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.

If any interest,pls add my skype sophia.guo88 or Whatsapp +86-1392949360,we will discussed about the details,thanks

Product Description

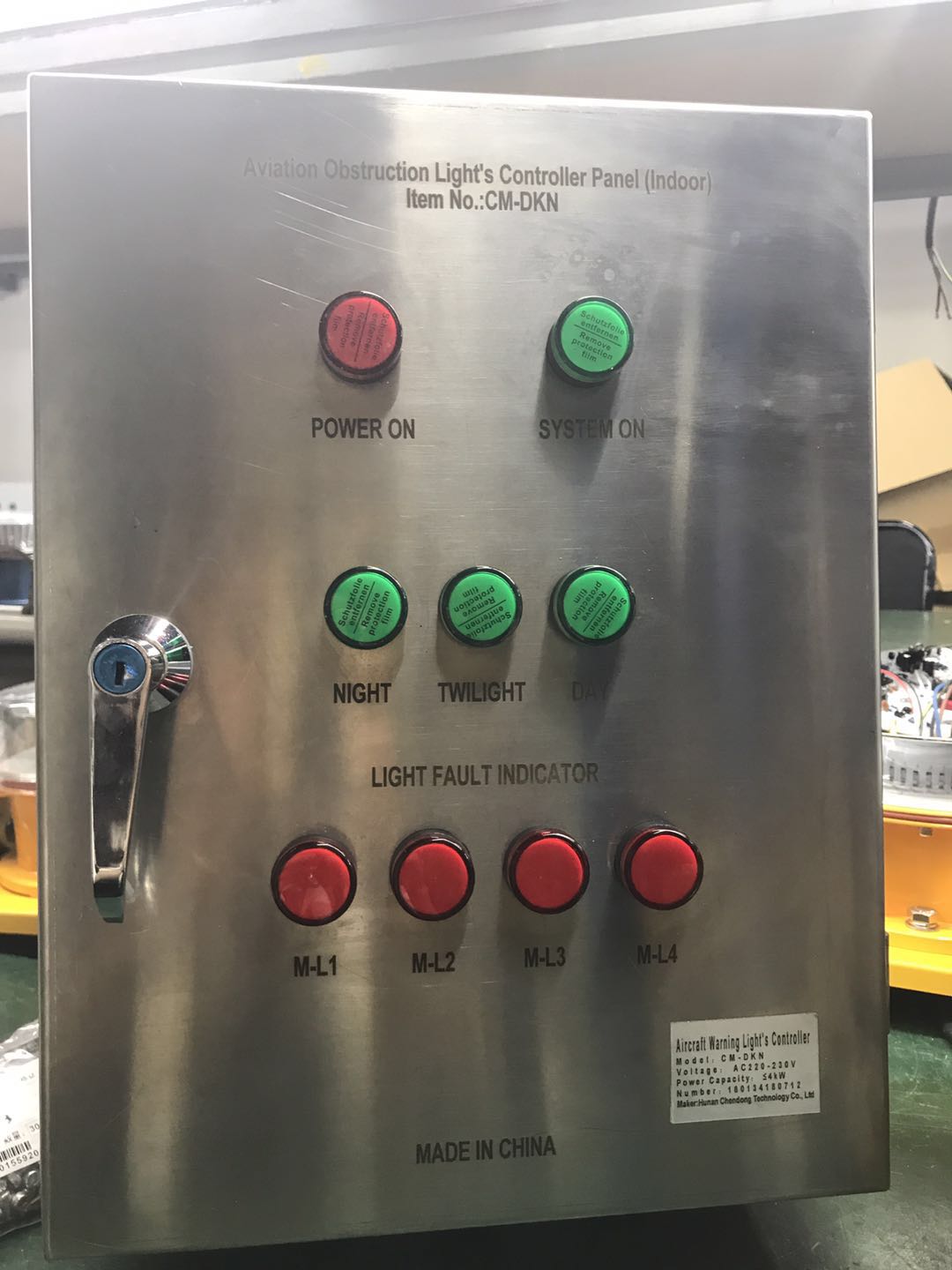

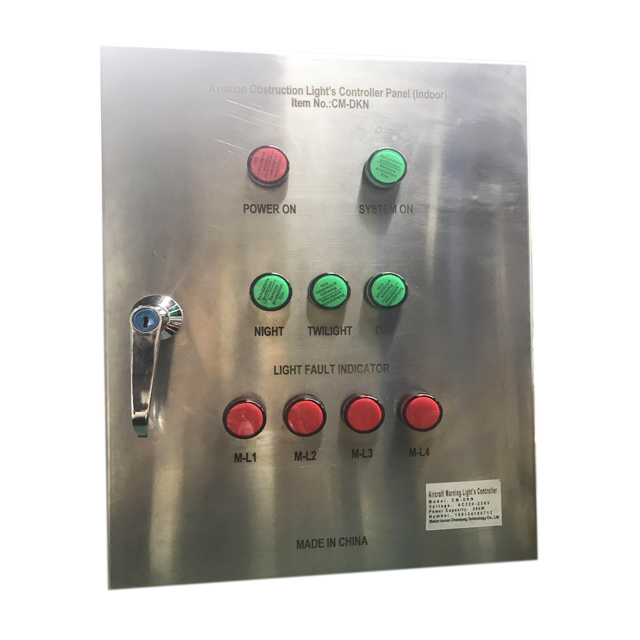

• Product Picture

• Parameter & Diagram

Parameter
Items	Parameter
Power Input	AC220-230V
Power Consumption	≤15W
Load Capacity	≤4KW
Controlled the light intensity	20-60 times/min
Controlled light quantity	200PCS
Ingress Protection	IP43
Photocell sensitivity	50~500Lux
Environment temperature	-40℃~45℃
Altitude	≤4500m
Environment humidity	≤95%
Wind Load	80m/s
Net Weight	10kg
Overall Size	460mm*300mm*153mm

Structure

Control with 3pcs Obstruction lights (GPS and Photocell)

Photocell	GPS
Photocell with a-10-meter cable,which is installed the non-obstacle place.Even more,do not point at other light source in case of effecting its working.	GPS receiver is built-in a length of 10m cable,which should be installed a place without obstacles.There is magnet in the bottom,which can be absorbed on any steels.

• Specification

1. Use the steel shell and spray coating techniques, resistance to corrosion, anti-UV.
2. The voltage of the power circuit and signal control line is same, so the connection of the
   wires are simple and reliable, it will not cause damage to the lightings and controller when
   connect the error line shortly.
3. Control circuit use the MCU control, can simultaneously control 4000W load power /
   within 200 units aviation obstruction lights synchronized flashing or steady.
4. Controller have 3 kinds operating modes: automatic, manual, close
   Automatic mode: automatically shutdown during the day, turn off the aviation light
   control output;
   automatically turn on at night an open aviation light control output.
   Work in manual mode: work status is forced open
   Work close mode: work status is forced closed, three operating modes can be switched by
   the user .
5. The controller can also customize the fault alarm function, when one of the lights working
   abnormally controlled failed, the indicator on the controller can be shown, also could use the
   dry contacts to alarm the external environment .
6. The function of this aviation obstruction light controller is very powerful, performance is
   reliable and safe. Use and maintenance are simple and convenient; and with anti-surge device
   (anti-lighting In15KA /5 times, Imax 40KA), can be applied to a poor working environment.
