Home > Products > Helicopter Heliport Green LED 8 inch Helipad Semi-Flush Perimeter Inset Light
Helicopter Heliport Green LED 8 inch Helipad Semi-Flush Perimeter Inset Light
Click on the image to view the original image
Product： views：4Helicopter Heliport Green LED 8 inch Helipad Semi-Flush Perimeter Inset Light
Branch： CM
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:40
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V/6.6A
Lamp Power(W):
15
Lamp Luminous Flux(lm):
0
Lamp Luminous Efficiency(lm/w):
0
CRI (Ra):
0
Color Temperature(CCT):
0
Beam Angle(°):
360
IP Rating:
IP68
Certification:
BV, CCC, CE, SASO
Emitting Color:
Green
Lamp Body Material:
Aluminum Alloy
Base Type:
Others
Light Source:
LED, Green
Place of Origin:
Hunan, China
Brand Name:
CM
Light Intensity:
30cd
Life span:
>100,000 hours
Ingress Protection:
IP68
Light Barrel Size:
220mmx160mm
Supply Ability
Supply Ability:
500 Piece/Pieces per Month Perimeter Inset Light
Packaging & Delivery
Packaging Details
Export Carton or Wooden case
Port
Guangzhou Shanghai
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)15To be negotiated
Product Description
  • Drawing sheet of Heliport

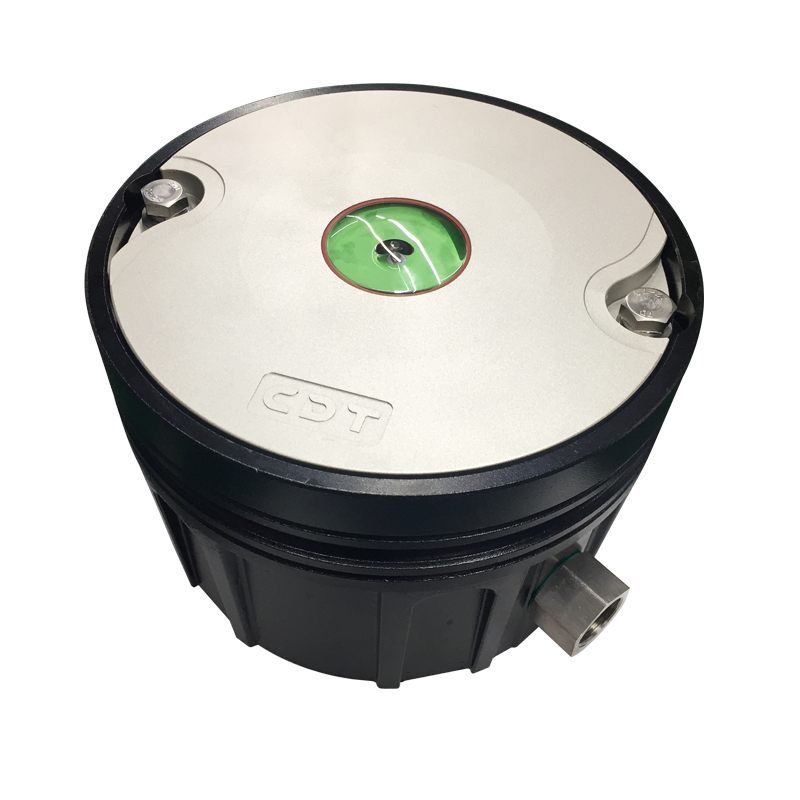

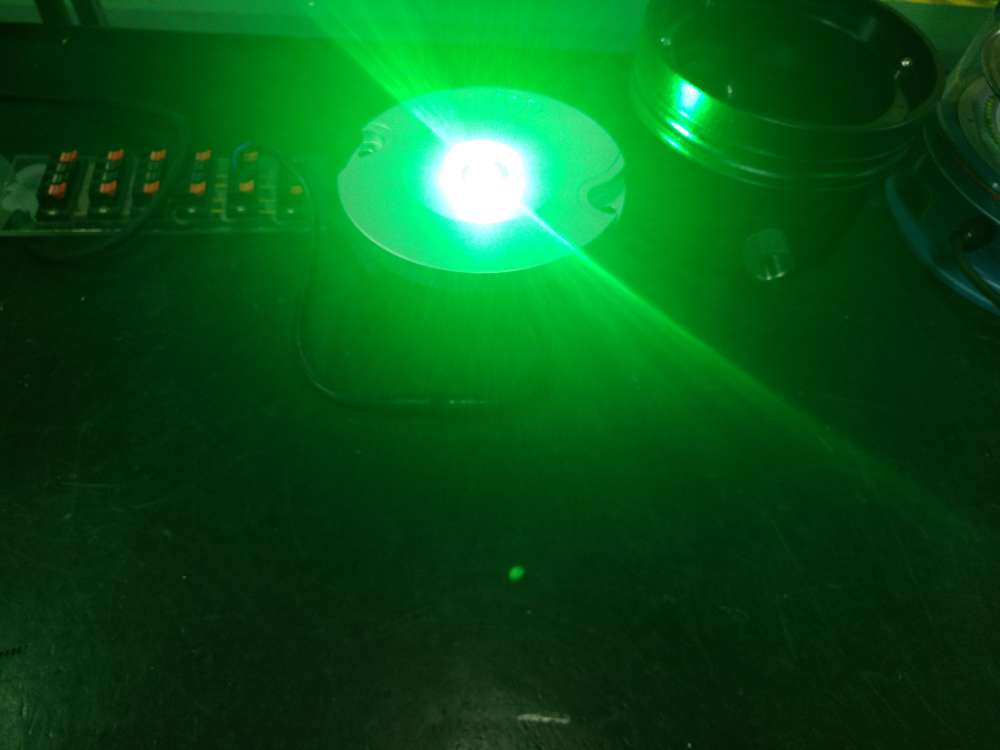

  • Product Picture

  • Parameter & Diagram
ItemParameter
ModelCM-HT12/CQ
Operating VoltageAC220V/6.6V(other available)
Power consumption≤15W
Light Intensity100cd
Life span>100,000 hours
Light SourceWhite LED
Emitting colorWhite
Ingress ProtectionIP68
Enviroment Humidity0-100%
Altitude≤2500m
Operating temperature-40℃~55℃
Net weight3.5KG
Wind load80m/sec.
Net Weight6.5KG
Light Barrel Size220mmx160mm
  • Specification
  1. The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact
    strength: 90), thermal stability (service temperature can be 130℃), great transparency
    (available with a light transmission of up to 90%), auto-UV resistance, aging resistance
    and flammability rating in UL94V0.
  2. House of the light is made of aluminum liquid casting and oxidation treatment, the
    product features are omniseal, water tightness and corrosion resistance.
  3. Light source adopts the international advanced LED featuring low power consumption,
    high efficiency and light source lifespan reaching 100,000 hr.
  4. The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the
    harsh environment.
