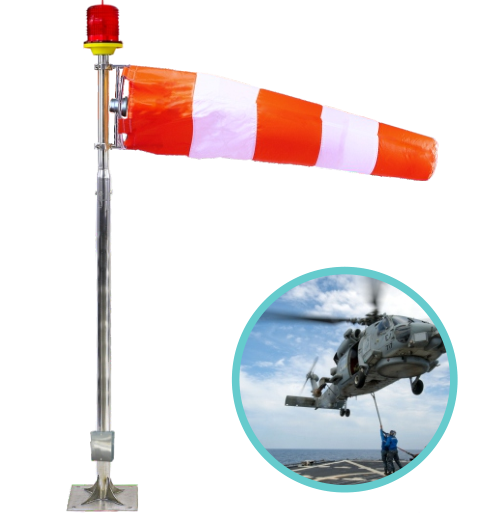

Heliport windsock used in the airport or helipads CDT CM-HT12F
CM-HT12/F heliport wind vane is to indicate the wind direction of the final approach and take-off,it can make a general indication to the wind speed.According to the ICAO provisions for each airport must be set at least one wind vane.It"s installation location must not interferenced by nearby objects or the airflow blowed by the rotor,and must be guaranteed the helicopter can be clearly identified at least in 200 meters away.
CM-HT12/F Illumination Vane can be used as a sign in all kinds of airport to observe the wind power and wind direction in both daytime and night.

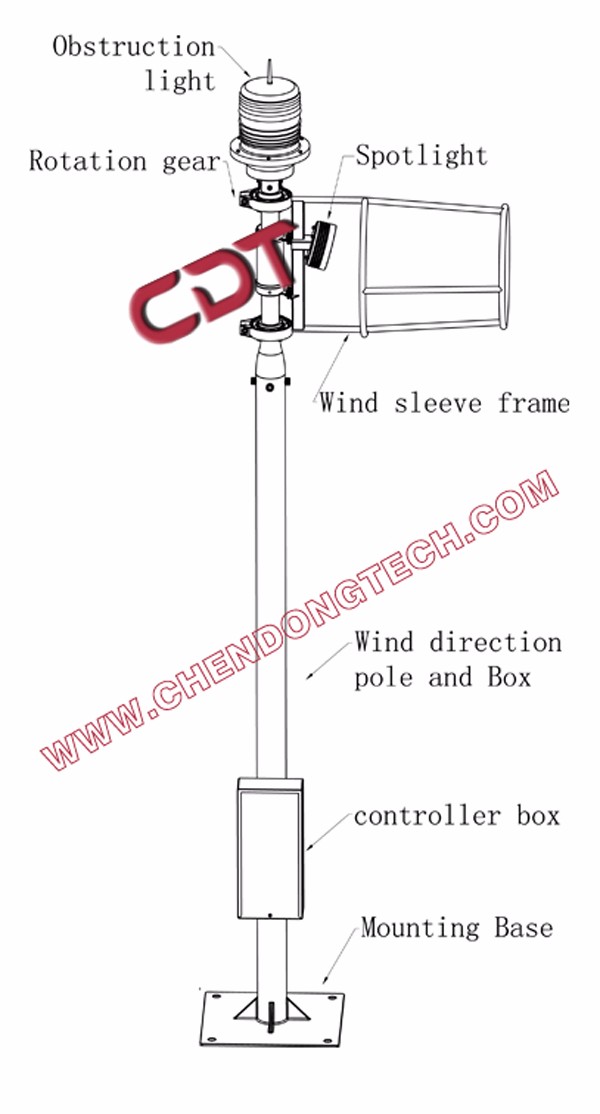

On the top installed one red LED obstruction light, provide the obstacle hint for the pilot at night.
On the upper of the pole installed a light stainless wind sleeve frame and one 360°rotation gear.
Inside of the wind sleeve frame installed one waterproof LED spotlight, it will turn with the wind sleeve, could light the wind sleeve directly, not like the old outside flood light, then eliminate the power consumption and against the eye flare.
On the wind sleeve frame installed one wind sleeve which is made of corrosion-resistant and high-temperature-resistant nylon and anti-UV material, the lifetime is long. The color is red(orange) and white, have 5 sections, the start color is red(orange).
The wind sleeve including 3 dimensions according to the pole"s height.
1.The diameter is 300mm, the diameter at small end is 150mm and the length is 1.2m
2.The diameter is 600mm, the diameter at small end is 300mm and the length is 2.4m
3.The diameter is 900mm, the diameter at small end is 450mm and the length is 3.6m
How to choose the wind sleeve?
Below 4m, use the first type;
Between 4m to 6m, use the second type;
Above 6m, use the third type.
On the bottom of the pole, it has a control box, you could choose the wind vane with the photoswitch;the power supply cable into the control box directly.
The pole and the base all use the SUS304 stainless. The windsock height could be 2m,3m,4m,5m,6m or as buyer"s requirements; when the total height more than 9m,you could add the stay wire in order to increase the stability; when the windsock height more than 4m, you could choose the hinges base so that could install more steady.
If interested,Pls contact with me.Thanks
Any interesting,Pls contact with us!!!!!
If interested,Pls contact with me.Thanks
Application
Tower ,Crane
Wind Power Generator
High-Building
Chimney,Heliport
Water or Cooling Tower
Certification
ICAO
FAA
CAAC
CE
Company Type
Synchronized Flashing Units Can"t work Simultaneously
A.Monitor Function Type Requires Power Line seperate from signal line,the power circuit of each unit can be independently connected,pls check signal circuit was connected by corresponding color when ensure power supply works normally.
B.Check if there"s short circuit or leakage phenomenon with the signal circuit after excluding the condition above.
Light-operated switch can"t work normally
A.The Unit can"t work at day: Pls check if the light-operated detector is closed over by dust;
B.The Unit can"t work at night: Pls check if light-operated detector is influenced by direct light or strong reflective light;
C.Testing the unit at day: Most of customers test the unit by Closing over the light-operated detector using their hands.Since the strong Radiation of sunshine,the light-operated function can"t work.The proper method is using 3 layers of black opacity adhesive tapes.
