Home > Products > ICAO/FAA CK-16 medium intensity aircraft warning LED type B Red flashing 20-60times/s telecom tower

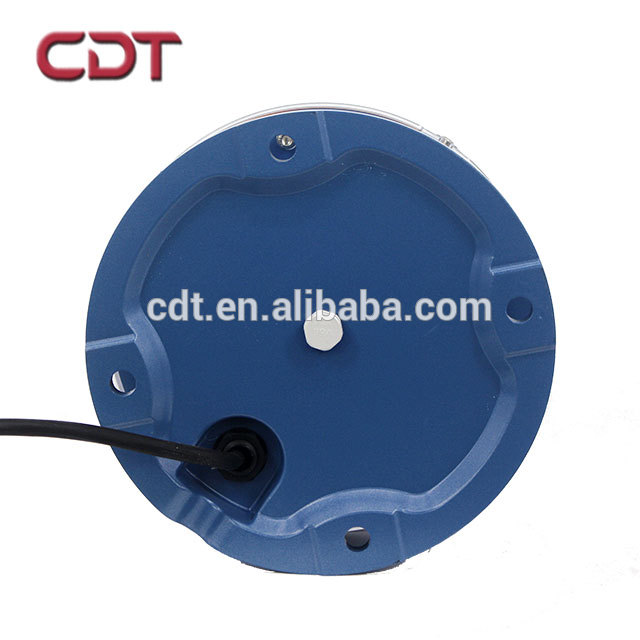

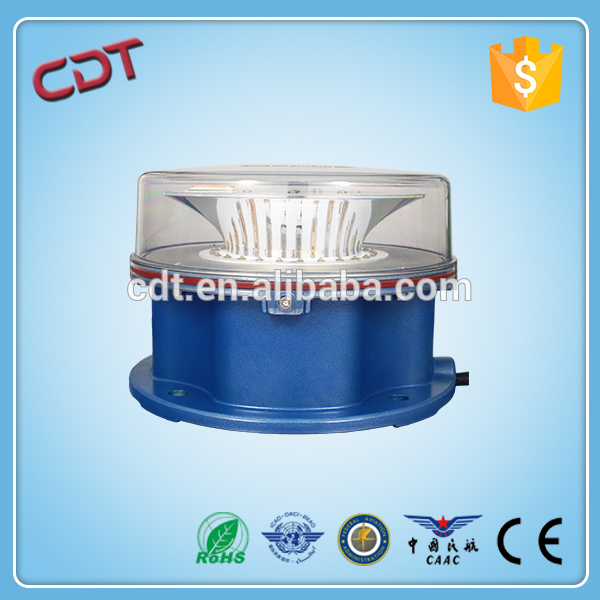

ICAO/FAA CK-16 medium intensity aircraft warning LED type B Red flashing 20-60times/s telecom tower
Click on the image to view the original image
Product： views：5ICAO/FAA CK-16 medium intensity aircraft warning LED type B Red flashing 20-60times/s telecom tower
Branch： CDT
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:45
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
DC12V DC24V AC230V
Lamp Power(W):
10
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
1
CRI (Ra):
1
Color Temperature(CCT):
Red
Beam Angle(°):
360
IP Rating:
IP65
Certification:
BV, CE, EMC, SASO
Emitting Color:
Red
Lamp Body Material:
PC
Base Type:
Other
Light Source:
LED
Place of Origin:
Hunan, China
Brand Name:
CDT
Overall Size:
Diameter:210*140mm
Color:
Red
Light Intensity:
1600-2000cd(±25%)
Power Consumption:
≤40W(day), ≤15W(night)
Beam angle for obstruction light:
360° horizontal beam angle≥4° vertical beam spread
Flashing frequency obstruction lights:
20-60times/min
Lightning protection level:
15KA
Light controlled sensitivity:
50lux
Net weight:
7KG
Application:
Airport,helipads,chimney,iron tower,building,civil airports
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carton Package or Wooden case
Port
Guangzhou,Shenzhen
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)7To be negotiated

ICAO/FAA CK-16 medium intensity aircraft warning LED type B Red flashing 20-60times/s telecom tower

ICAO/FAA CK-16 medium intensity aircraft warning LED type B Red flashing 20-60times/s telecom tower

Product Description




Specifications

ITEM

Parameter

Model

CK-16

Operating voltage

AC220V(other available)

Power consumption

≤40W(day), ≤15W(night)

Flashing frequency

20~60times/min.

Peak light intensity

≥1600cd

Light source

RED LED

Lifespan

≥500000 hours

Emitting color

RED

Beam angle

360° horizontal beam angle  ≥4° vertical beam spread

Overall size(mm)

210*140

Ingress protection

IP65

Lightning protection level

15KA

Light controlled sensitivity

50lux

Operating temperature

-55℃~55℃

Net weight

7kg

Wind load

80m/sec



















































Instructure Drawing





Key  Feature

1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%,

    quite high impact resistance and fit the bad environment very well.

2. House of the light is made of aluminum alloy and steel, painted by spraying plastic, the structure

    is high strength ,resistance to corrosion

3. Using Parabolic reflector optical design, range further

4. Light source adopts LED with long lifespan ,lower power consumption and high efficiency

5. Based on the single chip computer control , automatic identification syncsignal ,do not distinguish

    the main light and auxiliary light ,and also could be controlled by controller

6. Same power supply voltage with synchronous signal , integrate in power supply cable ,eliminate

    the damage by error installation caused

7. Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.

8. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times,

    Imax 15KA so that the light is suitable to harsh environment

9. Integral structure, protection lever of IP65.

10. Ignitability rate UL-94V0, fit for all kinds of industrial situation , GPS synchronizing function



Certifications&Honor

Certification

     Our products have benn approved the ICAO certificate,CE/ROHS.

Our Services

   Why Choose us?

1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.

2.All products are passed QC inspection.

3.CE,RoHS,ICAO Certificate.

4.Short Time delivery.Competitive price.

5.24Hours online technical support and lifetime after-sale services.



  What"s the warranty?

Our warranty is:2 years



Packaging & Shipping

 Packing and shipments





Company Information





About US

         Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan. Where is known as Yulu Mountain, a part among Nanyue Hengshan Mountain and Yuelu Academy with a thousand years history. CDT is a hi-tech company that focus on R&D, production and sale all kinds of aviation obstruction light and green light for airport navigation.

      CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms cooperation with enterprises as ZTE, State Grid Corporation of China, China Southern Power Grid, CAH, CWAG and Hunan Airport Management Group etc.

     As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 50 countries in Southeast Asia, Middle East, America, Africa and Oceania.

     CDT take innovation and factualism, honesty and trustworthiness as our operation principle, and promise to offer the most competitive price, thoughtful services and excellent products.Now, we are dedicating to making CDT a century enterprise in aviation obstruction lights field. To become a healthier, safer and more environment friendly hi-tech company, CDT are here to serve airports throughout the world.
