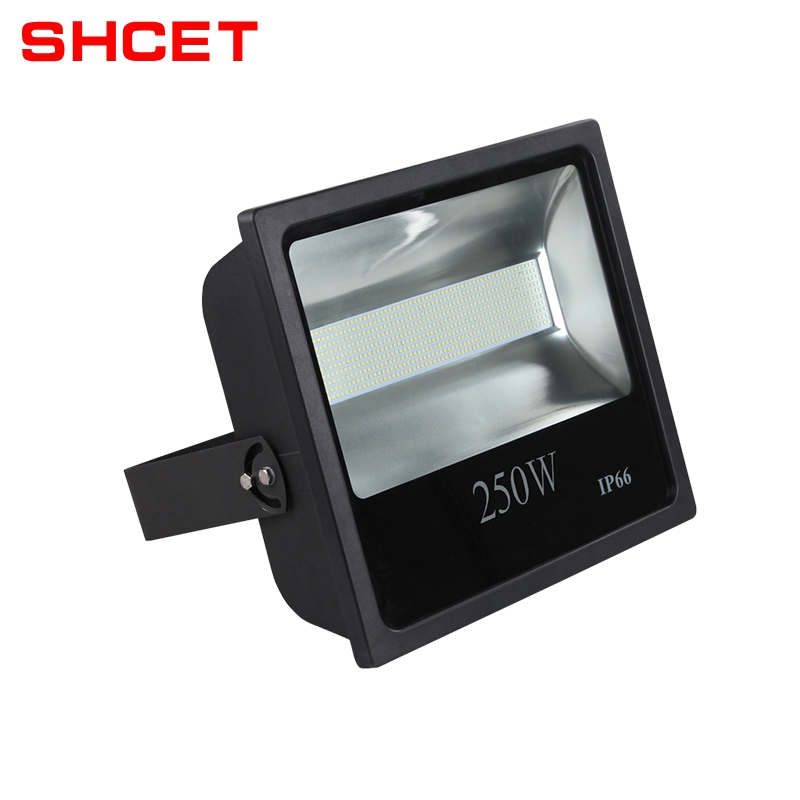

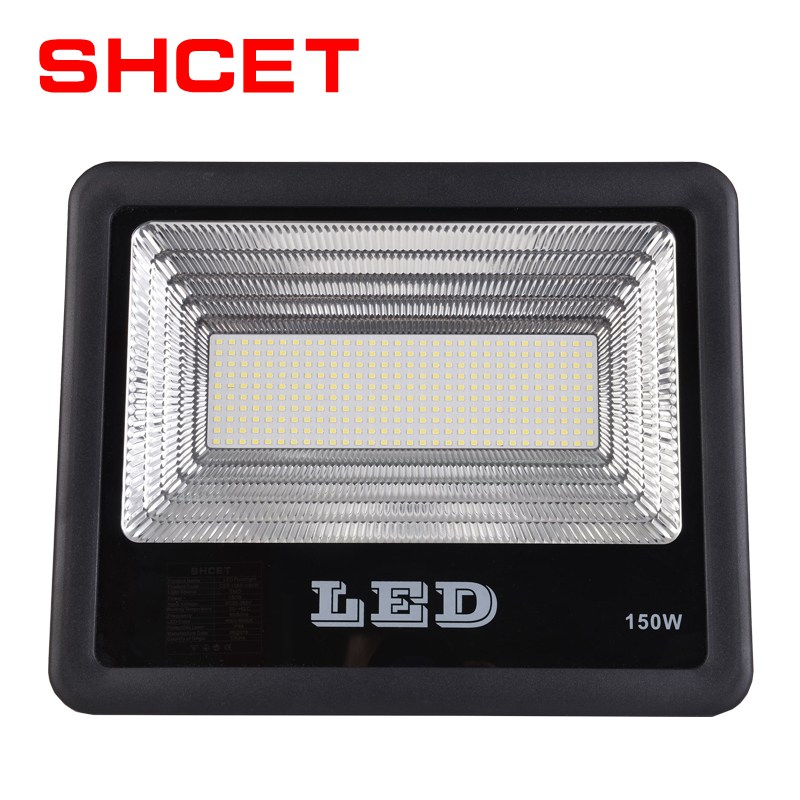

2019 Hot Selling High Quality LED Flood Light Outdoor Lighting

Click on the image to view the original image

Product：	views：82019 Hot Selling High Quality LED Flood Light Outdoor Lighting
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:40

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-277V

CRI (Ra>):: 70

Beam Angle(°):: 120 Degree

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP65 or IP66

Certification:: BV, CE, EMC, LVD, RoHS, VDE

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-108A~CET-115

Application:: WAREHOUSE/OFFICE/HOTEL/ETC

Light Source:: LED

Product Name:: LED Flood Light

Color Temperature(CCT):: 2700-6500K

Lamp Luminous Flux(lm):: 20000

Working Temperature(℃):: -50 - 75

Material:: aluminum

Shape:: Square

Warranty:: 3 Years

Body Color:: Black; White

IK protect:: IK08

OEM:: Available

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs/inner colorful box, can design colorful box with your logo,
loaded in master carton box for standard export

Port: Guangzhou

Lead Time:

Quantity(Pieces)	1 - 10000	>10000
Est. Time(days)	10	To be negotiated

1.Product Description

LED floodlights are also known as spotlights, and are used to focus on and illuminate specific objects or areas. The housing on our LED flood lights is made of an aluminum die casting and a 4mm thick tempered glass, ensuring they are weather resistant. LED flood lights are often used in mines, buildings, stadiums, overpasses, monuments, parks and other areas.

2.Specification

SMD LED Floodlight

Model	CET-108A-10W SMD	CET-108A-20W SMD	CET-108A-30W SMD	CET-108A-50W SMD	CET-108A-100W SMD	CET-108A-150W SMD	CET-108A-200W SMD	CET-108A-300W SMD
Lamp Power	10W	20W	30W	50W	100W	150W	200W	300W
Product size(mm)	124x110x37	146x126x37	19516540	230x195x57	297x250x57	355x290x57	428x328x65	500x400x65
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.6	>0.6	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
SPD	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White or Grey
Diffuser	Aluminium or PC
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, UL, CUL, SAA, Intertek TIR

SMD LED Floodlight/Big Size Diffuser

Model	CET-108-AA 30W SMD	CET-108-AA 50W SMD	CET-108-AA 100W SMD	CET-108-AA 150W SMD
Lamp Power	30W	50W	100W	150W
Product size(mm)	19516540	230x195x57	297x250x57	355x290x57
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
SPD	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White or Grey
Diffuser	PC
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, ISO9001,SAA, Intertek TIR

RGB SMD LED Floodlight

Model	CET-108AA-RGB 30W	CET-108AA-RGB 50W	CET-108AA-RGB 100W
Lamp Power	30W	50W	100W
Product size(mm)	19516540	230x195x57	297x250x57
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Color Temperature	RGB with controller
IP Grade	IP65 or IP66
Life Time	30000H DOB Type
Input Voltage	AC165-277V
Body Color	Black or White
Diffuser	PC
Certificate	BIS,CE-LVD-EMC,RoHs ,IES,EAC, ISO9001, Intertek TIR

COB LED Floodlight

Model	CET-108B-10W COB	CET-108B-20W COB	CET-108B-30W COB	CET-108B-50W COB	CET-108B-100W COB	CET-108B-150W COB	CET-108B-200W COB	CET-108B-300W COB
Lamp Power	10W	20W	30W	50W	2X50W	3X50W	4X50W	6X50W
Product size(mm)	124x110x37	146x126x37	19516540	230x195x57	297x250x57	355x290x57	428x328x65	500x400x65
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.6	>0.6	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
Surger Protector	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White or Grey
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,EAC, ISO9001, SAA, Intertek TIR

RGB COB LED Floodlight

Model	CET-108B-RGB 10W	CET-108B-RGB 20W	CET-108B-RGB 30W	CET-108B-RGB 50W	CET-108B-RGB 100W	CET-108B-RGB 150W
Lamp Power	10W	20W	30W	50W	2X50W	3X50W
Product size(mm)	124x110x37	146x126x37	19516540	230x195x57	297x250x57	355x290x57
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Color Temperature	RGB with controller
IP Grade	IP65 or IP66
Life Time	30000H
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White
Certificate	BIS,CE-LVD-EMC,RoHs ,IES,EAC, ISO9001, Intertek TIR

NEW COB LED Floodlight

Model	CET-108C-50W New COB	CET-108C-100W New COB	CET-108C-150W New COB	CET-108C-200W New COB	CET-108C-300W New COB	CET-108C-400W New COB	CET-108C-500W New COB	CET-108C-600W New COB	CET-108C-700W New COB
Lamp Power	50W	2X50W	3x50W	4x50W	6X50W	8X50W	10X50W	12X50W	14X50W
Product size(mm)	230x195x57	297x250x57	355x290x57	428x328x65	500x400x65	520x365x100	625x365x100	735x365x100	840x365x100
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
Surger Protector	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White
Diffuser	PC Round or Square
Certificate	BIS,CE-LVD-EMC,RoHs ,IES,EAC, ISO9001, Intertek TIR

Modular LED Floodlight

Model	CET-110-30W	CET-110-50W	CET-110-100W	CET-110-150W	CET-110-200W	CET-110-250W	CET-110-300W	CET-110-400W	CET-110-500W	CET-110-600W
Lamp Power	30W	50W	2X50W	3x50W	4x50W	5X50W	6X50W	8X50W	10X50W	12X50W
Product Size	3005025	175350756	25035075	34035075	41035075	48535075	66529575	66537075	66545575	66553575
Material	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC
Power Factor	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
Shine Angle	30° or 60° or 90°
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
SPD	2.5KV-4KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Grey or Black
Diffuser	pc lens
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,EAC, ISO9001, Intertek TIR

Lens SMD LED Floodlight

Model	CET-109-30W SMD	CET-109-50W SMD	CET-109-100W SMD	CET-109-150W SMD	CET-109-200W SMD
Lamp Power	30W	50W	100W	150W	200W
Product size(mm)	198x188x46	238x228x46	290x280x59	330x320x65	360x350x65
Material	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC	Die-Alu+PC
Power Factor	>0.6	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
Shine Angle	60° or 90°
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
SPD	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	White or Black
Diffuser	pc lens
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, UL, CUL, SAA, Intertek TIR

DOB SMD LED Floodlight

Model	CET-115-10W SMD	CET-115-20W SMD	CET-115-30W SMD	CET-115-50W SMD	CET-115-100W SMD	CET-115-150W SMD	CET-115-200W SMD
Lamp Power	10W	20W	30W	50W	100W	150W	200W
Product size(mm)	102x85x28	120x95x30	159x120x31	205x160x33	269x210x35	380x280x45	400x280x45
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W;
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	30000H, DOB Type
SPD	2.5KV-4KV
Input Voltage	AC165-277V Or AC90-130V
Body Color	Black or White
Diffuser	PC
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,EAC, ISO9001, Intertek TIR

SMD LED Floodlight

Model	CET-111-10W SMD	CET-111-20W SMD	CET-111-30W SMD	CET-111-50W SMD	CET-111-100W SMD	CET-111-150W SMD	CET-111-200W SMD	CET-111-250W SMD
Lamp Power	10W	20W	30W	50W	100W	150W	200W	250W
Product size(mm)	135x115	183x155	222x192	282x238	345x295	345x325	375x375	440x395
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.6	>0.6	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
Surger Protector	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or Grey
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,EAC, ISO9001, Intertek TIR

COB LED Floodlight

Model	CET-111-10W COB	CET-111-20W COB	CET-111-30W COB	CET-111-50W COB	CET-111-100W COB	CET-111-150W COB	CET-111-200W COB	CET-111-250W COB
Lamp Power	10W	20W	30W	50W	2X50W	3X50W	4X50W	5X50W
Product size(mm)	135x115	183x155	222x192	282x238	345x295	345x325	375x375	440x395
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.6	>0.6	>0.9	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
Surger Protector	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or Grey
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,EAC, ISO9001, Intertek TIR

SMD LED Floodlight

Model	CET-107-20W	CET-107- 30W	CET-107-50W	CET-107- 100W	CET-107-150W	CET-107-200W
Lamp Power	20W	30W	50W	100W	150W	200W
Product size(mm)	128x120x43	184x180x45	226x221x53	285x275x66	293x293x90	336x317x95
Material	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass	Die-Alu+Glass
Power Factor	>0.6	>0.6	>0.9	>0.9	>0.9	>0.9
Color Temperature	3000-3500K;4000-4500K;6000-6500K
Lamp Flux	80-85LM/1W; 90-100LM/1W; 100-120LM/1W
IP Grade	IP65 or IP66
CRI	Ra>70
Life Time	50000H
SPD	2.5KV-4KV-6KV-10KV
Input Voltage	AC85-305V or AC165-277V
Body Color	Black or White or Grey
Diffuser	PC
Certificate	BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, ISO9001,SAA, Intertek TIR

3.Features

Have a special life span
Energy-saving: Compared with incandescent lamp, energy-saving up to 75%, 85W floodlight fluxes and 500W incandescent lamp fluxes roughly the same.
Environmental protection: It uses solid mercury agent, even if broken will not cause pollution to the environment, there are more than 99% of the recoverable rate, is the real environmental protection green light source.
No stroboscopic: Because of its high frequency of operation, it is considered as "completely without stroboscopic effect", will not cause eye fatigue, eye health protection.
Good color rendering: color index is greater than 80, light color soft, showing the natural color of the object.
Color temperature optional: from 2700K to 6500K by the customer according to the needs of choice, and can be made into color bulbs for garden decoration lighting.
The visible light ratio is high: in the emitted light, the visible light ratio is more than 80%, the visual effect is good.
No need to warm up. It can start and restart immediately, and there will be no light fading phenomenon in ordinary electrified discharge lamps.
Excellent electrical performance: high power factor, low current harmonics, constant voltage supply, output constant light flux.
The installation is adaptable: it can be installed in any direction without restriction.

4.Installation Guide

1.Loosen the screws on the bracket, and mark the drilling position on the installation site.

2.Drill a hole on the marked position.

3.Attach the bracket to the installation site using screws.

4.Attach the lighting fixture to the bracket using screws.

5.More Products

6.Application&Production Process

Main applications: billboards, highways, railway tunnels, bridges and culverts, squares, buildings, etc.

7.Packaging&Shipping&CERTIFICATE

8.FAQ

Q1: Can I have a sample for testing?

A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?

A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q4: Do you have inspection procedures for products?

A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory.

Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen

Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.

Q6: How about delivery time of the order?

A: 15-20 days after getting deposit.

Q7: How about payment terms?

A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
