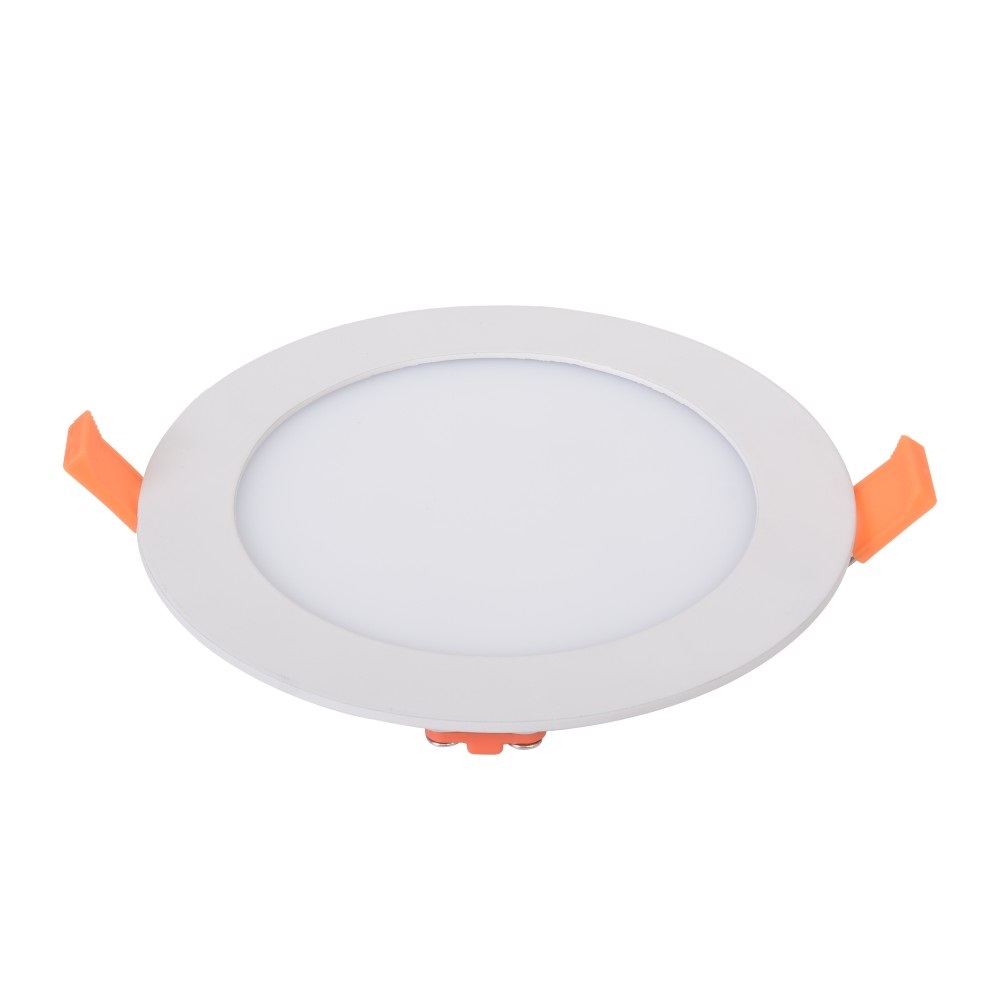

CET-127 3W CE certificate Round LED wall panel light

Click on the image to view the original image

Product：	views：3CET-127 3W CE certificate Round LED wall panel light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 270

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-127 3W

Light Source:: LED

Product Name::: CET-127 3W CE certificate Round LED wall panel light

Power Factor::: >0.90

LED Driver::: Isolated Driver

Product Size::: 85mm

Shape::: Round

Surge Protector::: 2.5KV

Body Color::: white, silver, golden, black, light wooden, dark wooden

Beam Angle::: 180Degree

Installation::: Recessed Type

OEM::: Available

Item Type:: Panel Lights

LED Light Source:: SMD2835

Warranty(Years):: 3

Lamp Power(W):: 3

Lamp Luminous Efficiency(lm/w):: 90

Color Temperature(CCT):: 2700-6500K

Supply Ability

Supply Ability:: 80000 Piece/Pieces per Day CET-127 3W CE certificate Round LED wall panel light

Packaging & Delivery

Packaging Details: 1PCS/inner colorful box, design colorful box with your logo and brand is OK, then load in mater carton box for export standard

Port: Guangzhou

Lead Time:: 20-25 Days

Product Description

CET-127 3W CE certificate Round LED wall panel light

Model	CET-127-3W	CET-127-4W	CET-127-6W	CET-127-9W	CET-127-12W	CET-127-15W	CET-127-18W	CET-127-24W
Lamp Diameter	Φ85mm	Φ105mm	Φ120mm	Φ145mm	Φ170mm	Φ190mm	Φ225mm	Φ300mm
Cut Out Size	75mm	95mm	100mm	125mm	150mm	180mm	205mm	280mm
LED Chips Quantity	15pcs	20pcs	30pcs	45pcs	60pcs	75pcs	90pcs	120pcs
Lamp Power	3W	4W	6W	9W	12W	15W	18W	24W
Lamp Flux	270LM	360LM	540LM	810LM	1080LM	1350LM	1620LM	2160LM
Lamp Material	AL+ PMMA
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
LED Chips Model	2835SMD 0.2W
Ra	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-265V Or AC220-240V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV

Power:3W

Voltage: AC110-265V

Diameter:85mm

Cutting Out:70-78mm

LED Chip: SMD2835(0.2W*15PCS)

LED Strip:173*6mm

Light Guide Plate:53.2*2.8mm

Diffusion Plate:53.2*1.2mm

Reflective Paper:54.8*0.3mm

Lamp Body: Aluminum
