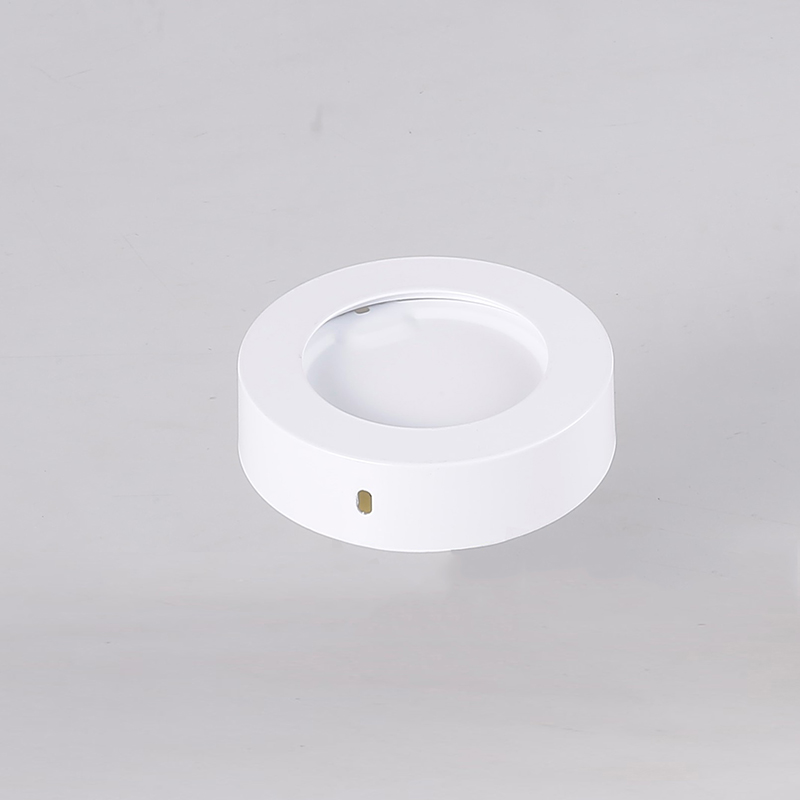

CET-127S 6W mount advertising led panel housing

Click on the image to view the original image

Product：	views：3CET-127S 6W mount advertising led panel housing
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 540

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-127S 6W

Light Source:: LED

Product Name::: CET-127S 6W mount advertising led panel housing

Power Factor::: >0.90

LED Driver::: Isolated Driver

Product Size::: 120mm

Shape::: Round

Surge Protector::: 2.5KV

Body Color::: white, silver, golden, black, light wooden, dark wooden

Beam Angle::: 180Degree

Installation::: Surface Type

OEM::: Available

Item Type:: Panel Lights

LED Light Source:: SMD2835

Warranty(Years):: 3

Lamp Power(W):: 6

Lamp Luminous Efficiency(lm/w):: 90

Color Temperature(CCT):: 2700-6500K

Supply Ability

Supply Ability:: 80000 Piece/Pieces per Day CET-127S 6W mount advertising led panel housing

Packaging & Delivery

Packaging Details: 1PCS/inner colorful box, design colorful box with your logo and brand is OK, then load in mater carton box for export standard

Port: Guangzhou

Lead Time:: 20-25 Days

Product Description

CET-127S 6W mount advertising led panel housing

Model	CET-127S-6W	CET-127S-12W	CET-127S-18W	CET-127S-24W
Lamp Diameter	Φ120mm	Φ170mm	Φ220mm	Φ300mm
LED Chips Quantity	30pcs	60pcs	90pcs	120pcs
Lamp Power	6W	12W	18W	24W
Lamp Flux	540LM	1080LM	1620LM	2160LM
Lamp Material	AL+ PMMA
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-265V Or AC220-240V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
