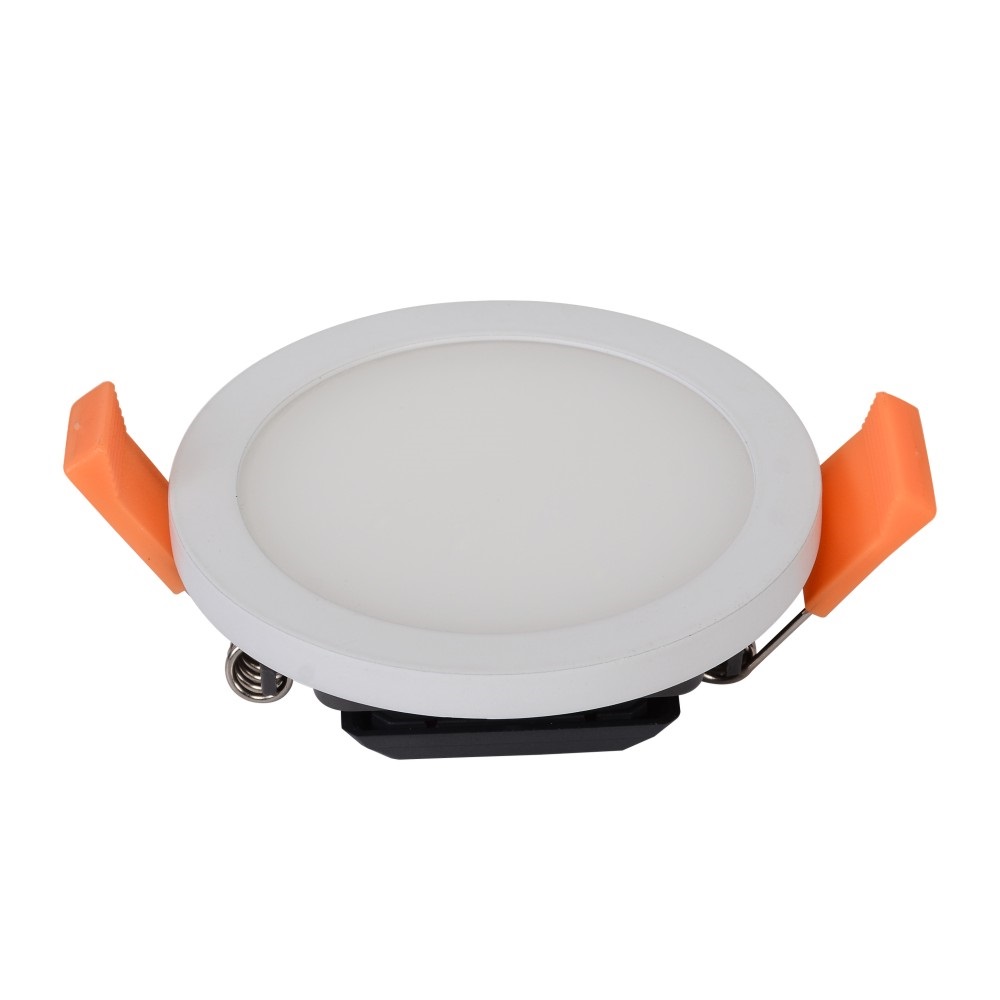

CET-137 5W ultra slim led flat panel wall light

Click on the image to view the original image

Product：	views：4CET-137 5W ultra slim led flat panel wall light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 450

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-137 5W

Light Source:: LED

Product Name::: CET-137 5W ultra slim led flat panel wall light

Power Factor::: >0.90

LED Driver::: Isolated Driver

Product Size::: 76mm

Shape::: Round

Surge Protector::: 2.5KV

Body Color::: white, silver, golden, black, light wooden, dark wooden

Beam Angle::: 180Degree

Installation::: Recessed Type

OEM::: Available

Item Type:: Panel Lights

LED Light Source:: SMD5730

Warranty(Years):: 3

Lamp Power(W):: 5

Lamp Luminous Efficiency(lm/w):: 90

Color Temperature(CCT):: 2700-6500K

Supply Ability

Supply Ability:: 80000 Piece/Pieces per Day CET-127 12W ultra thin round led panel light 12w

Packaging & Delivery

Packaging Details: 1PCS/inner colorful box, design colorful box with your logo and brand is OK, then load in mater carton box for export standard

Port: Guangzhou

Lead Time:: 20-25 Days

Product Description

CET-137 5W ultra slim led flat panel wall light

Model	CET-137-5W	CET-137-8W	CET-137-16W	CET-137-22W	CET-137-30W
Lamp Diameter	Φ76mm	Φ88mm	Φ145mm	Φ170mm	Φ220mm
Cut Out Size	58mm	70mm	122mm	142mm	200mm
LED Chips Quantity	10pcs	16pcs	32pcs	44pcs	60pcs
Lamp Power	5W	8W	16W	22W	30W
Lamp Flux	510LM	765LM	1020LM	1530LM	2040LM
Lamp Material	AL+ PMMA
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
LED Chips Model	5730SMD 0.5W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-265V Or AC220-240V
Body Color	white
Color Temperature	3000-3500K; 4000-4500K; 6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
