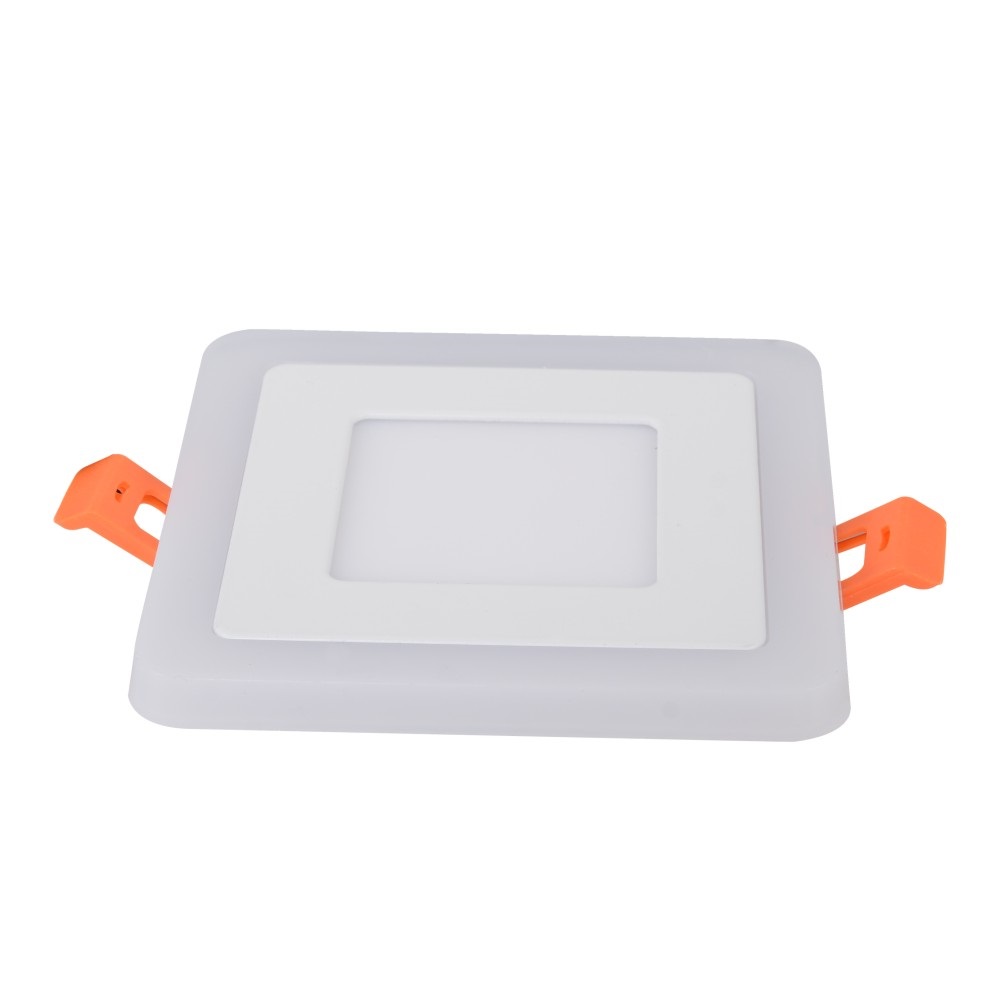

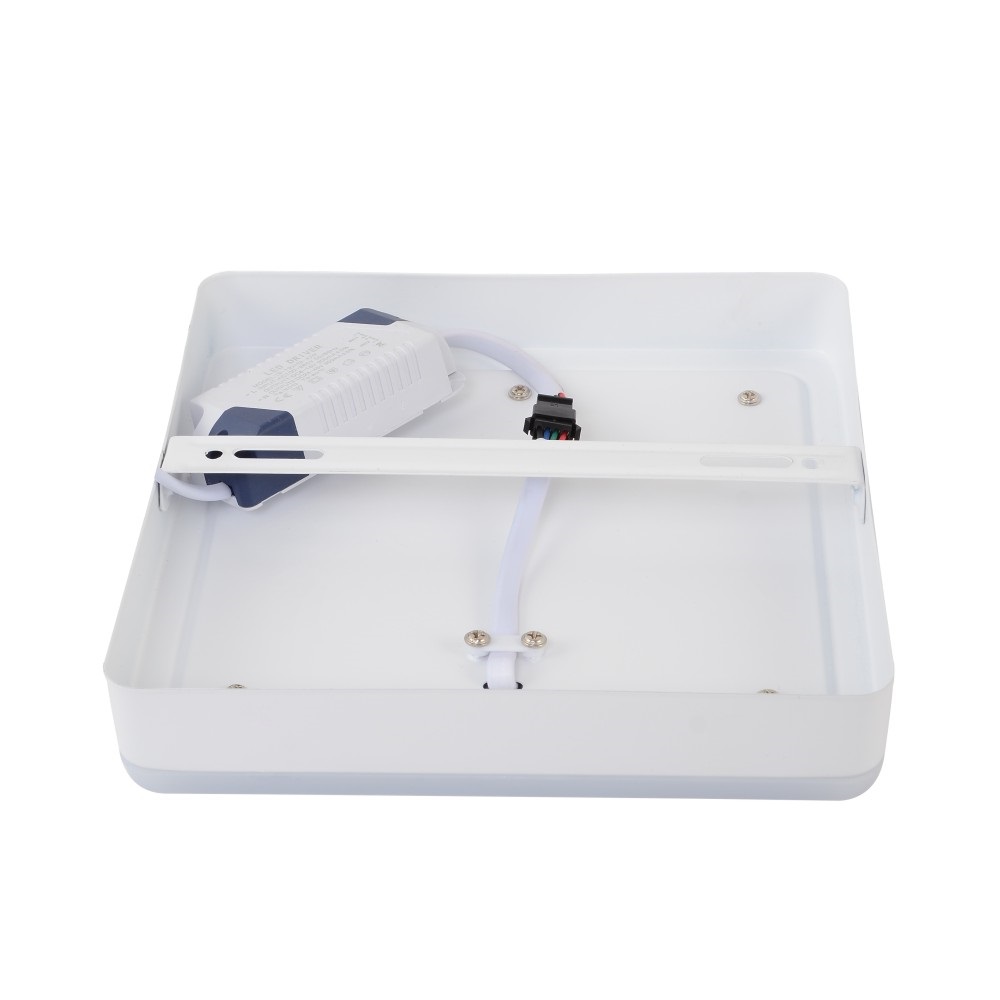

CET-130S 24W color temperature adjustable led panel light

Click on the image to view the original image

Product：	views：4CET-130S 24W color temperature adjustable led panel light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 2160

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-130S 24W

Light Source:: LED

Product Name::: CET-130S 24W color temperature adjustable led panel light dimmable

Power Factor::: >0.90

LED Driver::: Isolated Driver

Product Size::: 245mm

Shape::: Square

Surge Protector::: 2.5KV

Color Temperature:: 2700-6500K; Blue; Red; W; G; Purple; Pink; Orange; Yellow RGB

Beam Angle::: 180Degree

Installation::: Recessed Type

OEM::: Available

Item Type:: Panel Lights

LED Light Source:: SMD 2835

Warranty(Years):: 3

Lamp Power(W):: 24

Lamp Luminous Efficiency(lm/w):: 90

Color Temperature(CCT):: 2700-6500K and RGB

Supply Ability

Supply Ability:: 80000 Piece/Pieces per Day CET-130S 24W color temperature adjustable led panel light dimmab

Packaging & Delivery

Packaging Details: 1PCS/inner colorful box, design colorful box with your logo and brand is OK, then load in mater carton box for export standard

Port: Guangzhou

Lead Time:: 20-25 Days

Product Description

CET-130S 24W color temperature adjustable led panel light dimmable

Model	CET-130S-6W	CET-130S-9W	CET-130S-18W	CET-130S-24W	CET-130S-36W
Lamp Diameter	105*105mm	145*145mm	195*195mm	245*245mm	320*320mm
Cut Out Size	75mm	105mm	155mm	210mm	280mm
LED Chips Quantity	30pcs	45pcs	90pcs	120pcs	180pcs
Lamp Power	3+3W	6+3W	12+6W	18+6W	24+12W
Lamp Material	AL+ PMMA
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
LED Chips Model	2835SMD
CRI	70-75
Power Factor	0.6-0.7
Input Voltage	AC85-265V Or AC220-240V
Body Color	white
Color Temperature	In the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
