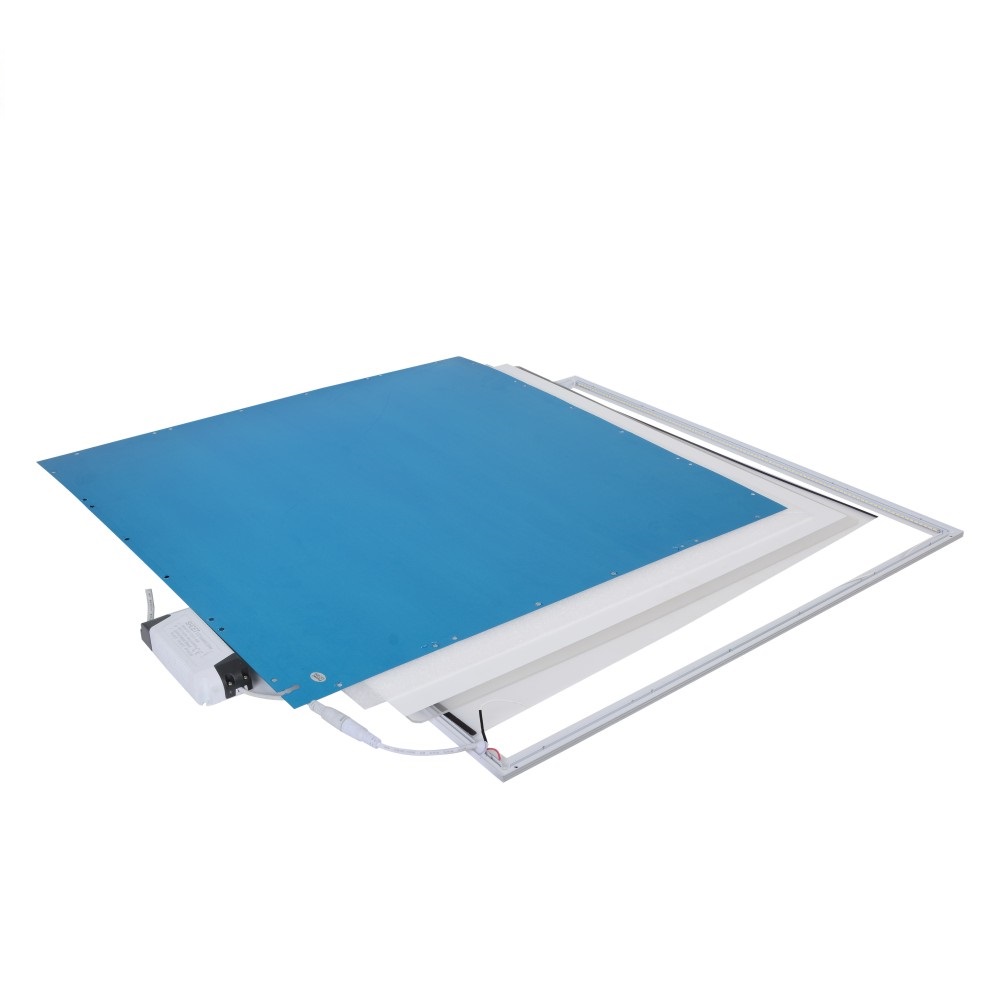

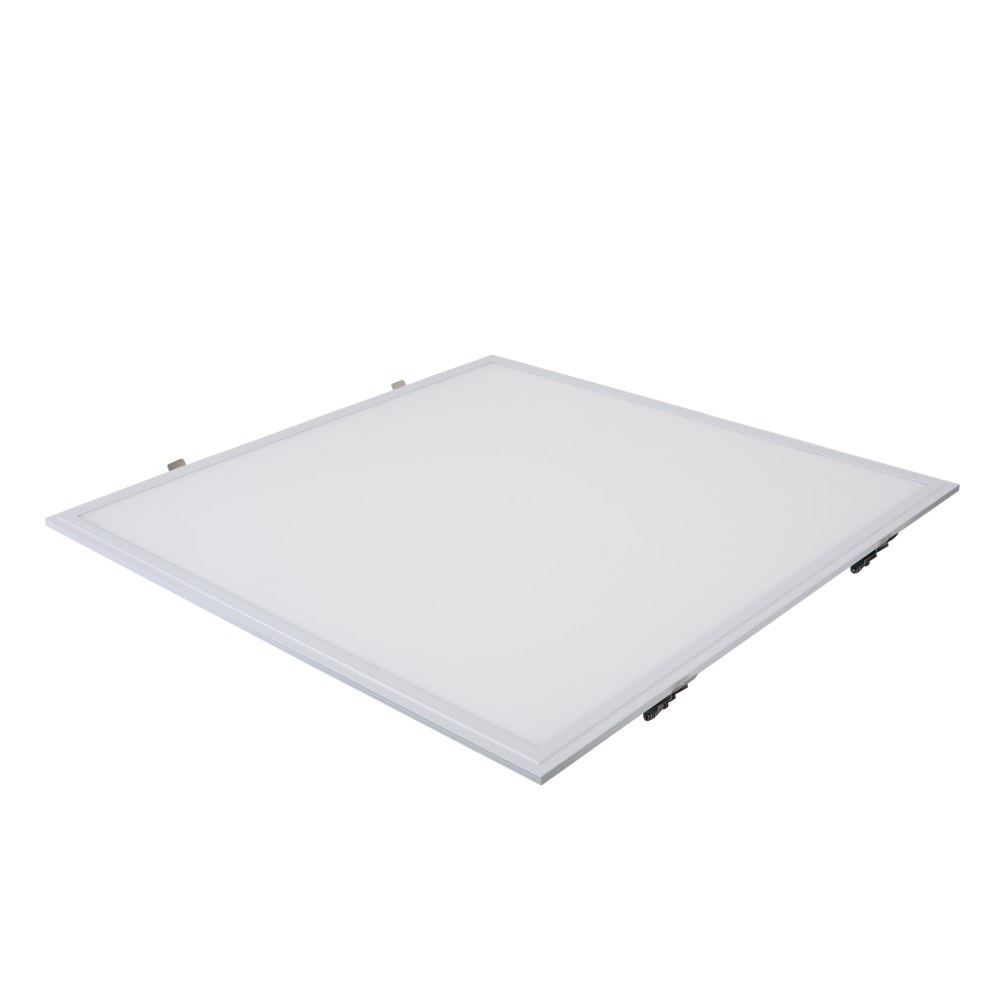

CET-131/C 36W panel led light 600x600

Click on the image to view the original image

Product：	views：4CET-131/C 36W panel led light 600x600
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 3600

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-131/C-36W

Light Source:: LED

Product name:: CET-131/C 36W panel led light 600x600

Power factor:: >0.9

LED driver:: Isolated Diver

Product size:: 595x595mm or 600x600mm

Shape:: Square Shape

Body color:: White

Surger Protector:: 2.5KV

Beam Angle:: 180°

Installation:: Recessed Mounted

Optional accessories:: Springs or hanging wire

Item Type:: Panel Lights

LED Light Source:: SMD4014

Warranty(Years):: 3

Lamp Power(W):: 36

Lamp Luminous Efficiency(lm/w):: 100

Color Temperature(CCT):: 2700K-6500K

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month CET-131/C 36W panel led light 600x600

Packaging & Delivery

Packaging Details: 1pc packed in a carton box

Port: Guangzhou

Lead Time:: 20-25days

Product Description

CET-131/C 36W panel led light 600x600

Model	CET-131/A-30W	CET-131/B-36W	CET-131/C-36W	CET-131/C-40W	CET-131/C-48W	CET-131/C-60W
Lamp Size	300x300mm	300x600mm	595x595mm or 600x600mm
LED Chips Quantity	60pcs	180pcs	180pcs	200pcs	240pcs	120pcs
Lamp Power	30W	36W	36W	40W	48W	60W
Lamp Flux	3000LM	3600LM	3600LM	4000LM	4800LM	6000LM
LED Chips Model	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	2835SMD 0.5W
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
Lamp Material	AL+ PMMA
Ra	80-85
Power Factor	>0.95
Input Voltage	AC85-265V Or AC165-265V
Body Color	white; Silver;
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 90 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
