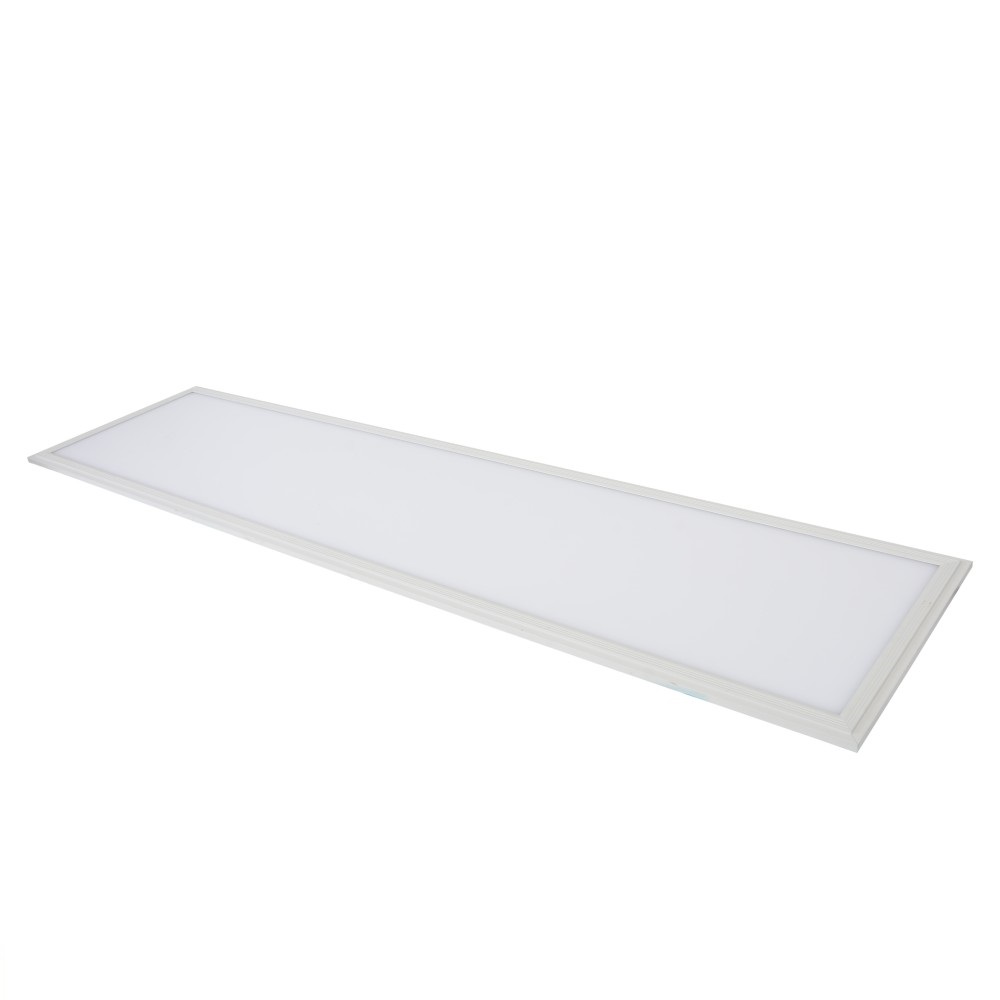

CET-131/E 36W led panel 1200x300 big size light

Click on the image to view the original image

Product：	views：3CET-131/E 36W led panel 1200x300 big size light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 3600

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-131/E-36W

Light Source:: LED

Product name:: CET-131/E 36W led panel 1200x300 big size light

Power factor:: >0.9

LED driver:: Isolated Diver

Product size:: 295x1195mm or 300x1200mm

Shape:: Square Shape

Body color:: White

Surger Protector:: 2.5KV

Beam Angle:: 180°

Installation:: Recessed Mounted

Optional accessories:: Springs or hanging wire

Item Type:: Panel Lights

LED Light Source:: SMD4014

Warranty(Years):: 3

Lamp Power(W):: 36

Lamp Luminous Efficiency(lm/w):: 100

Color Temperature(CCT):: 2700K-6500K

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month CET-131/E 36W led panel 1200x300 big size light

Packaging & Delivery

Packaging Details: 1pc packed in a carton box

Port: Guangzhou

Lead Time:: 20-25days

Product Description

CET-131/E 36W led panel 1200x300 big size light

Model	CET-131/D- 36W	CET-131/E-36W	CET-131/E-48W	CET-131/E-60W	CET-131/F-60W	CET-131/F- 72W
Lamp Size	150x1200mm or 150x1213mm	295x1195mm or 300x1200mm			595x1195mm or 600x1200mm
LED Chips Quantity	180pcs	180pcs	240pcs	300pcs	300pcs	360pcs
Lamp Power	36W	36W	48W	60W	60W	72W
Lamp Flux	3600LM	3600LM	4800LM	6000LM	6000LM	7200LM
LED Chips Model	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
Lamp Material	AL+ PMMA
Ra	80-85
Power Factor	>0.95
Input Voltage	AC85-265V Or AC165-265V
Body Color	white; Silver;
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 90 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
