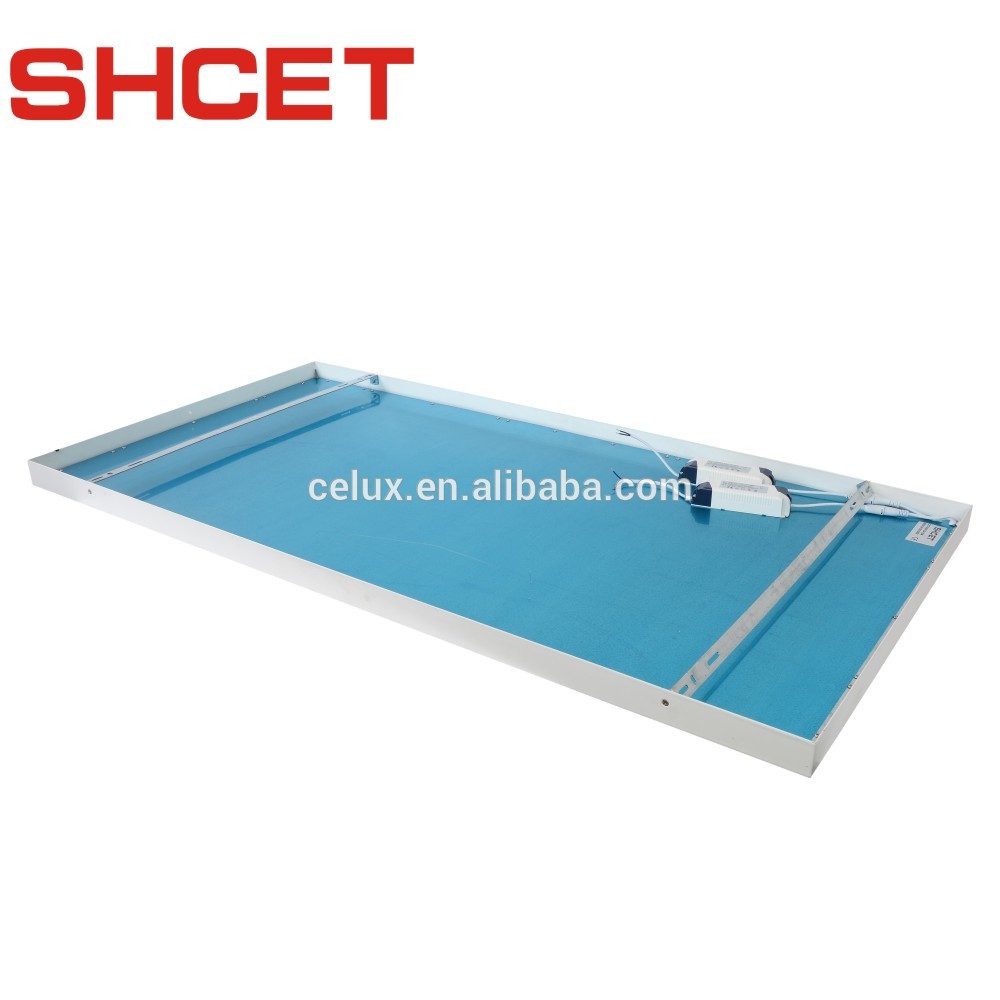

CET-S15120 36W led panel size customized 120x15

Click on the image to view the original image

Product：	views：3CET-S15120 36W led panel size customized 120x15
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 3600

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-S15120-36W

Light Source:: LED

Product name:: CET-S15120 36W led panel size customized 120x15

Power factor:: >0.9

LED driver:: Isolated Diver

Product size:: 150x1200mm

Shape:: Square Shape

Body color:: White

Surger Protector:: 2.5KV

Beam Angle:: 180°

Installation:: Surfaced Mounted

OEM:: Available

Item Type:: Panel Lights

LED Light Source:: SMD4010

Warranty(Years):: 3

Lamp Power(W):: 36

Lamp Luminous Efficiency(lm/w):: 100

Color Temperature(CCT):: 2700K-6500K

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month CET-S15120 36W led panel size customized 120x15

Packaging & Delivery

Packaging Details: 1pc packed in a carton box

Port: Guangzhou

Lead Time:: 20-25days

Product Description

CET-S15120 36W led panel size customized 120x15

Model	CET-S15120- 36W	CET- S30120- 36W	CET- S30120- 48W	CET- S30120- 60W	CET- S30120- 72W	CET- S60120- 60W	CET- S60120- 72W
Lamp Size	150x1200mm	300x1200mm				600x1200mm
LED Chips Quantity	180pcs	180pcs	240pcs	300pcs	360pcs	300pcs	360pcs
Lamp Power	36W	36W	48W	60W	72W	60W	72W
Lamp Flux	3600LM	3600LM	4800LM	6000LM	7200LM	6000LM	7200LM
LED Chips Model	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
Lamp Material	AL+ PMMA
Ra	80-85
Power Factor	>0.95
Input Voltage	AC85-265V Or AC165-265V
Body Color	white; silver
Color Temperature	3000-3500K; 4000-4500K; 6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 90 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

Product Process
