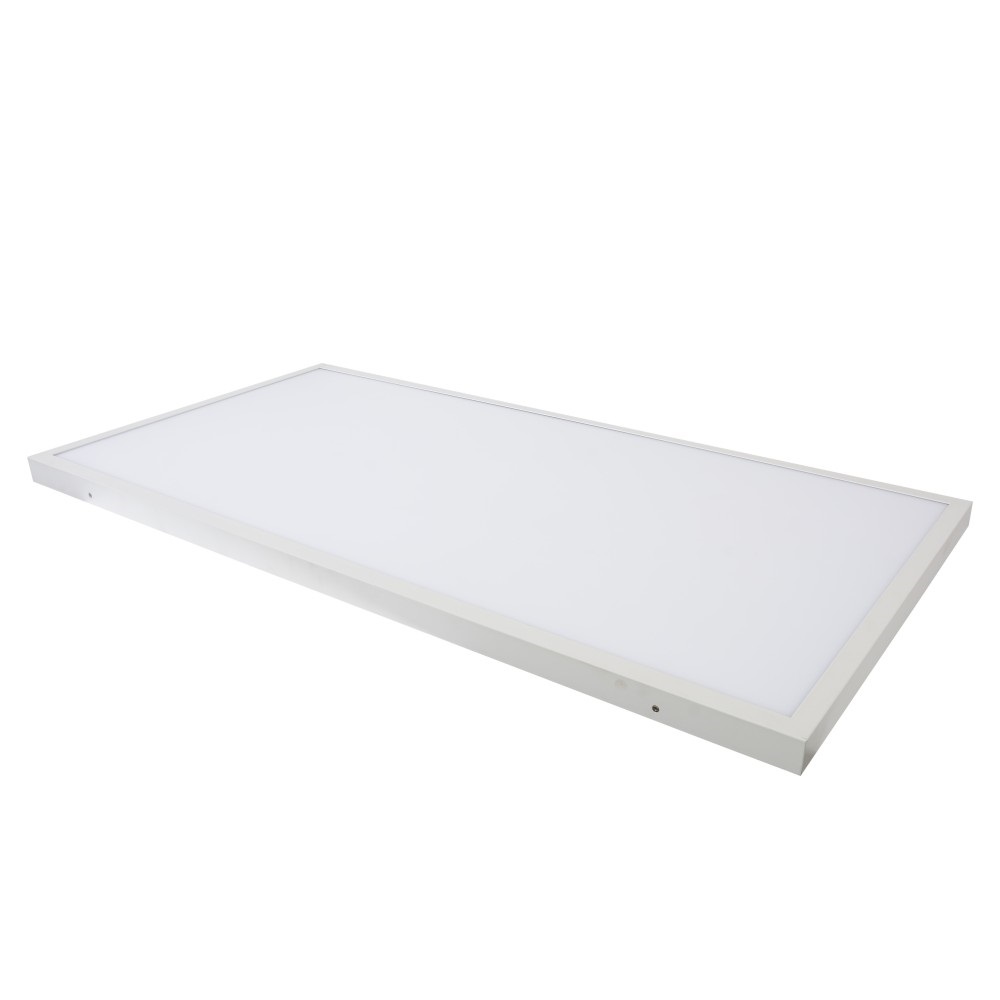

60W Aluminum Surface Mounted 30x120 led flat panel light

Click on the image to view the original image

Product：	views：360W Aluminum Surface Mounted 30x120 led flat panel light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 15:41

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-265V

Lamp Luminous Flux(lm):: 6000

CRI (Ra>):: 80

Working Temperature(℃):: -50 - +75

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP40

Certification:: BV, CE, EMC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-S30120-60W

Light Source:: LED

Product name:: CET-S30120 60W led flat panel housing aluminum 30x120

Power factor:: >0.9

LED driver:: Isolated Diver

Product size:: 300x1200mm

Shape:: Square Shape

Body color:: White

Surger Protector:: 2.5KV

Beam Angle:: 180°

Installation:: Surfaced Mounted

OEM:: Available

Item Type:: Panel Lights

LED Light Source:: SMD4010

Warranty(Years):: 3

Lamp Power(W):: 60

Lamp Luminous Efficiency(lm/w):: 100

Color Temperature(CCT):: 2700K-6500K

Supply Ability

Supply Ability:: 50000 Piece/Pieces per Month CET-S30120 60W led flat panel housing aluminum 30x120

Packaging & Delivery

Packaging Details: 1pc packed in a carton box

Port: Guangzhou

Lead Time:: 20-25days

Product Description

60W Aluminum Surface Mounted 30x120 led flat panel light

Model	CET-S3030-30W	CET-S3060-36W	CET-S6060-36W	CET-S6060-40W	CET-S6060-48W	CET-S6060-60W	CET-S6060-72W
Lamp Size	300x300mm	300x600mm	600x600mm
LED Chips Quantity	60pcs	180pcs	180pcs	200pcs	240pcs	120pcs	180pcs
Lamp Power	30W	36W	36W	40W	48W	60W	72W
Lamp Flux	3000LM	3600LM	3600LM	4000LM	4800LM	6000LM	7200LM
LED Chips Model	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	4010SMD 0.2W	2835SMD 0.5W	2835SMD 0.5W
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
Lamp Material	AL+ PMMA
Ra	80-85
Power Factor	>0.95
Input Voltage	AC85-265V Or AC165-265V
Body Color	white; silver
Color Temperature	3000-3500K; 4000-4500K; 6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 90 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

Product Process
