Home > Products > CET-127S 24W ip65 kitchen led flat panel wall light

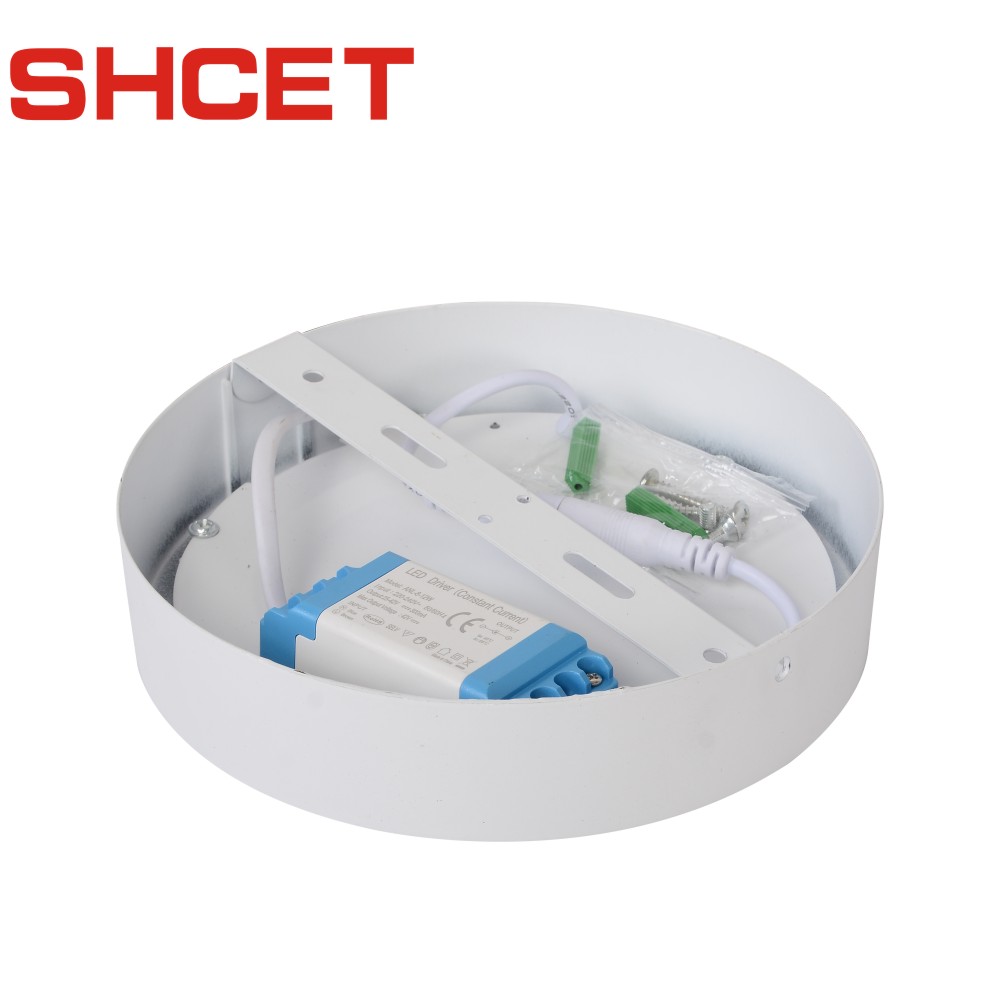

CET-127S 24W ip65 kitchen led flat panel wall light
Click on the image to view the original image
Product: views:19CET-127S 24W ip65 kitchen led flat panel wall light
Branch: SHCET
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:14
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Luminous Flux(lm):
2160
CRI (Ra>):
80
Working Temperature(℃):
-50 - 75
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP40
Certification:
BV, CE, CQC, EMC, LVD, RoHS, VDE
Place of Origin:
Guangdong, China
Brand Name:
SHCET
Model Number:
CET-127S 24W
Light Source:
LED
Product name:
CET-127S 24W ip65 kitchen led flat panel wall light
Power factor:
>0.9
LED driver:
Isolated driver
Product size:
300x300x30mm
Shape:
Round
Surge protect level:
2.5KV
Body color:
white; Silver; Golden; Black; Light Wooden; Dark Wooden
Beam angle:
180 Degree
Installation:
Surface mounted
OEM:
Available
Item Type:
Panel Lights
LED Light Source:
SMD2835
Warranty(Years):
3
Lamp Power(W):
24
Lamp Luminous Efficiency(lm/w):
90
Color Temperature(CCT):
2700-6500K
Supply Ability
Supply Ability:
80000 Unit/Units per Day CET-127S 24W ip65 kitchen led flat panel wall light
Packaging & Delivery
Packaging Details
1PCS/Inner colorful box; then put in master carton box for export standard
Port
FOB Guangzhou
Lead Time:
20-25days
Product Description
 ModelCET-127S-6WCET-127S-12WCET-127S-18WCET-127S-24W
Lamp Diameter Φ120mmΦ170mmΦ225mmΦ300mm
LED Chips Quantity 30pcs60pcs90pcs120pcs
Lamp Power6W12W18W24W
Lamp Flux540LM1080LM1620LM2160LM
Lamp MaterialAL+ PMMA
Shine Angle180°
IP RatingIP40
Surger Protector2.5KV
LED Chips Model2835SMD 0.2W
Ra70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-265V Or AC220-240V
Body Colorwhite;   Silver;   Golden;  Black;  Light Wooden;  Dark Wooden
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
RemarkThe led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV



CET-127S 24W ip65 kitchen led flat panel wall light
 Power: 24W
 Voltage: AC110-265V
 Product size:295x30mm
 LED Chip: SMD2835(0.2W*120PCS)
 LED Strip:(412*2)*6mm
 Light guide plate: 260.5*2.8mm
 Diffusion plate:260.5*1.2mm
 Reflective paper:262.1*0.3mm
 Lamp Body: Aluminum
