1.Product Description

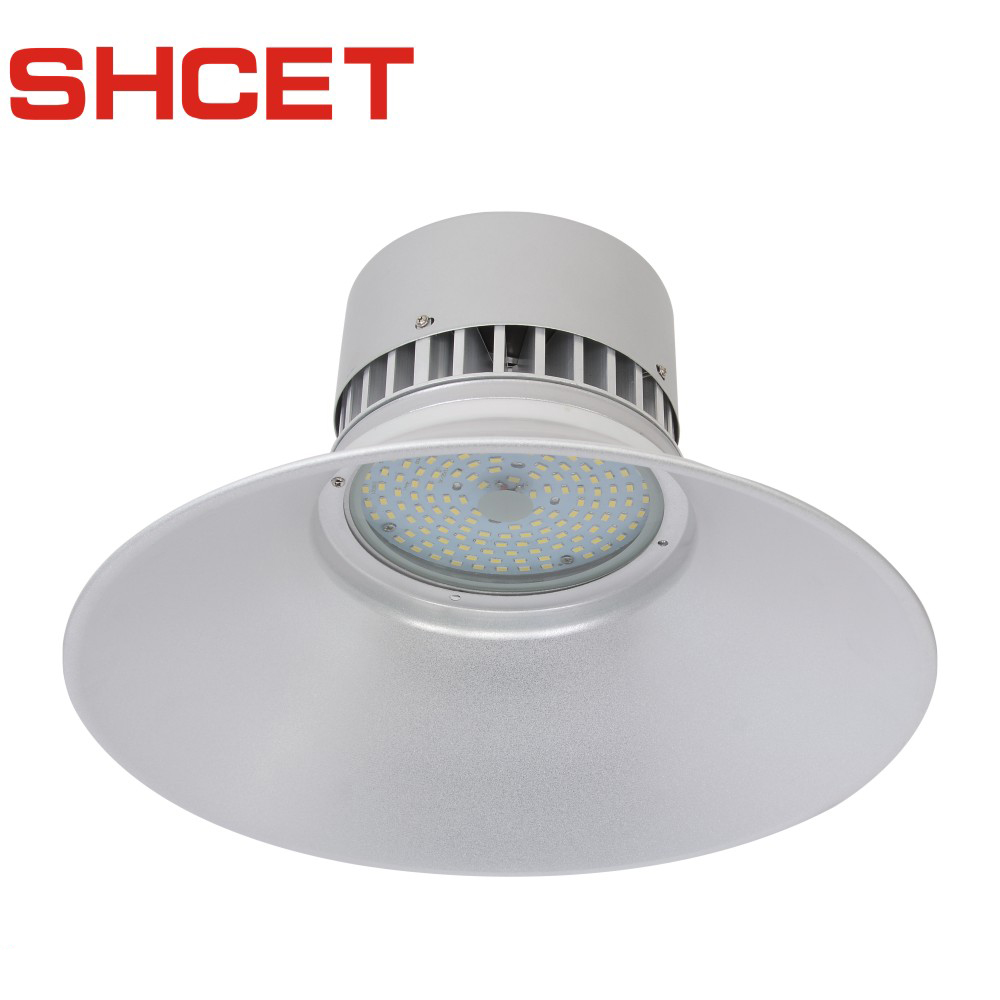

The high bay LED lighting / low bay LED lighting is often used in factories, mines, warehouses and other industrial applications. It uses an SMD light source and COB integral light source, thus meeting different customer requirements.
2.Specification
Model | CET-117A-50W | CET-117A-80W | CET-117A-100W |
Lamp Power | 1x50W | 1x80W | 1x100W |
Lamp Flux | 5000LM | 8000LM | 10000LM |
Material | Die-Alu+Lens | ||
Power Factor | >0.9 | ||
Shine angle | 120° or 90° | ||
Color Temperature | 3000-3500K/4000-4500K/6000-6500K | ||
IP Grade | IP40 | ||
CRI | Ra>70 | ||
Life Time | 50000H | ||
Surger Protector | 4KV-6KV-10KV | ||
Input Voltage | AC85-277V or AC165-265V | ||
Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA | ||
| Model | CET-119A-120W | CET-119A-150W | CET-119A-180W | CET-119A-200W | CET-119A-250W | CET-119A-300W | CET-119A-350W |
| Lamp Power | 3x40W | 3x50W | 3x60W | 4x50W | 5x50W | 6x50W | 7x50W |
| Lamp Flux | 12000LM | 15000LM | 18000LM | 20000LM | 25000LM | 30000LM | 35000LM |
| Material | Die-Alu+Lens | ||||||
| Power Factor | >0.9 | ||||||
| Shine angle | 120° or 90° | ||||||
| Color Temperature | 3000-3500K/4000-4500K/6000-6500K | ||||||
| IP Grade | IP40 | ||||||
| CRI | Ra>70 | ||||||
| Life Time | 50000H | ||||||
| Surger Protector | 4KV-6KV-10KV | ||||||
| Input Voltage | AC85-277V or AC165-265V | ||||||
| Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA | ||||||
Model | CET-120A-50W SMD | CET-120A-80W SMD | CET-120A-100W SMD | CET-120A-150W SMD | CET-120A-200W SMD |
Lamp Power | 50W | 80W | 100W | 150W | 200W |
Lamp Flux | 5000LM | 8000LM | 10000LM | 15000LM | 20000LM |
Material | Die-Alu+Lens | ||||
Power Factor | >0.9 | ||||
Shine angle | 120° or 90° | ||||
Color Temperature | 3000-3500K/4000-4500K/6000-6500K | ||||
IP Grade | IP40 | ||||
CRI | Ra>70 | ||||
Life Time | 50000H | ||||
Surger Protector | 4KV-6KV-10KV | ||||
Input Voltage | AC85-277V or AC165-265V | ||||
Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA | ||||
Model | CET-121-50W UFO | CET-121-100W UFO | CET-121-150W UFO | CET-121-200W UFO | CET-121-240W UFO |
Lamp Power | 50W | 100W | 150W | 200W | 240W |
Lamp Flux | 5000LM | 10000LM | 15000LM | 20000LM | 24000LM |
Material | Die-Alu+Lens | ||||
Power Factor | >0.9 | ||||
Shine angle | 120° or 90° or 60° | ||||
Color Temperature | 3000-3500K/4000-4500K/6000-6500K | ||||
IP Grade | IP65 | ||||
CRI | Ra>70 | ||||
Life Time | 50000H | ||||
Surger Protector | 4KV-6KV-10KV | ||||
Input Voltage | AC85-277V or AC165-265V | ||||
Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA | ||||
Model | CET-116-100W SMD | CET-116-150W SMD | CET-116-200W SMD |
Lamp Power | 100W | 150W | 200W |
Lamp Flux | 12000LM | 18000LM | 24000LM |
Product size | φ270mm | φ310mm | φ350mm |
LED chips QTY | 140PCS | 210PCS | 280PCS |
LED chips Type | 3030/2835SMD 1W | 3030/2835SMD 1W | 3030/2835SMD 1W |
Material | Die-casting aluminume+lens | ||
Power Factor | >0.9 | ||
Shine angle | 90° or 120° | ||
Color Temperature | 3000-3500K/4000-4500K/6000-6500K | ||
IP Grade | IP65 | ||
CRI | Ra>70 | ||
Life Time | 50000H | ||
Surger Protector | 4KV-6KV-10KV | ||
Input Voltage | AC85-305V | ||
Certificate | BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001 | ||
3.Features
1.The life span of high bay LED lighting / low bay LED lighting is more than 50,000 hours, which is more than 10 times longer than traditional light sources.
2.The LED light is environmentally friendly, as it does not contain any Pb or Hg elements.
3.The LED light has a high color rendering index of more than 70. This ensures the object color is brighter under LED light illumination.
4.The light uses an IC waterproof power supply, with dimming and timing functions. The LED lighting is safe and reliable, with an operation period of about 3-7 years at a temperature range of -35℃~ +60℃.
5.The high bay/low bay LED lighting features a die cast aluminum housing, which features an excellent heat dissipation that will extend the LED lighting service life.
4.Installation Guide
1.Insert the power supply leads of the lighting fixture into the hook, then screw the hook into the light fixture.
2.Install the lampshade.
3.Fix the hook on the roof, one end of the chain is connected with the hook, and the other end is used to connect with the LED light.
4.The positive pole and negative pole can not be connected wrongly when connecting the LED light to the power cord, the red stands for positive pole, the blue stands for negative pole and the yellow one can be connected or not connected.
5.Let the power on.
5.More Products
6.Application
High Bay light is often used in production areas such as factories, mines, warehouses and high shed.
7.Packaging&Shipping
8.Certificate
9.FAQ
Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.
Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send
you new free quantity together with next order.
Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen
Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give
delay payment.
