Home > Products > Hot Selling 2x4 LED Ceiling Panel Light with High Performance

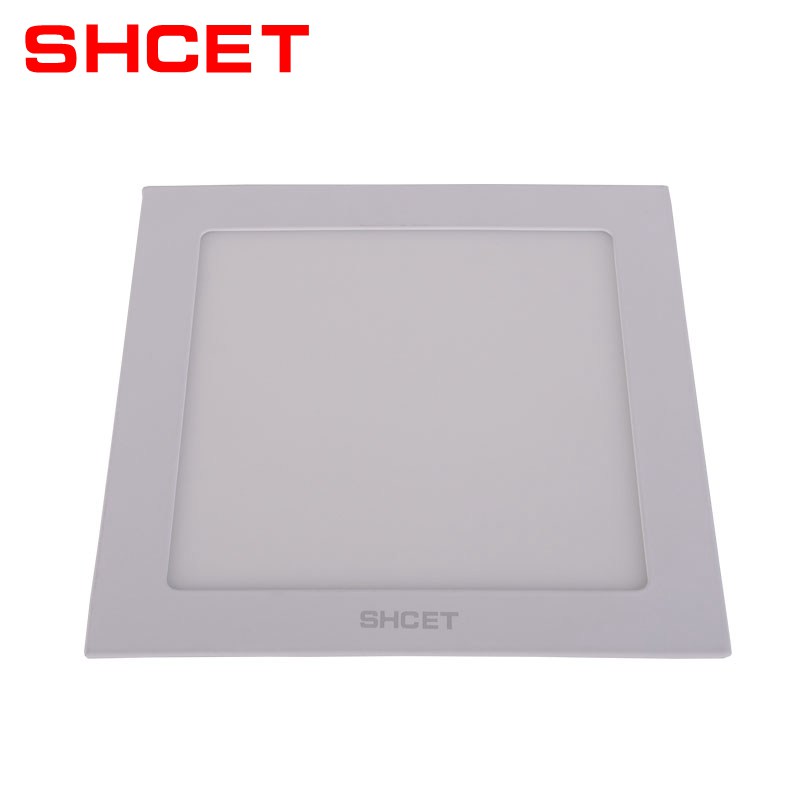

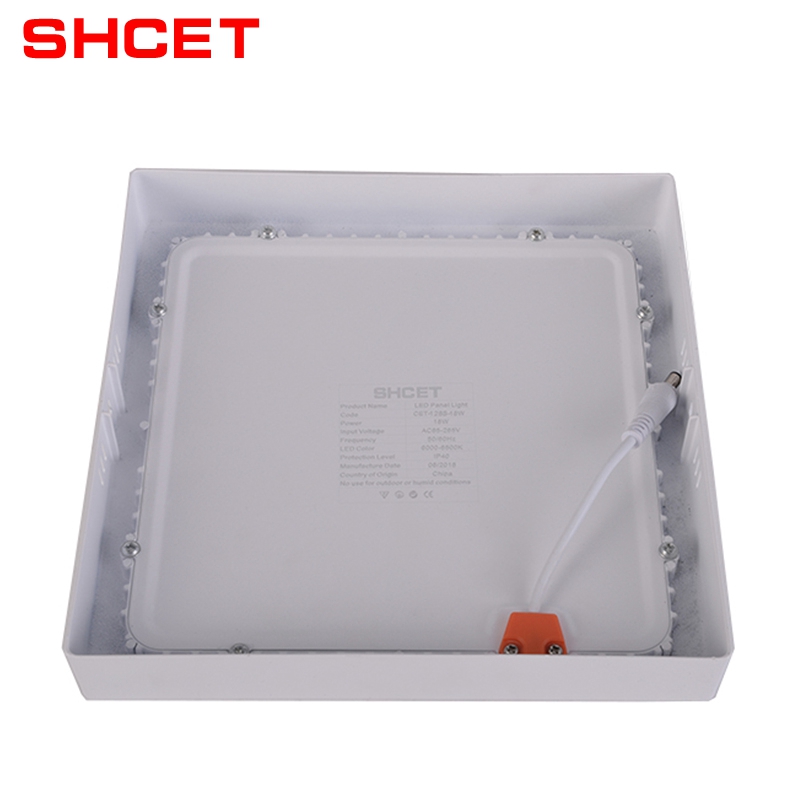

Hot Selling 2x4 LED Ceiling Panel Light with High Performance
Click on the image to view the original image
Product: views:2Hot Selling 2x4 LED Ceiling Panel Light with High Performance
Branch: SHCET
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:22
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-277V Or AC165-265V
Lamp Luminous Flux(lm):
270~7200
CRI (Ra>):
70
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum+PMMA
IP Rating:
IP40
Certification:
CE, EMC, LVD, RoHS, SASO
Place of Origin:
Guangdong, China
Brand Name:
SHCET
Model Number:
CET-127--CET-128
Application:
WAREHOUSE/OFFICE/HOTEL/ETC
Light Source:
LED
Product Name:
led panel light
Color Temperature(CCT):
3000K-6500K
Lamp Luminous Efficiency(lm/w):
90~100
Body Color:
White;Sliver;Gloden;Black;Light Wooden;Dark Wooden
Shape:
round or square
Lamp Power:
3W-24W
Beam Angle:
180 Degree
PF:
0.6-0.7 OR 0.9-0.97
Working Lifetime:
30000
Item Type:
Panel Lights
LED Light Source:
2835SMD
Warranty(Years):
3
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pcs/inner colorful box; 50pcs/standard export carton box
Port
Guangzhou

1.Product Description

These LED ceiling light fixtures produced by SHCET adopt a backlit design technique, and this light technology is a new type of energy saving lighting. The LED ceiling light fixture features good color consistency, multi-color temperature, high luminance, long use age, energy saving and environmental, thus ensuring LED ceiling light fixture can replace traditional lighting systems. The LED ceiling light fixture can be widely used in hotels, offices, residences and conference rooms. The LED ceiling light fixture is made of a shell body, light source, light guide plate, diffuser plate and reflective sheeting. The light strip is around the shell body and aids the light to have special lighting effect.





2.Specification

Model

 Power

 Body Size

 Hole Size

 Net Weight

 Light Source

 Number of Beads

 Lamp Belt Size

 CET-127

(Round Recessed)

 3W

 Φ85mm

 75mm

 27g

 2835SMD

 15LED

 173mm

 4W

 Φ105mm

 90mm

 34g

 2835SMD

 20LED

 248mm

 6W

 Φ120mm

 100mm

 41g

 2835SMD

 30LED

 286mm

 9W

 Φ145mm

 125mm

 50g

 2835SMD

 45LED

 363mm

 12W

 Φ170mm

 150mm

 57g

 2835SMD

 60LED

 435mm

 15W

 Φ190mm

 180mm

 68g

 2835SMD

 75LED

 500mm

 18W

 Φ225mm

 205mm

 90g

 2835SMD

 90LED

 590mm

 24W

 Φ300mm

 280mm

 119g

 2835SMD

 120LED

 412mm*2



Model

 Power

 Body Size

 Net Weight

 Light Source

 Number of Beads

 Lamp Belt Size

 CET-127S

(Round Surface)

 6W

 Φ120mmx32

 67g

 2835SMD

 30LED

 286mm

 12W

 Φ170mmx32

 95g

 2835SMD

 60LED

 435mm

 18W

 Φ220mmx32

 130g

 2835SMD

 90LED

 590mm

 24W

 Φ300mmx32

 185g

 2835SMD

 120LED

 412mm*2



Model

 Power

 Body Size

 Hole Size

 Net Weight

 Light Source

 Number of Beads

 Lamp Belt Size

 CET-128

(Square Recessed)

 3W

 85x85mm

 75mm

 32g

 2835SMD

 15LED

 208mm

 4W

 105x105mm

 90mm

 40g

 2835SMD

 20LED

 289mm

 6W

 120x120mm

 100mm

 52g

 2835SMD

 30LED

 331mm

 9W

 145x145mm

 125mm

 60g

 2835SMD

 45LED

 445mm

 12W

 170x170mm

 150mm

 77g

 2835SMD

 60LED

 522mm

 15W

 190x190mm

 180mm

 85g

 2835SMD

 75LED

 610mm

 18W

 225x225mm

 205mm

 112g

 2835SMD

 90LED

 726mm

 24W

 300x300mm

 280mm

 170g

 2835SMD

 120LED

 507mm*2



Model

 Power

 Body Size

 Net Weight

 Light Source

 Number of Beads

 Lamp Belt Size

CET-128S      (Square Surface)

 6W

 120x120x32 mm

 83g

 2835SMD

 30LED

 331mm

 12W

 170x170x32 mm

 118g

 2835SMD

 60LED

 522mm

 18W

 220x220x32 mm

 175g

 2835SMD

 90LED

 726mm

 24W

 300x300x32 mm

 260g

 2835SMD

 120LED

 507mm*2





3.Features

1.The light body adopts the aluminum housing with good quality and the integrated ultrathin design to guarantee the better heat dissipation.

2.The LED ceiling light fixture adopts the high quality 2835SMD chips, and the lamp flux of single chip reaches the 28-30LM, thus can guarantee the high light effect.

3.The LED ceiling light adopts the IC( integrated circuit) constant current LED driver, ensuring the security when the LED light is being used.





4.Details



Application of light color:

1.The cold light:also called white light,its color temperature in the 5300K above;normally produce by 6000K-6500K;this kind of color have a bright feeling,make people focus,apply to the office,meeting room,classroom,drawing room,reading room,exhibition window,etc.

2.The natural light:also called natural white,its color temperature in the range of 3800K-5300K;normally produce by 4000K-4500K;this kind of color is soft,make the people pleasant,comfortable and serene,apply to store,hospital,office hotel,waiting room,etc.

3.The warm white:also called the yellow light,warm light color temperature below 3500K;normally produce by 3000K-3500K;warm light is similar to the light of incandescent lamp,to provide people a warm,health,comfortable feeling,and is suitable for families,residential,hotels,etc.



5.More Products





6.Application

LED panel lights are widely used and have replaced the trend of grille lamps; LED panel lights are mainly used in:

1.ceiling (instead of the original grid lamp)

2.walls (not only for lighting purposes, but also for artistic expression)

3.installation body (pursuit of practical and artistic combination, convenient and simple installation)

4.other (can also be used elsewhere, such as train carriages or large mobile cars, counters, etc.)





7.Packaging&Shipping





8.Certificate





9.FAQ

Q1: Can I have a sample for testing?

A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?

A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q4: Do you have inspection procedures for products?

A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory.Here is our factory address:  #7 Tongyi Industrial Area, Zhongshan City, Guzhen.Our factory is near Guangzhou airport, and we can pick you up in the airport,   Hotel booking service is available.

Q6: How about delivery time of the order?

A: 15-20 days after getting deposit.

Q7: How about payment terms?

A:  20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
