factory price energy saving constant voltage dimmable 3w 9w 18w led panel light
Click on the image to view the original image
Product: views:2factory price energy saving constant voltage dimmable 3w 9w 18w led panel light
Branch: SHCET
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:23
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-277V Or AC165-265V
Lamp Luminous Flux(lm):
270~7200
CRI (Ra>):
70
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Aluminum+PMMA
IP Rating:
IP40
Certification:
CE, EMC, LVD, RoHS, SASO
Place of Origin:
Guangdong, China
Brand Name:
SHCET
Model Number:
CET-127--CET-S15120
Application:
WAREHOUSE/OFFICE/HOTEL/ETC
Light Source:
LED
Product Name:
led panel light
Color Temperature(CCT):
3000K-6500K
Lamp Luminous Efficiency(lm/w):
90~100
Body Color:
White;Sliver;Gloden;Black;Light Wooden;Dark Wooden
Shape:
round or square
Lamp Power:
3W-72W
Beam Angle:
180 Degree
PF:
0.6-0.7 OR 0.9-0.97
Working Lifetime:
30000
Item Type:
Panel Lights
LED Light Source:
2835SMD/4010SMD
Warranty(Years):
3
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pcs/inner colorful box; 50pcs/standard export carton box
Port
Guangzhou

1.Product Description

These LED ceiling light fixtures produced by SHCET adopt a backlit design technique, and this light technology is a new type of energy saving lighting. The LED ceiling light fixture features good color consistency, multi-color temperature, high luminance, long use age, energy saving and environmental, thus ensuring LED ceiling light fixture can replace traditional lighting systems. The LED ceiling light fixture can be widely used in hotels, offices, residences and conference rooms. The LED ceiling light fixture is made of a shell body, light source, light guide plate, diffuser plate and reflective sheeting. The light strip is around the shell body and aids the light to have special lighting effect.



2.Specification

Slim Round LED Panel Light

ModelCET-127-3WCET-127-4WCET-127-6WCET-127-9WCET-127-12WCET-127-15WCET-127-18WCET-127-24W
Lamp Power3W4W6W9W12W15W18W24W
LED Chips Qty 15pcs20pcs30pcs45pcs60pcs75pcs90pcs120pcs
ModelCET-127-5W/CET-127-8WCET-127-12WCET-127-15W/CET-127-20WCET-127-30W
Lamp Power5W/8W12W15W/20W30W
LED Chips Qty 25pcs/40pcs60pcs75pcs/100pcs150pcs
Lamp Diameter Φ85mmΦ105mmΦ120mmΦ145mmΦ170mmΦ190mmΦ225mmΦ300mm
Cut Out Size75mm95mm100mm125mm150mm180mm205mm280mm
Lamp MaterialAluminum+ PMMA  Or  Aluminum + PS
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;   Silver;   Golden;  Black;  Light Wooden;  Dark Wooden
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
RemarkThe led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001







Surface Round LED Panel Light

ModelCET-127S-6WCET-127S-12WCET-127S-18WCET-127S-24W
Lamp Power6W12W18W24W
LED Chips Qty30pcs60pcs90pcs120pcs
ModelCET-127S-8WCET-127S-15WCET-127S-20WCET-127S-30W
Lamp Power8W15W20W30W
LED Chips Qty40pcs75pcs100pcs150pcs
Lamp Diameter Φ120mmΦ170mmΦ220mmΦ300mm
Lamp MaterialAluminum+ PMMA  Or  Aluminum + PS
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;   Silver;   Golden;  Black;  Light Wooden;  Dark Wooden
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
RemarkThe led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001









 Slim Sqaure LED Panel Light

ModelCET-128-3WCET-128-4WCET-128-6WCET-128-9WCET-128-12WCET-128-15WCET-128-18WCET-128-24W
Lamp Diameter 85*85mm105*105mm120*120mm145*145mm170*170mm190*190mm225*225mm300*300mm
Cut Out Size75mm95mm100mm125mm150mm180mm205mm280mm
LED Chips Quantity 15pcs20pcs30pcs45pcs60pcs75pcs90pcs120pcs
Lamp Power3W4W6W9W12W15W18W24W
Lamp Flux270LM360LM540LM810LM1080LM1350LM1620LM2160LM
Lamp MaterialAL+ PMMA
Shine Angle180°
IP RatingIP40
Surger Protector2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;   Silver;   Golden;  Black;  Light Wooden;  Dark Wooden
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
RemarkThe led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery









Surface Square LED Panel Light

ModelCET-128S-6WCET-128S-12WCET-128S-18WCET-128S-24W
Lamp Power6W12W18W24W
LED Chips Qty30pcs60pcs90pcs120pcs
Lamp Diameter 120*120mm170*170mm220*220mm300*300mm
Lamp MaterialAluminum+ PMMA  Or  Aluminum + PS
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;   Silver;   Golden;  Black;  Light Wooden;  Dark Wooden
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
RemarkThe led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001







Plastic Round LED Panel Light

ModelCET-132-6WCET-132-12WCET-132-18WCET-132-24W
Lamp Power6W12W18W24W
Lamp Diameter  Φ118mm Φ143mm Φ168mm Φ218mm
Cut Out Size100mm125mm150mm200mm
Lamp MaterialPlastic cladding aluminum
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V
Body Colorwhite;
Color Temperature3000-3500K; 4000-4500K; 6000-6500K;
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
PC Surface Frame:
ModelCET-132S-6WCET-132S-12WCET-132S-18WCET-132S-24W
Lamp Power6W12W18W24W
Lamp Diameter  Φ120mm Φ145mm Φ170mm Φ220mm







Plastic Square LED Panel Light

ModelCET-133-6WCET-133-12WCET-133-18WCET-133-24W
Lamp Power6W12W18W24W
Lamp Diameter 118x118mm143x143mm168x168mm218x218mm
Cut Out Size100x100mm125x125mm150x150mm200x200mm
Lamp MaterialPlastic cladding aluminum
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V
Body Colorwhite;
Color Temperature3000-3500K; 4000-4500K; 6000-6500K;
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
PC Surface Frame:
 ModelCET-133S-6WCET-133S-12WCET-133S-18WCET-133S-24W
Lamp Power6W12W18W24W
Lamp Diameter 120x120mm145x145mm170x170mm220x220mm









Rimless Surface Round LED Panel Light

ModelCET-129R-16WCET-129R-24WCET-129R-30WCET-129R-48W
Lamp Power16W24W30W48W
LED Chips Qty90pcs168pcs240pcs240pcs
Lamp Diameter  Φ120mm Φ175mm Φ225mm Φ300mm
Lamp MaterialAluminum + PS
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001



Rimless Surface Square LED Panel Light

ModelCET-129S-16WCET-129S-24WCET-129S-30WCET-129S-48W
Lamp Power16W24W30W48W
LED Chips Qty90pcs168pcs240pcs240pcs
Lamp Diameter 120x120mm175x175mm225x225mm300x300mm
Lamp MaterialAluminum + PS
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD 0.2W
CRI70-75 Or 80-85
Power Factor0.6-0.7 Or 0.9-0.97
Input VoltageAC85-277V Or AC165-265V
Body Colorwhite;
Color Temperature3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001







2 In 1 Colorful Slim Round LED Panel Light

ModelCET-130R-6WCET-130R-9WCET-130R-18WCET-130R-24WCET-130R-36W
Lamp Diameter Φ105mmΦ145mmΦ195mmΦ245mmΦ320mm
Cut Out Size75mm105mm155mm210mm280mm
LED Chips Qty30pcs45pcs90pcs120pcs180pcs
Lamp Power3+3W6+3W12+6W18+6W24+12W
Lamp MaterialAluminum + Acrylic
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD
CRI70-75
Power Factor0.6-0.7
Input VoltageAC85-265V Or AC165-265V
Body Colorwhite
Color TemperatureIn the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K;  the side color can choose:  Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

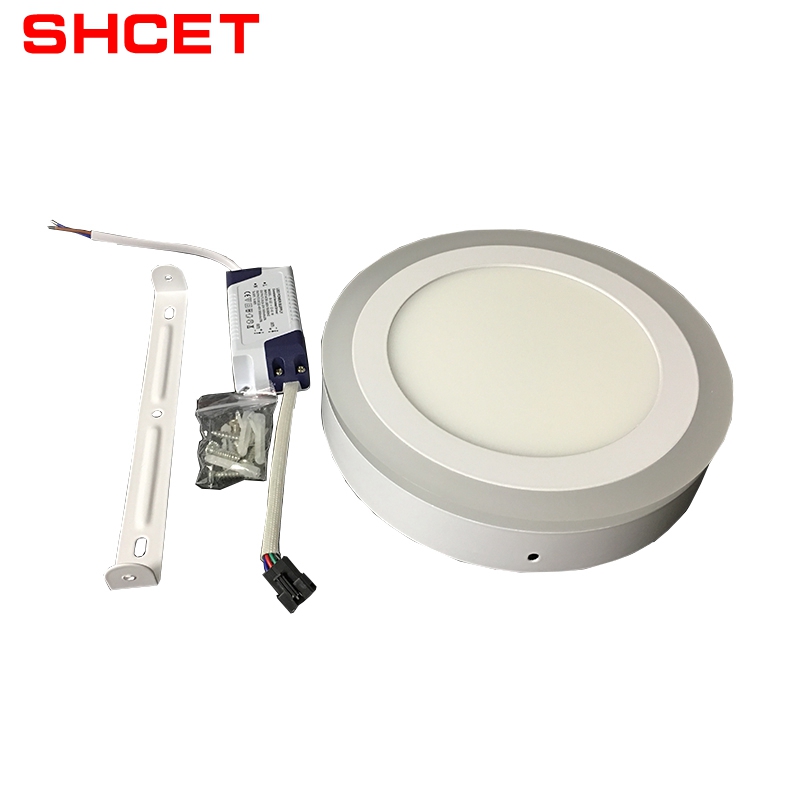

2 In 1 Colorful Surface Round LED Panel Light

ModelCET-130RS-6WCET-130RS-9WCET-130RS-18WCET-130RS-24WCET-130RS-36W
Lamp Diameter Φ105mmΦ145mmΦ195mmΦ245mmΦ320mm
LED Chips Qty30pcs45pcs90pcs120pcs180pcs
Lamp Power3+3W6+3W12+6W18+6W24+12W
Lamp MaterialAluminum + Acrylic
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD
CRI70-75
Power Factor0.6-0.7
Input VoltageAC85-265V Or AC165-265V
Body Colorwhite
Color TemperatureIn the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K;  the side color can choose:  Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

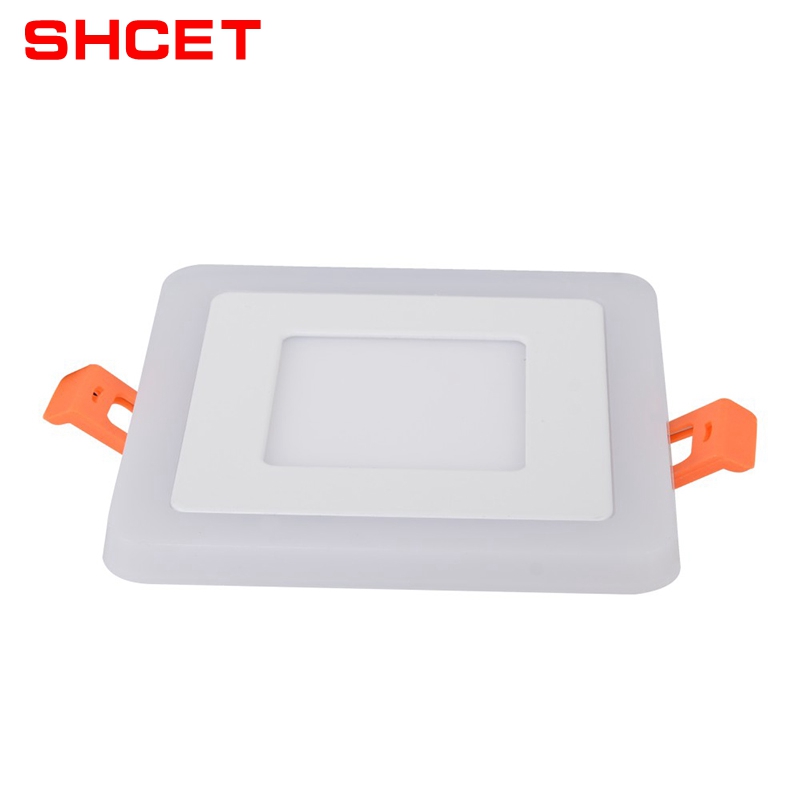

2 In 1 Colorful Slim Square LED Panel Light

ModelCET-130S-6WCET-130S-9WCET-130S-18WCET-130S-24WCET-130S-36W
Lamp Diameter 105*105mm145*145mm195*195mm245*245mm320*320mm
Cut Out Size75mm105mm155mm210mm280mm
LED Chips Qty30pcs45pcs90pcs120pcs180pcs
Lamp Power3+3W6+3W12+6W18+6W24+12W
Lamp MaterialAluminum + Acrylic
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD
CRI70-75
Power Factor0.6-0.7
Input VoltageAC85-265V Or AC165-265V
Body Colorwhite
Color TemperatureIn the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K;   the side color can choose:  Blue; Red; White; Green; Purple; Pink; Orange; Yellow   OR RGB with controller
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001



2 In 1 Colorful Surface Square LED Panel Light

ModelCET-130SS-6WCET-130SS-9WCET-130SS-18WCET-130SS-24WCET-130SS-36W
Lamp Diameter 105*105mm145*145mm195*195mm245*245mmΦ320mm
LED Chips Qty30pcs45pcs90pcs120pcs180pcs
Lamp Power3+3W6+3W12+6W18+6W24+12W
Lamp MaterialAluminum + Acrylic
Shine Angle180°
IP RatingIP40
SPD2.5KV
LED Chips Model2835SMD
CRI70-75
Power Factor0.6-0.7
Input VoltageAC85-265V Or AC165-265V
Body Colorwhite
Color TemperatureIn the middle color can choose:3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red;White;Green;Purple;Pink;Orange;Yellow OR RGB with controller
CertificatesBIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001



3.Features

1.The light body adopts the aluminum housing with good quality and the integrated ultrathin design to guarantee the better heat dissipation.

2.The LED ceiling light fixture adopts the high quality 2835SMD chips, and the lamp flux of single chip reaches the 28-30LM, thus can guarantee the high light effect.

3.The LED ceiling light adopts the IC( integrated circuit) constant current LED driver, ensuring the security when the LED light is being used.





4.Details







5.More Products

6.Application

LED panel lights are widely used and have replaced the trend of grille lamps; LED panel lights are mainly used in:

1.ceiling (instead of the original grid lamp)

2.walls (not only for lighting purposes, but also for artistic expression)

3.installation body (pursuit of practical and artistic combination, convenient and simple installation)

4.other (can also be used elsewhere, such as train carriages or large mobile cars, counters, etc.)





7.Packaging&Shipping&Certification





 8.FAQ

Q1: Can I have a sample for testing?

A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?

A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q4: Do you have inspection procedures for products?

A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory. Here is our factory address:  #7 Tongyi Industrial Area, Zhongshan City, Guzhen

Our factory is near Guangzhou airport, and we can pick you up in the airport,   Hotel booking service is available.

Q6: How about delivery time of the order?

A: 15-20 days after getting deposit.

Q7: How about payment terms?

A:  20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
