bis approved background high efficient led downlight panel light

Click on the image to view the original image

Product：	views：2bis approved background high efficient led downlight panel light
Branch：	SHCET
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:23

Product Details

Overview

Quick Details

Input Voltage(V):: AC85-277V Or AC165-265V

Lamp Luminous Flux(lm):: 270~7200

CRI (Ra>):: 70

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 30000

Lamp Body Material:: Aluminum+PMMA

IP Rating:: IP40

Certification:: CE, EMC, LVD, RoHS, SASO

Place of Origin:: Guangdong, China

Brand Name:: SHCET

Model Number:: CET-127--CET-S15120

Application:: WAREHOUSE/OFFICE/HOTEL/ETC

Light Source:: LED

Product Name:: led panel light

Color Temperature(CCT):: 3000K-6500K

Lamp Luminous Efficiency(lm/w):: 90~100

Body Color:: White;Sliver;Gloden;Black;Light Wooden;Dark Wooden

Shape:: round or square

Lamp Power:: 3W-72W

Beam Angle:: 180 Degree

PF:: 0.6-0.7 OR 0.9-0.97

Working Lifetime:: 30000

LED Light Source:: 2835SMD/4010SMD

Warranty(Years):: 3

Supply Ability

Supply Ability:: 30000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 1pcs/inner colorful box; 50pcs/standard export carton box

Port: Guangzhou

1.Product Description

These LED ceiling light fixtures produced by SHCET adopt a backlit design technique, and this light technology is a new type of energy saving lighting. The LED ceiling light fixture features good color consistency, multi-color temperature, high luminance, long use age, energy saving and environmental, thus ensuring LED ceiling light fixture can replace traditional lighting systems. The LED ceiling light fixture can be widely used in hotels, offices, residences and conference rooms. The LED ceiling light fixture is made of a shell body, light source, light guide plate, diffuser plate and reflective sheeting. The light strip is around the shell body and aids the light to have special lighting effect.

2.Specification

Slim Round LED Panel Light

Model	CET-127-3W	CET-127-4W	CET-127-6W	CET-127-9W	CET-127-12W	CET-127-15W	CET-127-18W	CET-127-24W
Lamp Power	3W	4W	6W	9W	12W	15W	18W	24W
LED Chips Qty	15pcs	20pcs	30pcs	45pcs	60pcs	75pcs	90pcs	120pcs
Model	CET-127-5W	/	CET-127-8W	CET-127-12W	CET-127-15W	/	CET-127-20W	CET-127-30W
Lamp Power	5W	/	8W	12W	15W	/	20W	30W
LED Chips Qty	25pcs	/	40pcs	60pcs	75pcs	/	100pcs	150pcs
Lamp Diameter	Φ85mm	Φ105mm	Φ120mm	Φ145mm	Φ170mm	Φ190mm	Φ225mm	Φ300mm
Cut Out Size	75mm	95mm	100mm	125mm	150mm	180mm	205mm	280mm
Lamp Material	Aluminum+ PMMA Or Aluminum + PS
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

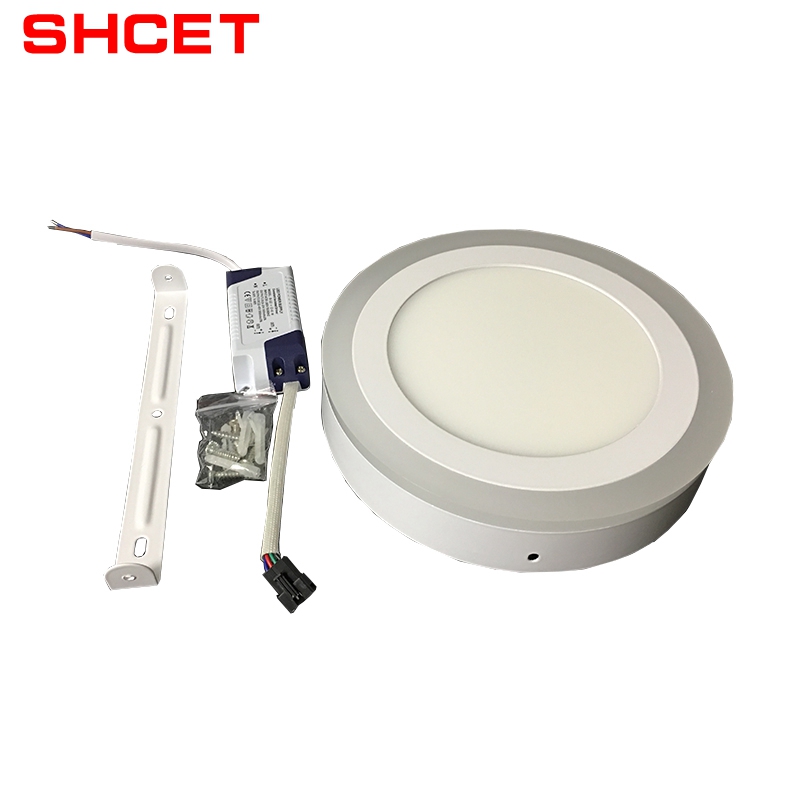

Surface Round LED Panel Light

Model	CET-127S-6W	CET-127S-12W	CET-127S-18W	CET-127S-24W
Lamp Power	6W	12W	18W	24W
LED Chips Qty	30pcs	60pcs	90pcs	120pcs
Model	CET-127S-8W	CET-127S-15W	CET-127S-20W	CET-127S-30W
Lamp Power	8W	15W	20W	30W
LED Chips Qty	40pcs	75pcs	100pcs	150pcs
Lamp Diameter	Φ120mm	Φ170mm	Φ220mm	Φ300mm
Lamp Material	Aluminum+ PMMA Or Aluminum + PS
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

Slim Sqaure LED Panel Light

Model	CET-128-3W	CET-128-4W	CET-128-6W	CET-128-9W	CET-128-12W	CET-128-15W	CET-128-18W	CET-128-24W
Lamp Diameter	85*85mm	105*105mm	120*120mm	145*145mm	170*170mm	190*190mm	225*225mm	300*300mm
Cut Out Size	75mm	95mm	100mm	125mm	150mm	180mm	205mm	280mm
LED Chips Quantity	15pcs	20pcs	30pcs	45pcs	60pcs	75pcs	90pcs	120pcs
Lamp Power	3W	4W	6W	9W	12W	15W	18W	24W
Lamp Flux	270LM	360LM	540LM	810LM	1080LM	1350LM	1620LM	2160LM
Lamp Material	AL+ PMMA
Shine Angle	180°
IP Rating	IP40
Surger Protector	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery

Surface Square LED Panel Light

Model	CET-128S-6W	CET-128S-12W	CET-128S-18W	CET-128S-24W
Lamp Power	6W	12W	18W	24W
LED Chips Qty	30pcs	60pcs	90pcs	120pcs
Lamp Diameter	120*120mm	170*170mm	220*220mm	300*300mm
Lamp Material	Aluminum+ PMMA Or Aluminum + PS
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white; Silver; Golden; Black; Light Wooden; Dark Wooden
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Remark	The led driver can be: Non dimmable or Dimmable or with 120 minutes emergency battery
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

Plastic Round LED Panel Light

Model	CET-132-6W	CET-132-12W	CET-132-18W	CET-132-24W
Lamp Power	6W	12W	18W	24W
Lamp Diameter	Φ118mm	Φ143mm	Φ168mm	Φ218mm
Cut Out Size	100mm	125mm	150mm	200mm
Lamp Material	Plastic cladding aluminum
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V
Body Color	white;
Color Temperature	3000-3500K; 4000-4500K; 6000-6500K;
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
PC Surface Frame:
Model	CET-132S-6W	CET-132S-12W	CET-132S-18W	CET-132S-24W
Lamp Power	6W	12W	18W	24W
Lamp Diameter	Φ120mm	Φ145mm	Φ170mm	Φ220mm

Plastic Square LED Panel Light

Model	CET-133-6W	CET-133-12W	CET-133-18W	CET-133-24W
Lamp Power	6W	12W	18W	24W
Lamp Diameter	118x118mm	143x143mm	168x168mm	218x218mm
Cut Out Size	100x100mm	125x125mm	150x150mm	200x200mm
Lamp Material	Plastic cladding aluminum
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V
Body Color	white;
Color Temperature	3000-3500K; 4000-4500K; 6000-6500K;
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001
PC Surface Frame:
Model	CET-133S-6W	CET-133S-12W	CET-133S-18W	CET-133S-24W
Lamp Power	6W	12W	18W	24W
Lamp Diameter	120x120mm	145x145mm	170x170mm	220x220mm

Rimless Surface Round LED Panel Light

Model	CET-129R-16W	CET-129R-24W	CET-129R-30W	CET-129R-48W
Lamp Power	16W	24W	30W	48W
LED Chips Qty	90pcs	168pcs	240pcs	240pcs
Lamp Diameter	Φ120mm	Φ175mm	Φ225mm	Φ300mm
Lamp Material	Aluminum + PS
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white;
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

Rimless Surface Square LED Panel Light

Model	CET-129S-16W	CET-129S-24W	CET-129S-30W	CET-129S-48W
Lamp Power	16W	24W	30W	48W
LED Chips Qty	90pcs	168pcs	240pcs	240pcs
Lamp Diameter	120x120mm	175x175mm	225x225mm	300x300mm
Lamp Material	Aluminum + PS
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD 0.2W
CRI	70-75 Or 80-85
Power Factor	0.6-0.7 Or 0.9-0.97
Input Voltage	AC85-277V Or AC165-265V
Body Color	white;
Color Temperature	3000-3500K; 4000-4500K; 5000-5500K;6000-6500K;
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

2 In 1 Colorful Slim Round LED Panel Light

Model	CET-130R-6W	CET-130R-9W	CET-130R-18W	CET-130R-24W	CET-130R-36W
Lamp Diameter	Φ105mm	Φ145mm	Φ195mm	Φ245mm	Φ320mm
Cut Out Size	75mm	105mm	155mm	210mm	280mm
LED Chips Qty	30pcs	45pcs	90pcs	120pcs	180pcs
Lamp Power	3+3W	6+3W	12+6W	18+6W	24+12W
Lamp Material	Aluminum + Acrylic
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD
CRI	70-75
Power Factor	0.6-0.7
Input Voltage	AC85-265V Or AC165-265V
Body Color	white
Color Temperature	In the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

2 In 1 Colorful Surface Round LED Panel Light

Model	CET-130RS-6W	CET-130RS-9W	CET-130RS-18W	CET-130RS-24W	CET-130RS-36W
Lamp Diameter	Φ105mm	Φ145mm	Φ195mm	Φ245mm	Φ320mm
LED Chips Qty	30pcs	45pcs	90pcs	120pcs	180pcs
Lamp Power	3+3W	6+3W	12+6W	18+6W	24+12W
Lamp Material	Aluminum + Acrylic
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD
CRI	70-75
Power Factor	0.6-0.7
Input Voltage	AC85-265V Or AC165-265V
Body Color	white
Color Temperature	In the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

2 In 1 Colorful Slim Square LED Panel Light

Model	CET-130S-6W	CET-130S-9W	CET-130S-18W	CET-130S-24W	CET-130S-36W
Lamp Diameter	105*105mm	145*145mm	195*195mm	245*245mm	320*320mm
Cut Out Size	75mm	105mm	155mm	210mm	280mm
LED Chips Qty	30pcs	45pcs	90pcs	120pcs	180pcs
Lamp Power	3+3W	6+3W	12+6W	18+6W	24+12W
Lamp Material	Aluminum + Acrylic
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD
CRI	70-75
Power Factor	0.6-0.7
Input Voltage	AC85-265V Or AC165-265V
Body Color	white
Color Temperature	In the middle color can choose: 3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red; White; Green; Purple; Pink; Orange; Yellow OR RGB with controller
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

2 In 1 Colorful Surface Square LED Panel Light

Model	CET-130SS-6W	CET-130SS-9W	CET-130SS-18W	CET-130SS-24W	CET-130SS-36W
Lamp Diameter	105*105mm	145*145mm	195*195mm	245*245mm	Φ320mm
LED Chips Qty	30pcs	45pcs	90pcs	120pcs	180pcs
Lamp Power	3+3W	6+3W	12+6W	18+6W	24+12W
Lamp Material	Aluminum + Acrylic
Shine Angle	180°
IP Rating	IP40
SPD	2.5KV
LED Chips Model	2835SMD
CRI	70-75
Power Factor	0.6-0.7
Input Voltage	AC85-265V Or AC165-265V
Body Color	white
Color Temperature	In the middle color can choose:3000-3500K; 4000-4500K; 6000-6500K; the side color can choose: Blue; Red;White;Green;Purple;Pink;Orange;Yellow OR RGB with controller
Certificates	BIS ,SASO ,LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001

3.Features

1.The light body adopts the aluminum housing with good quality and the integrated ultrathin design to guarantee the better heat dissipation.

2.The LED ceiling light fixture adopts the high quality 2835SMD chips, and the lamp flux of single chip reaches the 28-30LM, thus can guarantee the high light effect.

3.The LED ceiling light adopts the IC( integrated circuit) constant current LED driver, ensuring the security when the LED light is being used.

4.Details

5.More Products

6.Application

LED panel lights are widely used and have replaced the trend of grille lamps; LED panel lights are mainly used in:

1.ceiling (instead of the original grid lamp)

2.walls (not only for lighting purposes, but also for artistic expression)

3.installation body (pursuit of practical and artistic combination, convenient and simple installation)

4.other (can also be used elsewhere, such as train carriages or large mobile cars, counters, etc.)

7.Packaging&Shipping&Certification

8.FAQ

Q1: Can I have a sample for testing?

A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?

A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q4: Do you have inspection procedures for products?

A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory. Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen

Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.

Q6: How about delivery time of the order?

A: 15-20 days after getting deposit.

Q7: How about payment terms?

A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.

9.Contact Us

询价单

total0items Comments

Shanghai CET Electric Co., Ltd.
