high in breaking capacity nh nt series 250vac fuse link for sale
Click on the image to view the original image
Product: views:2high in breaking capacity nh nt series 250vac fuse link for sale
Branch: SHCET
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:23
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
SHCET
Model Number:
NT~RO
Usage:
Low Voltage, Low Voltage
Breaking Capacity:
Low
Safety Standards:
IEC, IEC
Product Name:
dc fuse
Color:
White
Material:
Porcelain
Rated breaking capacity:
High
Rated voltage:
380-690V
Rated current:
1-100A
Certificate:
CE/ISO9001/ROHS
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc/inner box; 5pcs/medium box; then put into standard export master box for dc fuse
Port
Shanghai/Ningbo

1.Product Description

NT low voltage fuse features light in weight,small in size,low in power loss and high in breaking capacity.This product has been widely used in overload and short circuit protection of electric installation.This product conforms to IEC 60269 standards with all of the rating at the world advanced level.

The fuses links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380V AC.with rated current up to 125A against damage due to overload and short circuit.Fuse links with the striker are supplied for the purpose of protecting motors against motor single phasing operation when fitted in fuse isolators.



2.Specification

Fuse Link/Fuse Base

TypeRated CurrentRated voltageFuse Base Current
NTOOC2A,4A6A,10A,16A,20A,25A,32A,36A,40A,50A.63A,80A,100A500V,600V160A
NTO04A,5A,10A,16A,20A,25A,32A,36A,40A,50A,53A,80A,100A,125A,160A500V,600V160A
NTO6A,10A,16A,20A,25A,32A,35A,40A,50A,63A,80A,100A,125A,160A500V,600V160A
NTl80A,100A,125A,160A,200A,224A,250A500V,600V250A
NT2125A,160A,200A,224A,250A,300A,315A,355A,400A500V,600V400A
NT3315A,355A,400A,425A.500A,630A500V,600V630A
NT4800A,1000A380V1000A
Mark: The Above model also can produce as DC Solar Fuse, DC1000V







Cylindrical Fuse Link

ModelRated Current ARated Voltage(V)Dimensions
gGaRφDxL(mm)
RO14RS140.5,1,2,4,6,10,16,20500φp8.5×31.5
RO14ARS14A250φ8.5×23
RO14BRS14B380/500φ8.5×36
RO15RS150.5,1,2,4,6,10,16,20,25,32380/500φ10x38
RO15ARS15A0.5,1,2,4,6,10,16250φ10X25.8
RO15BRS15B0.5,1,2,4,6,10,16,20,25250/500φ10X31.5
RO16RS162,4,6,10,16,20,25,32,40,50,63380/660φ14x51
RO17RS1710,16,20,25,32,40,50,53,80,100,125380/660φ22x58
RO54RS540.5,1,2,4,6,10,16250φ5x20
RO55RS55φ5x25
RO56RS56φ6x20
RO57RS57φ6x25
Mark: The Above model also can produce as DC Solar Fuse, DC1000V

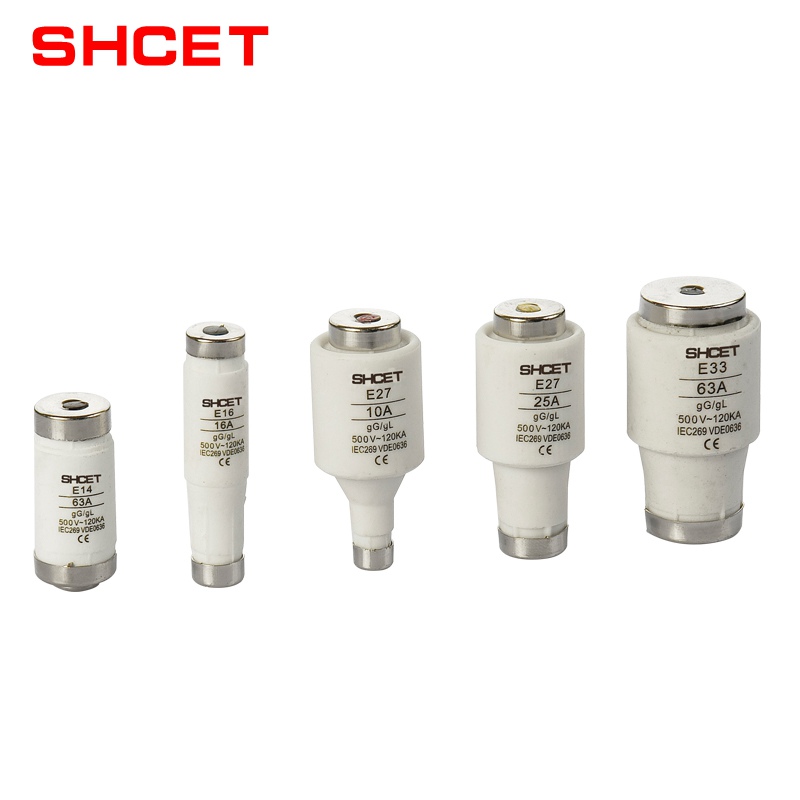

Spiral Fuse Link

ModelRated Current ARated Voltage(V)Dimensions
gGaRφDxL(mm)
RO21RS212,4,5,8,10,13,16,20,25/DII φ22x50
RO22RS2230,35,40,50,63/DIll φ27x50
RO23RS232,4,6,8,10,15,20,25,35,50,63/DIV φ27x70
RO24RS242,4,6,10,16,20,25/DI φ12.5X50
RO26RS262,4,6,10,16/D01 φ10.6×35
20,25,35,50,63/D02 φ15x36
80,100 /D03 φ22x43
Mark: The Above model also can produce as DC Solar Fuse, DC1000V





Fuse Holder

ModelAssorted Fuse CoreRated Voltage(V)Rated Current(A)
RT18-32X 1Pφ10x38380V32A
RT18-32X 2P
RT18-32X 3P
RT18-63X 1Pφ14x51380V63A
RT18-63X 2P
RT18-63X 3P
Mark: The Above model also can produce as DC Solar Fuse, DC1000V



3.Details





4.More Products





5.Shipping





6.Certificate



7.About Us



8.FAQ

Q1: Can I have a sample for testing?

A: Yes, we can offer free sample, but you should afford the shipping cost.

Q2: Can I add my logo on the products?

A: Yes, OEM and ODM are available for us.

Q3: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q4: Do you have inspection procedures for products?

A: our products100% self-inspection and testing before packing.

Q5: Can I have a visit to your factory before the order?

A: Sure, welcome to visit our factory.

Here is our factory address:  #7 Tongyi Industrial Area, Zhongshan City, Guzhen

Our factory is near Guangzhou airport, and we can pick you up in the airport,   Hotel booking service is available.

Q6: How about delivery time of the order?

A: 15-20 days after getting deposit.

Q7: How about payment terms?

A:  20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
