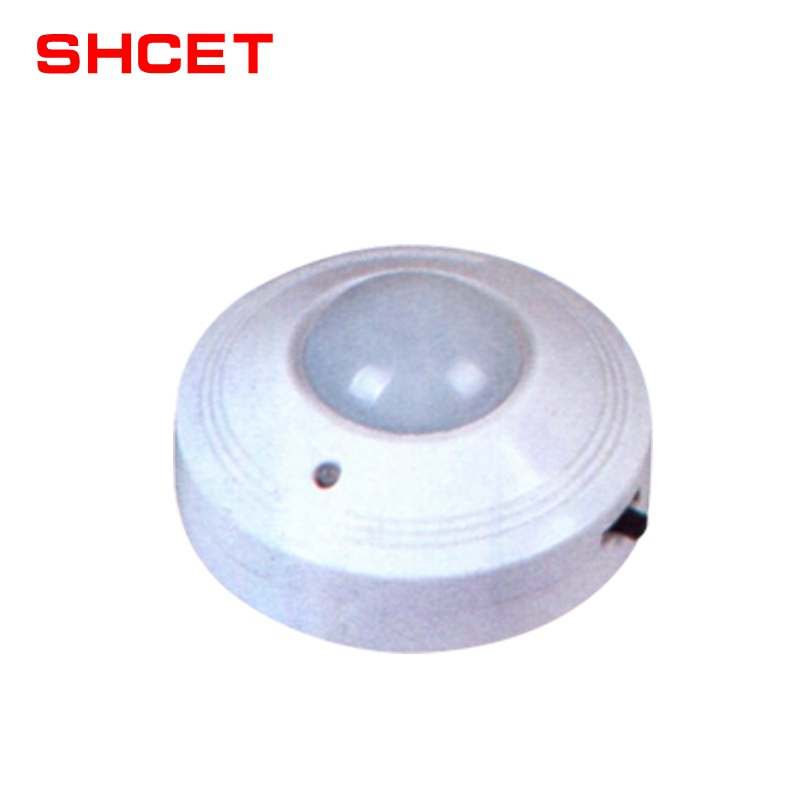

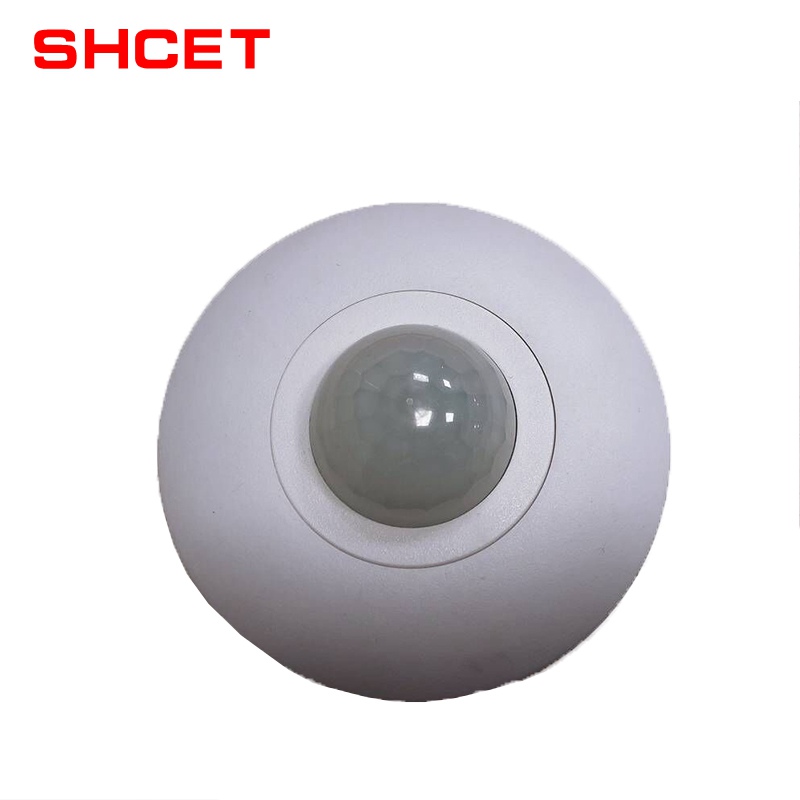

china supplier ultrasonic 24 volt ceiling infrared motion sensor
Click on the image to view the original image
Product: views:2china supplier ultrasonic 24 volt ceiling infrared motion sensor
Branch: SHCET
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 18:23
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
SHCET
Model Number:
CET-ST06~ST03C
Usage:
Other
Theory:
Capacitance Sensor
Output:
Other
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
each one in a paper box,such as color box, white box; can offer customized packing according to the customers' requirements;
Port
Ningbo/Shanghai
Product Description
ST06

Detection Range: 360°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance:3-6m(<24°C ) adjustable (1xdetector)                                     3-12m(<24<>C ) adjustable (3xdetector)

Time Delay: 10sec13sec tO 7mint2min (adjustable)
Ambient Light:<3-2000LUX (adjustable)
Installation Height: 2,2-4m

ST07

Detection Range: 360°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance: max.6m(<24°C)
Time Delay: 10sect3sec to 7mint2min (adjustable) Ambient Light:<3-2000LUX (adjustable)

Installation Height: 2.2-4m

ST08

Detection Range: 180°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance: max.12m(<24°C)
Time Delay: 10sect3sec to 7mint2min (adjustable) Ambient Light: <3-2000LUX (adjustable)

Installation Height: 1.8-2.5m IP44

ST09

Detection Range: 180°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance: max.12m(<24°C)
Time Delay: 10sec + 3sec to 7mint2min (adjustable) Ambient Light:<3-2000LUX (adjustable)

Installation Height: 1.8-2.5m IP44

ST10A

Detection Range: 180°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance: 5-12m(<24°C) adjustable

Time Delay: 10sect3sec to 7mint2min (adjustable) Ambient Light:<3-2000LUX (adjustable)

Installation Height: 1.8-2.5m IP44

ST10B

Detection Range: 180°
Rated Load: Max.1200W(220-240V/AC)

                           300W(220-240V/AC)
Detection Distance: 5-12m(<24°C) adjustable

Time Delay: 10sect3sec t0 7min + 2min (adjustable) Ambient Light: <3-2000LUX (adjustable)

ST20

Detection Range: 120°
Rated Load: Max.1200W(220-240V/AC)

                          300W(220-240V/AC)
Detection Distance: 5-12m(<24°C ) adjustable

Time Delay: 10sect3sec to 7mint2min (adjustable)

Ambient Light: <3-2000LUX (adjustable)

ST22

Detection Range: 120°
Rated Load: Max.1200W(220-240V/AC)

                          300W(220-240V/AC)

Detection Distance: max.10m(<24°C)
Time Delay: 10sect3sec to 7mint2min (adjustable) Ambient Light:<3-2000LUX (adjustable)

ST01B

Detection Range: 160°
Rated Load: Max.1200W(220-240V/AC)
                          300W(220-240V/AC)

Detection Distance: max.9m(< 24°C)
Time Delay: 10sec:t3sec to 7min12min (adjustable) Ambient Light:<3-2000LUX (adjustable)

Installation Height: 1 -1.8m

ST03C

Detection Range: 180°
Rated Load: Max.1200W(220-240V/AC)

                          300W(220-240V/AC)

Detection Distance: max.9m(<24 °C )
Time Delay: 10sect3sec to 7mint2min (adjustable) Ambient Light:<20LUX

Installation Height: 1-1.8m
