- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP019S/F10
- Protection Level:
- IP65/IP67,IK10
- Max. Current:
- 5A
- Max. Voltage:
- 250V
- Installation diameter:
- 19mm
- The Body Material:
- Stainless steel or Copper plated chrom
- Electrical Life:
- 50,000 cycles
- Mechanical Life:
- 100,0000 cycles
- Contact Material:
- Silver Plated Gold
- Operation type:
- Latched or Momentary
- Contact Configuration:
- 1NO/1NO1NC/ 2NO2NC
- The front shape:
- High,Ball,Flat
- Led:
- with LED or not
- Product name:
- Stainless steel push button switch
- Supply Ability:
- 100000 Piece/Pieces per Week Stainless steel push button switch
- Packaging Details
- Stainless steel push button switch Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
- Port
- Ningbo/Shanghai

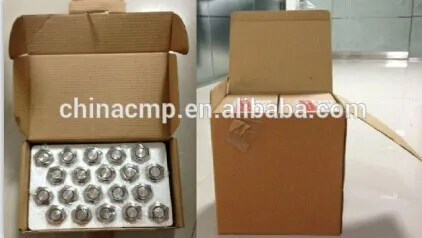

- Picture Example:
![package-img]()
CMP 19mm waterproof IP67 Copper plating or Stainless steel push button switch
stainless steel push button switch
Product Description:
MP19S/F10: 19mm 1NO Momentary Push button Switch
1.Thread Diameter:19mm (or other size ,contact me)
2.Operation type:Momentary (also have latching type)
3.Housing material:Stainless steel (or chromium, aluminum Anodized)
4.Terminal type:Screw terminal or soldering pin
5.Head type:High head,Flat head, Domed head with LED or not
6.Contact material:silver plated gold
7.Contact configuration:1NO (spst switch)
8,Switch rating: 5A/250V AC/DC
9, Mechanical life: 500,000 Cycles, Electrical Life: 200,000Cycles
10, Operating Temp:-20ºC~+55ºC
11,IP65/IP67, high quality
1NO1NC/2NO2NC Stainless steel push button switch:
(1) Our factory is specialized in the production of switch buttons made of stainless steel ,copper plated chromium or plastic.
(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.
(3) You can customize the laser marking and body color.
Stainless steel push button switch
Our company is push button switch and indicator light manufacturer for 10 years. We supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.
1. Installation diameter : There are 10mm 12mm and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series(metal: stainless steel or copper plated chromium,aluminum. and Plastic) button switch.
2. Samples and smaller order as follows:
(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.
(2).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.
3. If your order is up to 1000pcs, we will return the samples’ shipping cost.
Stainless steel push button switch
stainless steel push button switch
Email:cmpswitch66 (at) aliyun.com
We strive to provide excellent customer service. Please feel free to contact me for more pictures or details.We will reply within 24 hours.
