- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP019S/H22
- Protection Level:
- IP67,IK10
- Max. Current:
- 5A
- Max. Voltage:
- 250V AC/DC
- Installation diameter:
- 19mm
- The Body Material:
- Stainless steel or Copper plated chrom
- Electrical Life:
- 200,000 cycles
- Mechanical Life:
- 100,0000 cycles
- Contact Material:
- Silver Plated
- The head:
- Flat,Ball,Convex
- Operation type:
- Momentary or Latching
- Contact configuration:
- 2NO2NC (dpdt metal push button switch)
- The front shape:
- High,Flat,Ball
- Product name:
- dpdt metal push button switch
- Supply Ability:
- 100000 Piece/Pieces per Week dpdt metal push button switch

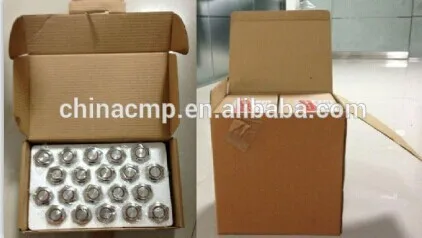

- Packaging Details
- dpdt metal push button switch
Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
- Port
- Ningbo/Shanghai
- Picture Example:
![package-img]()
CMP 19mm Waterproof metal 2NO2NC dpdt metal push button switch
The bottom: 2NO 2NC--6 pins ( double pole double throw dpdt metal push button switch)
We can do the customized laser marking on the button:
dpdt metal push button switch Related:
dpdt metal push button switch
tton switch
Our company is push button switch and indicator light manufacturer for 10 years. We supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.
1. Installation diameter : There are 10mm 12mm and 16mm 19mm 22mm 25mm 28mm 30mm 40mm series(metal: stainless steel or copper plated chromium,aluminum. and Plastic) button switch.
You can customize the laser marking and colorized switch.
2. Samples and smaller order as follows:
(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.
(2).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.
3. If your order is up to 1000pcs, we will return the samples’ shipping cost.
