- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP016S/F11
- Protection Level:
- IP65/IP67,IK10
- Max. Current:
- 3A
- Max. Voltage:
- 250V
- Installation diameter:
- 16mm on off switch waterproof
- The Body Material:
- Stainless steel or Copper plated chrom
- Electrical Life:
- More than 50,000 cycles
- Mechanical Life:
- More than 100,0000 cycles
- Operation type:
- Momentary or Latching
- Contact Material:
- Silver plated gold
- Contact configuration:
- 1NO 1NC(SPDT)
- The front shape:
- flat,high,domed
- Terminal type:
- pin terminal
- IP degree:
- IP65/IP67,IK10
- Supply Ability:
- 10000 Piece/Pieces per Week on off switch waterproof
- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10box/carton
on off switch waterproof
- Port
- Ningbo/Shanghai

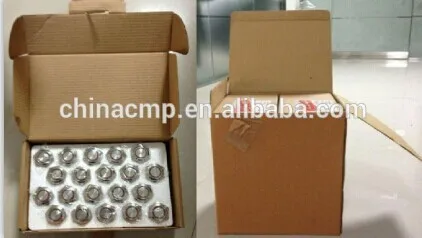

- Picture Example:
![package-img]()
CMP anti-vandal 1NO 1NC stainless steel or copper plating on off switch waterproof
on off switch waterproof
1.Thread Diameter:16mm,Head diameter:16mm
2.Operation type:Momentary or Latching
3.Housing material:Stainless steel/chromium/plastic/Aluminum
4.Terminal type:Pin terminal (5 pins for 1NO1NC type ,4 for 1NO)
5.Head type:High head,Flat head Domed head with LED or not
6,LED color:red,green,white,blue,yellow,orange,bi-color,tri-color
7.Contact configuration:1NO1NC(SPDT), 1NO(SPST)
8,Switch rating: 3A/250V AC/DC
9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles
10, Contact: silver plated gold
11, Operating Temp:-20℃~+55℃
12,IP67IK10, high quality
13,have TUV,CE,ROSH, SGS
ourproducts are widely used in varies types of control desks, control boxes (cabinets), power distribution boxes (cabinets), meter boxes (cabinets), household appliances, security systems, etc.
Our products have achieved TUV,CE and passed SGS test. on off switch waterproof
