- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP16A/F10-E
- Protection Level:
- IP65,IK10
- Max. Current:
- 3A
- Max. Voltage:
- 250V AC
- Suggested panel cutout:
- 16mm
- Surface size:
- 18mm
- Whole size (Length):
- 22.2mm
- Head shape:
- Flat actuator
- Contact:
- Silver plated gold
- Contact configuration:
- 1NO (normally open)
- Operation Tpye:
- Momentary (also have latching type)
- The Crust Material:
- Stainless steel/chromium plated brass/ aluminum plated color
- LED colour:
- Blue,Red,Green,White,Yellow,orange
- Product name:
- led 16mm switch
- Supply Ability:
- 20000 Piece/Pieces per Day led 16mm switch

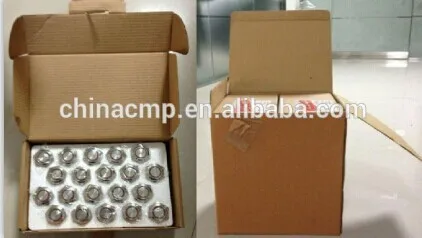

- Packaging Details
- led 16mm switch packaging:
1: Neutral packing : plastic bag for goods + inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packing
3: Carton spec:29*23*32
4: 40pcs/box,10box/carton
- Port
- NingBo /ShangHai/HongKong
- Picture Example:
![package-img]()
led 16mm switch
Product Description:
Product | Push Button switch |
Item | MP16A/F10-E |
Thread Diameter: | 16mm |
Operation type | Momentary |
--- | |
Housing material | Aluminum/Stainless steel/Chrome.... |
Contact configuration | 1NO (spst switch) |
Switch rating | 3A/250V |
Terminal type | 4 screw or 4 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | Flat button with light |
Button color | black, silver , made to order |
LED color | red,green,white,blue,yellow,orange,bi-color |
LED voltage | 2V/6V/12V/24V/220V (made to order) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 2.5-4N |
Operation Travel | About 2.8mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
Normally Open circuit momentary or latching push button led 16mm switch
16mm thread size, momentary illuminated push button
1NO1NC momentary or latching type led 16mm switch
led 16mm switch
led 16mm switch
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10boxes/carton
16mm series switches: led 16mm switch
led 16mm switch
We supply a great variety of push button switches with factory price.Please let me know the parameters of the switch you want,I will recommend the right one for you.
