- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP016S/F11Z-E
- Protection Level:
- IP65/IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250V AC/DC
- Installation diameter:
- 16mm(12mm,19mm 22mm 25mm 28mm 30mm)
- The Body Material:
- Stainless steel or Copper plated chromium,aluminum
- The color of the LED:
- Red, White, Green, Blue ,Orange ,Yellow,bi-color
- The voltage of the LED:
- 3V~250V (made to order)
- Contact material:
- Silver plated gold
- Mechanical Life:
- Maintained:100,0000Momentary:100,0000 Selector/Keylock:250000
- IP degree:
- IP65/IP67IK10
- Contact configuration:
- 1NO1NC
- Product name:
- 16mm illuminated latching switch
- Service:
- offer OEM ODM for 16mm illuminated latching switch
- Supply Ability:
- 50000 Piece/Pieces per Week 16mm illuminated latching switch

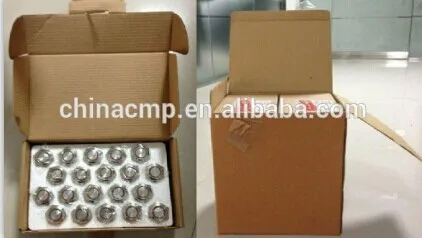

- Packaging Details
- 16mm illuminated latching switch packaging:
inner bubble box(40pcs), inner box, carton(10boxes,400pcs)
Carton dimensions:29cm,23cm,31cm,or by your request.
- Port
- Ningbo/Shanghai
- Picture Example:
![package-img]()
16mm self-lock push switch 16mm led latching push button switch self-locking push button switch 16mm illuminated latching swit
CMP metal 1NO1NC flat ring led push button 16mm illuminated latching switch
with LED or not 16
Product Description:
Product | Push Button switch |
Item | MP16S/F11Z-E |
Thread Diameter: | 16mm |
Operation type | Momentary MP16S/F11-E |
| Latching MP16S/F11Z-E |
Housing material | Stainless steel/Chrome/Nickel plated brass/aluminum/plastic |
Contact configuration | 1NO1NC |
Switch rating | 3A/250V AC/DC |
Terminal type | 5 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | FLAT button with ring light |
Button color | silver or made to order |
LED color | red,green,white,blue,yellow,orange,bi-color,tri-color |
LED voltage | 2V/6V/12V/24V/220V (made to order) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 2.5-4N |
Operation Travel | About 2.5mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
mm illuminated latching switch
RELATED 16MM SWITCHES 16mm self-lock push switch 16mm led latching push button switch self-locking push button switch 16mm illuminated latching switch
16mm self-lock push switch 16mm led latching push button switch self-locking push button switch 16mm illuminated latching switch
16mm self-lock push switch 16mm led latching push button switch self-locking push button switch
1.neutral packing:inner bubble box, inner box, carton,or by your request.
2.modes of transport : according to your requirements.
3.delivery time: Samples and smaller order delivery time 1-3 days.Big order 10-15 days.
4.payment: As we know paypal was quickly payment .T/T and western union payment are better, or based on your request. .
5.feedback: If you have any questions, please feel free to contact me.
Email :cmpswitch66 at 163.com skype: cmpswitch66
We strive to provide excellent customer service. All emails will be answered within 24 hours. If you have any questions, please feel free to contact me.
